System Diagram [06/2018 - 08/2021]

WARNING: This page is about a different car, the 2021 Lexus ES 300h, 2020 Lexus ES 300h, and 2019 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

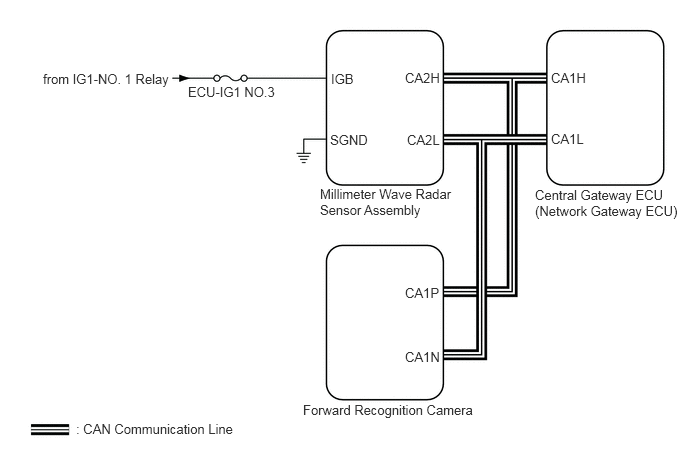

  1. SYSTEM DIAGRAM
    GTY792142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. LOCAL CAN CIRCUIT
    GTY814831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
