Parts Location [06/2018 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

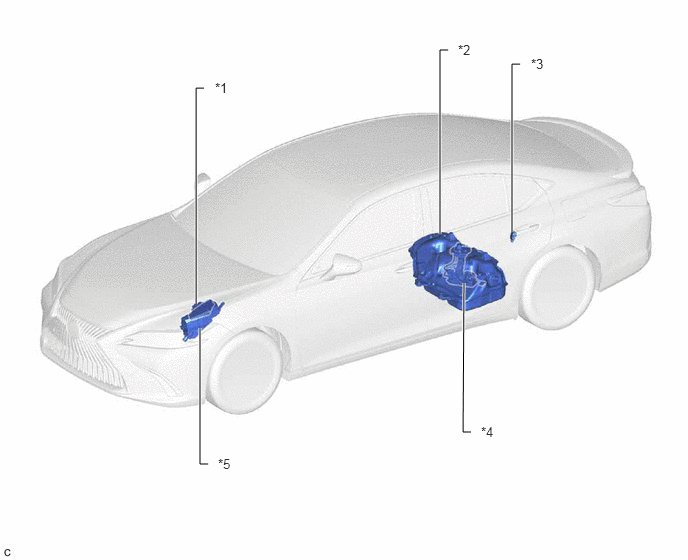

| *1 | ECM | *2 | FUEL TANK ASSEMBLY |
| *3 | FUEL PUMP CONTROL ECU | *4 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - FUEL PUMP (for Low Pressure) - FUEL SENDER GAUGE ASSEMBLY - FUEL MAIN VALVE ASSEMBLY |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK ASSEMBLY AND NO. 1 ENGINE ROOM JUNCTION BLOCK ASSEMBLY - EFI-MAIN NO. 2 RELAY - IG2 NO. 1 RELAY - INJ FUSE |
- | - |
