Parts Location [09/2022 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

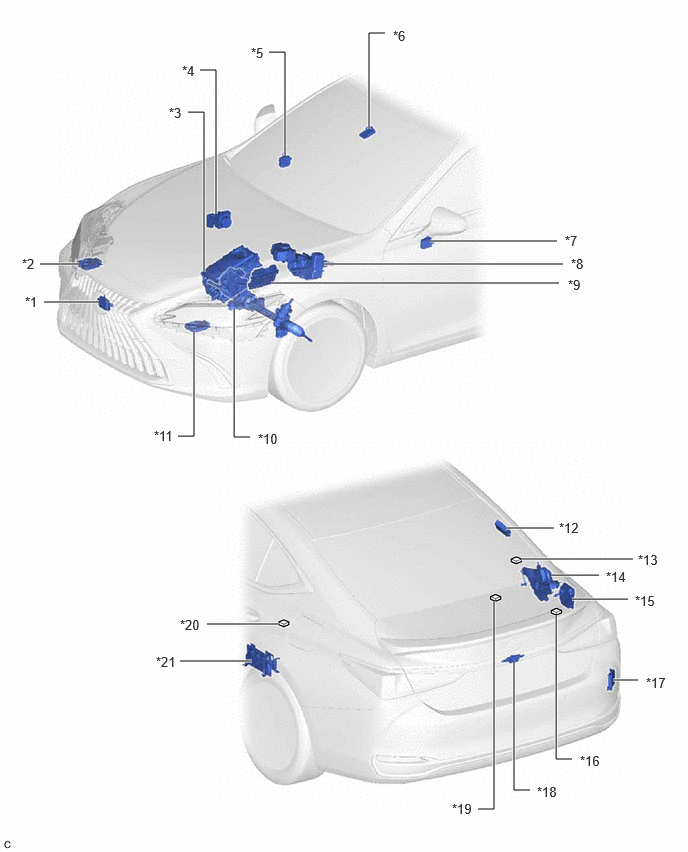

| *1 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *2 | HEADLIGHT ECU SUB-ASSEMBLY RH |
| *3 | INVERTER WITH CONVERTER ASSEMBLY | *4 | BRAKE ACTUATOR ASSEMBLY |
| *5 | OUTER MIRROR CONTROL ECU ASSEMBLY RH (w/ Seat Position Memory System) |
*6 | FORWARD RECOGNITION CAMERA |
| *7 | OUTER MIRROR CONTROL ECU ASSEMBLY LH (w/ Seat Position Memory System) |
*8 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY |
| *9 | ECM | *10 | RACK AND PINION POWER STEERING GEAR ASSEMBLY |
| *11 | HEADLIGHT ECU SUB-ASSEMBLY LH | *12 | TIRE PRESSURE WARNING ECU AND RECEIVER |
| *13 | NO. 7 CAN JUNCTION CONNECTOR | *14 | LUGGAGE CLOSER MOTOR ASSEMBLY (w/ Power Trunk Lid System) |
| *15 | ABSORBER CONTROL ECU (w/ AVS System) |
*16 | NO. 6 CAN JUNCTION CONNECTOR |
| *17 | BLIND SPOT MONITOR SENSOR RH | *18 | REAR TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System) |
| *19 | NO. 1 CAN JUNCTION TERMINAL | *20 | NO. 8 CAN JUNCTION CONNECTOR |
| *21 | BATTERY ECU ASSEMBLY (for Lithium-ion Battery) |
- | - |

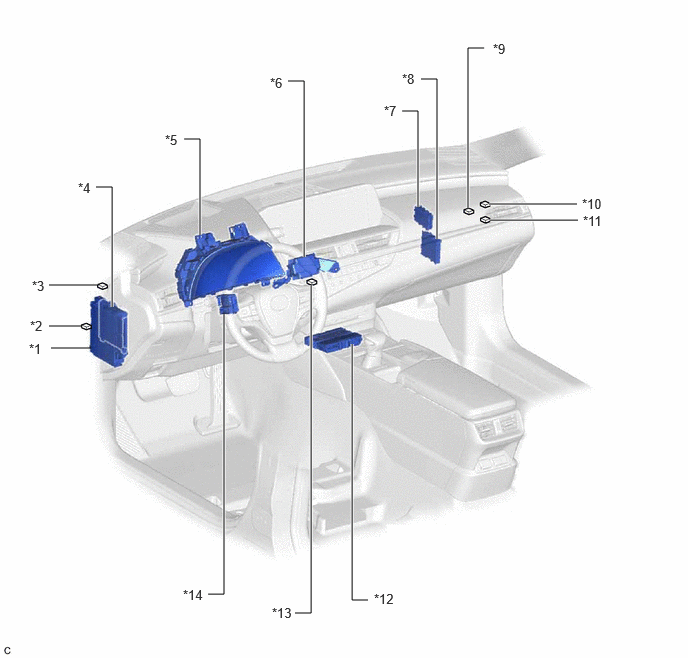

| *1 | DLC3 | *2 | HYBRID VEHICLE CONTROL ECU |
| *3 | METER MIRROR SUB-ASSEMBLY (w/ Headup Display System) |
*4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *5 | VEHICLE APPROACHING SPEAKER CONTROLLER | *6 | RADIO RECEIVER ASSEMBLY |
| *7 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *8 | PARKING ASSIST ECU (w/ Panoramic View Monitor System) |
| *9 | OCCUPANT DETECTION ECU | *10 | POSITION CONTROL ECU ASSEMBLY LH (w/ Seat Position Memory System) |
| *11 | AIRBAG ECU ASSEMBLY | *12 | STEERING SENSOR |
| *1 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY | *2 | NO. 2 CAN JUNCTION CONNECTOR |
| *3 | NO. 2 JUNCTION CONNECTOR | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | COMBINATION METER ASSEMBLY | *6 | STEREO COMPONENT EQUALIZER ASSEMBLY |
| *7 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) | *8 | CLEARANCE WARNING ECU ASSEMBLY (w/ Parking Support Alert System) |
| *9 | NO. 4 CAN JUNCTION CONNECTOR | *10 | NO. 1 CAN JUNCTION CONNECTOR |
| *11 | NO. 1 JUNCTION CONNECTOR | *12 | DCM (TELEMATICS TRANSCEIVER) |
| *13 | NO. 5 CAN JUNCTION CONNECTOR | *14 | MULTIPLEX TILT AND TELESCOPIC ECU (w/ Power Tilt and Power Telescopic System) |
