DTC P0A81-96: Hybrid/EV Battery Cooling Fan 1 Component Internal Failure [08/2020 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, and 2021 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DTC OUTPUT (HV BATTERY, HYBRID CONTROL)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Enter the following menus: Powertrain / HV Battery and Hybrid Control / Trouble Codes.
    4. Check for DTCs.

      Powertrain > HV Battery > Trouble Codes

      Powertrain > Hybrid Control > Trouble Codes

      Result

      Result Proceed to
      P0A81-96 only is output, or DTCs except the ones in the table below are also output. A
      DTCs of hybrid battery system in the table below are output. B
      DTCs of hybrid control system in the table below are output. C
      System Relevant DTC
      Hybrid battery system P060A-47 Hybrid/EV Battery Energy Control Module Monitoring Processor Watchdog / Safety MCU Failure
      P060B-49 Hybrid/EV Battery Energy Control Module A/D Processing Internal Electronic Failure
      P0606-87 Hybrid/EV Battery Energy Control Module Processor to Monitoring Processor Missing Message
      Hybrid control system P0A1F-94 Hybrid/EV Battery Energy Control Module Unexpected Operation
    5. Turn the power switch off.

    Result:

    B

    GO TO DTC CHART (HYBRID BATTERY SYSTEM). Refer to  DIAGNOSTIC TROUBLE CODE CHART [08/2020 - ]

    Result:

    C

    GO TO DTC CHART (HYBRID CONTROL SYSTEM). Refer to  DIAGNOSTIC TROUBLE CODE CHART [08/2020 - 08/2021]  , or refer to  DIAGNOSTIC TROUBLE CODE CHART [08/2021 - ]

    Result:

    A

    See step  2

  2. CHECK DUCT AND BLOWER
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the appropriate service information because this may cause a malfunction.

    2. Remove the rear seat cushion leg sub-assembly.

      Refer to PROCEDURE - Step 8

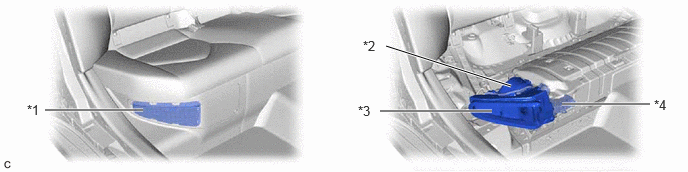

    3. Check that the No. 1 HV battery intake filter, battery cooling blower assembly and No. 1 hybrid battery intake duct are not disconnected, damaged, or clogged with foreign matter.
      GTY946861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 HV Battery Intake Filter *2 Battery Cooling Blower Assembly
      *3 No. 1 Hybrid Battery Intake Duct *4 No. 1 Hybrid Battery Intake Duct LH

      OK

      The No. 1 HV battery intake filter, No. 1 hybrid battery intake duct, No. 1 hybrid battery intake duct LH and battery cooling blower assembly blower are not disconnected, damaged, or clogged with foreign matter.

    4. Install the rear seat cushion leg sub-assembly.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    CORRECT THE PROBLEM

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (BATTERY ECU ASSEMBLY - BATTERY COOLING BLOWER ASSEMBLY)

    See step  3

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. CHECK HARNESS AND CONNECTOR (BATTERY ECU ASSEMBLY - BATTERY COOLING BLOWER ASSEMBLY)

    See step  9

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  5

  5. CHECK BATTERY ECU ASSEMBLY (GROUND SHORT CHECK)
    1. Remove the battery ECU assembly.

      Refer to REMOVAL [08/2020 - 08/2021] , or refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]

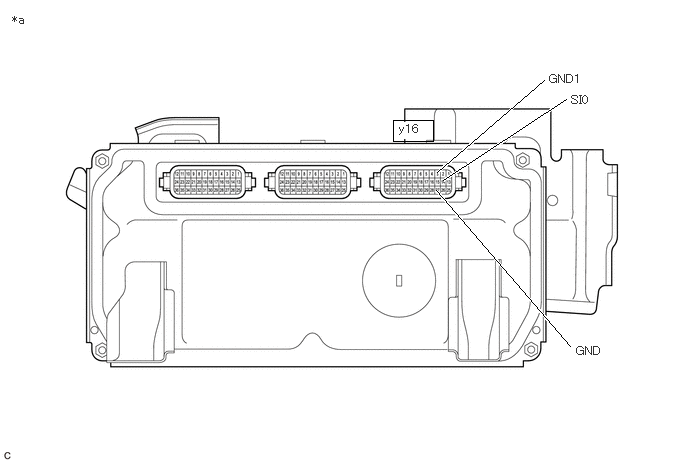

    2. Measure the resistance according to the value(s) in the table below.
      GTY946875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Battery ECU Assembly)      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      y16-14 (SI0) -y16-27 (GND) Power switch off 10 kΩ or higher
      y16-14 (SI0) -y16-3 (GND1) Power switch off 10 kΩ or higher
    3. Install the battery ECU assembly.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE BATTERY ECU ASSEMBLY. Refer to  REMOVAL [08/2020 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]

    Result:

    OK

    See step  6

  6. READ VALUE USING TECHSTREAM (HYBRID/EV BATTERY COOLING FAN 1 FREQUENCY)

    See step  4

    Result

    Result Proceed to
    Both of the value in the Data List (Hybrid/EV Battery Cooling Fan 1 Frequency) and the actual measured value at the battery ECU assembly connector are 0 Hz. A
    Other than above B

    Result:

    B

    See step  8

    Result:

    A

    See step  7

  7. CHECK BATTERY ECU ASSEMBLY

    See step  5

    Result

    Proceed to
    OK
    NG

    Result:

    OK

    REPLACE BATTERY COOLING BLOWER ASSEMBLY. Refer to  REMOVAL [06/2018 - ]

    Result:

    NG

    REPLACE BATTERY ECU ASSEMBLY. Refer to  REMOVAL [08/2020 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]

  8. CHECK BATTERY ECU ASSEMBLY (FREQUENCY)

    See step  6

    Result

    Proceed to
    OK
    NG

    Result:

    OK

    REPLACE BATTERY COOLING BLOWER ASSEMBLY. Refer to  REMOVAL [06/2018 - ]

    Result:

    NG

    REPLACE BATTERY ECU ASSEMBLY. Refer to  REMOVAL [08/2020 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]
