DTC P0A1D-94: Hybrid/EV Powertrain Control Module Unexpected Operation [08/2020 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, and 2021 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONTROL ECU CONNECTOR)
    1. Check the connections of the hybrid vehicle control ECU connector.

      Refer to ELECTRONIC CIRCUIT INSPECTION PROCEDURE [06/2018 - ]

      GTY771711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      The connectors are connected securely and there are no contact pressure problems.

      Result

      Result
      OK
      NG

    Result:

    NG

    CONNECT SECURELY

    Result:

    OK

    See step  2

  2. CHECK CONNECTOR CONNECTION CONDITION (BATTERY ECU ASSEMBLY CONNECTOR)
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the appropriate service information because this may cause a malfunction.

    2. Remove the No. 1 HV battery hose.

      Refer to PROCEDURE - Step 21 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 21 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 21 [09/2022 - ]

    3. Check the connector connections and contact pressure of the relevant terminals for the battery ECU assembly.

      Refer to ELECTRONIC CIRCUIT INSPECTION PROCEDURE [06/2018 - ]

      OK

      The connector is connected securely and there are no contact problems.

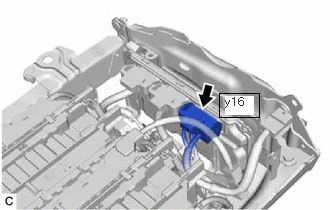

      GTY946852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the No. 1 HV battery hose.

      Result

      Result
      OK
      NG

    Result:

    NG

    CONNECT SECURELY

    Result:

    OK

    See step  3

  3. CHECK CONNECTOR CONNECTION CONDITION (NO. 1 HYBRID BATTERY PACK WIRE))
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the appropriate service information because this may cause a malfunction.

    2. Remove the No. 4 HV battery protector.

      Refer to PROCEDURE - Step 15 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 15 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 15 [09/2022 - ]

    3. Check the connector connections and contact pressure of the relevant terminals for the HV battery.

      Refer to ELECTRONIC CIRCUIT INSPECTION PROCEDURE [06/2018 - ]

      OK

      The connector is connected securely and there are no contact problems.

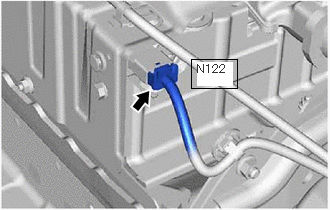

      GTY947006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the No. 4 HV battery protector.

      Result

      Result
      OK
      NG

    Result:

    NG

    CONNECT SECURELY

    Result:

    OK

    See step  4

  4. REPLACE HYBRID VEHICLE CONTROL ECU

    Refer to REMOVAL [06/2018 - 08/2021] , or refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]

    Result

    Proceed to
    NEXT

    Result:

    NEXT

    END
