DTC P0ABF-28: Hybrid/EV Battery Current Sensor "A" Signal Bias Level Out of Range / Zero Adjustment Failure [08/2020 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, and 2021 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DTC OUTPUT (HV BATTERY, HYBRID CONTROL)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Enter the following menus: Powertrain / HV Battery and Hybrid Control / Trouble Codes.
    4. Check for DTCs.

      Powertrain > HV Battery > Trouble Codes

      Powertrain > Hybrid Control > Trouble Codes

      Result

      Result Proceed to
      "P0ABF-28" only is output, or DTCs except the ones in the table below are also output. A
      DTCs of hybrid battery system in the table below are output. B
      DTCs of hybrid control system in the table below are output. C
      System Relevant DTC
      Hybrid battery system P060A-47 Hybrid/EV Battery Energy Control Module Monitoring Processor Watchdog / Safety MCU Failure
      P060B-49 Hybrid/EV Battery Energy Control Module A/D Processing Internal Electronic Failure
      P0606-87 Hybrid/EV Battery Energy Control Module Processor to Monitoring Processor Missing Message
      P062F-46 Hybrid/EV Battery Energy Control Module EEPROM Calibration / Parameter Memory Failure
      Hybrid control system P0A1F-94 Hybrid/EV Battery Energy Control Module Unexpected Operation
    5. Turn the power switch off.

    Result:

    B

    GO TO DTC CHART (HYBRID BATTERY SYSTEM). Refer to  DIAGNOSTIC TROUBLE CODE CHART [08/2020 - ]

    Result:

    C

    GO TO DTC CHART (HYBRID CONTROL SYSTEM). Refer to  DIAGNOSTIC TROUBLE CODE CHART [08/2020 - 08/2021]  , or refer to  DIAGNOSTIC TROUBLE CODE CHART [08/2021 - ]

    Result:

    A

    See step  2

  2. CHECK HARNESS AND CONNECTOR (BATTERY ECU ASSEMBLY - NO. 1 HV SUPPLY STACK SUB-ASSEMBLY)

    Refer to PROCEDURE - Step 10

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    See step  11

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (NO. 2 HV SUPPLY STACK SUB-ASSEMBLY - HV BATTERY JUNCTION BLOCK ASSEMBLY)

    Refer to PROCEDURE - Step 9

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    REPLACE NO. 2 HV SUPPLY STACK SUB-ASSEMBLY. Refer to  REMOVAL [08/2020 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]

    Result:

    OK

    See step  4

  4. CHECK HARNESS AND CONNECTOR (BATTERY ECU ASSEMBLY - HV BATTERY JUNCTION BLOCK ASSEMBLY)
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the appropriate service information because this may cause a malfunction.

    2. Remove the No. 1 HV battery hose.

      Refer to PROCEDURE - Step 21 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 21 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 21 [09/2022 - ]

    3. Disconnect the y16 battery ECU assembly connector.
      NOTE:

      Before disconnecting the connector, check that it is not loose or disconnected.

      GTY946852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the y14 battery current sensor connector from the HV battery junction block assembly.
      NOTE:

      Before disconnecting the connector, check that it is not loose or disconnected.

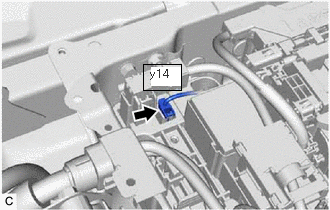

      GTY946890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Measure the resistance according to the value(s) in the tables below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      y16-24 (IB1) - y14-2 (IB1) Power switch off Below 1 Ω
      y16-23 (GIB) - y14-3 (GIB) Power switch off Below 1 Ω
      y16-12 (IB0) - y14-4 (IB0) Power switch off Below 1 Ω
      y16-36 (VIB) - y14-1 (VIB) Power switch off Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition
      y16-24 (IB1) or y14-2 (IB1) - Body ground and other terminals Power switch off 10 kΩ or higher
      y16-23 (GIB) or y14-3 (GIB) - Body ground and other terminals Power switch off 10 kΩ or higher
      y16-12 (IB0) or y14-4 (IB0) - Body ground and other terminals Power switch off 10 kΩ or higher
      y16-36 (VIB) or y14-1 (VIB) - Body ground and other terminals Power switch off 10 kΩ or higher

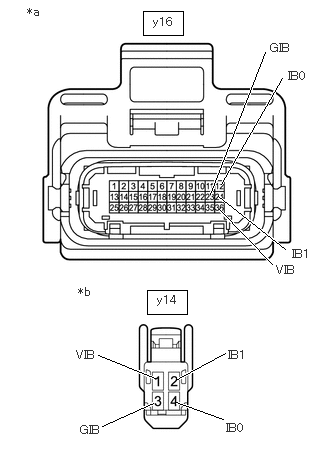

      GTY947001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Battery ECU Assembly)
      *b Front view of wire harness connector
      (to HV Battery Junction Block Assembly (Battery Current Sensor))
    6. Reconnect the y14 battery current sensor connector to the HV battery junction block assembly.
    7. Reconnect the y16 battery ECU assembly connector.
    8. Install the No. 1 HV battery hose.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  10

    Result:

    OK

    See step  5

  5. CHECK HV BATTERY JUNCTION BLOCK ASSEMBLY (BATTERY CURRENT SENSOR (IB0))
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the appropriate service information because this may cause a malfunction.

    2. Remove the No. 1 HV battery cover panel RH.

      Refer to PROCEDURE - Step 9 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 9 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 9 [09/2022 - ]

    3. Connect the cable to the negative (-) auxiliary battery terminal.
    4. Turn the power switch on (IG).
    5. Using a toyota electrical tester set to 40 V, measure the VIB voltage according to the value(s) in the table below.
      Tester Connection Tester Connection
      y14-1 (VIB) - y14-3 (GIB) Power switch on (IG)
      NOTE:
      • Turning the power switch on (IG) with the service plug grip removed causes other DTCs to be stored. Clear the DTCs after performing this inspection.
      • Be sure to set the toyota electrical tester to 40 V when performing this test.

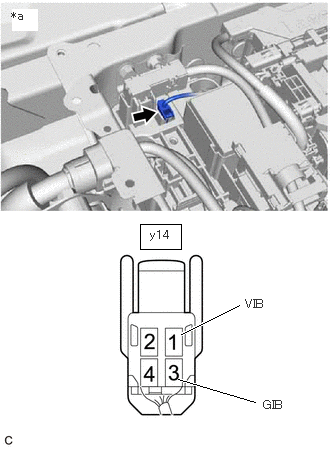

      GTY946969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (HV Battery Junction Block Assembly (Battery Current Sensor))
    6. Using a toyota electrical tester set to 4 V, measure the IB0 voltage according to the value(s) in the table below.
      Tester Connection Tester Connection
      y14-4 (IB0) - y14-3 (GIB) Power switch on (IG)
      NOTE:

      Be sure to set the toyota electrical tester to 4 V when performing this test.

      GTY946987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (HV Battery Junction Block Assembly (Battery Current Sensor))
    7. Compare the measured values of the IB0 terminal voltage and VIB terminal voltage using the following formula:
      IB0 voltage - 0.56 X VIB Voltage = less than 0.084 V
      IB0 voltage - 0.56 X VIB Voltage = -0.084 V or higher

      Result

      Result Proceed to
      Within the specified range above A
      Other than above B
    8. Turn the power switch off.
    9. Disconnect the cable from the negative (-) auxiliary battery terminal.
    10. Install the No. 1 HV battery cover panel RH.

    Result:

    B

    REPLACE HV BATTERY JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [08/2020 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]

    Result:

    A

    See step  6

  6. CHECK HV BATTERY JUNCTION BLOCK ASSEMBLY (BATTERY CURRENT SENSOR (IB1))
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the appropriate service information because this may cause a malfunction.

    2. Remove the No. 1 HV battery cover panel RH.

      Refer to PROCEDURE - Step 9 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 9 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 9 [09/2022 - ]

    3. Connect the cable to the negative (-) auxiliary battery terminal.
    4. Turn the power switch on (IG).
    5. Using a toyota electrical tester set to 40 V, measure the VIB voltage according to the value(s) in the table below.
      Tester Connection Tester Connection
      y14-1 (VIB) - y14-3 (GIB) Power switch on (IG)
      NOTE:
      • Turning the power switch on (IG) with the service plug grip removed causes other DTCs to be stored. Clear the DTCs after performing this inspection.
      • Be sure to set the toyota electrical tester to 40 V when performing this test.
      GTY946969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (HV Battery Junction Block Assembly (Battery Current Sensor))
    6. Using a toyota electrical tester set to 4 V, measure the IB1 voltage according to the value(s) in the table below.
      Tester Connection Tester Connection
      y14-2 (IB1) - y14-3 (GIB) Power switch on (IG)
      NOTE:

      Be sure to set the toyota electrical tester to 4 V when performing this test.

      GTY946971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (HV Battery Junction Block Assembly (Battery Current Sensor))
    7. Compare the measured values of the IB1 terminal voltage and VIB terminal voltage using the following formula:
      Condition
      IB1 voltage - 0.44 X VIB Voltage = less than 0.078 V
      IB1 voltage - 0.44 X VIB Voltage = -0.078 V or higher

      Result

      Result Proceed to
      Within the specified range above. A
      Other than above B
    8. Turn the power switch off.
    9. Disconnect the cable from the negative (-) auxiliary battery terminal.
    10. Install the No. 1 HV battery cover panel RH.

    Result:

    B

    REPLACE HV BATTERY JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [08/2020 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]

    Result:

    A

    See step  7

  7. REPLACE BATTERY ECU ASSEMBLY

    Refer to REMOVAL [08/2020 - 08/2021] , or refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]

    Result

    Proceed to
    NEXT

    Result:

    NEXT

    See step  8

  8. SIMULATION TEST
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Enter the following menus: Powertrain / HV Battery / Trouble Codes.
    4. Clear the DTCs and freeze frame data.

      Powertrain > HV Battery > Clear DTCs

    5. Drive the vehicle on urban roads for approximately 10 minutes.
    6. Turn the power switch off and wait for 2 minutes or more.
    7. Turn the power switch on (IG) and wait for 10 seconds or more.

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  9

  9. CHECK DTC OUTPUT (HV BATTERY)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Enter the following menus: Powertrain / HV Battery / Trouble Codes.
    4. Check for DTCs.

      Powertrain > HV Battery > Trouble Codes

      Result

      Result Proceed to
      DTCs are not output. A
      P0ABF-28 is also output. B
    5. Turn the power switch off.

    Result:

    A

    END

    Result:

    B

    REPLACE HV BATTERY JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [08/2020 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]

  10. CHECK HARNESS AND CONNECTOR (NO. 1 HV SUPPLY STACK SUB-ASSEMBLY - HV BATTERY JUNCTION BLOCK ASSEMBLY)
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the appropriate service information because this may cause a malfunction.

    2. Remove the No. 1 HV battery hose.

      Refer to PROCEDURE - Step 21 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 21 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 21 [09/2022 - ]

    3. Disconnect the A No. 1 HV supply stack sub-assembly connector.
      NOTE:

      Before disconnecting the connector, check that it is not loose or disconnected.

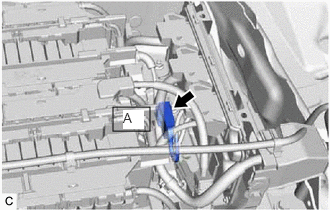

      GTY741627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Check the terminals of the male side of the A No. 1 HV supply stack sub-assembly connector.

      OK

      The terminals are free of foreign matter and not damaged.

    5. Reconnect the A No. 1 HV supply stack sub-assembly connector.
    6. Install the No. 1 HV battery hose.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 HV SUPPLY STACK SUB-ASSEMBLY. Refer to  REMOVAL [08/2020 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]

    Result:

    NG

    REPLACE NO. 1 HV SUPPLY STACK SUB-ASSEMBLY. Refer to  REMOVAL [08/2020 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]

  11. CHECK HARNESS AND CONNECTOR (NO. 2 HV SUPPLY STACK SUB-ASSEMBLY - HV BATTERY JUNCTION BLOCK ASSEMBLY)

    Refer to PROCEDURE - Step 9

    Result

    Proceed to
    OK
    NG

    Result:

    OK

    REPLACE NO. 1 HV SUPPLY STACK SUB-ASSEMBLY. Refer to  REMOVAL [08/2020 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]

    Result:

    NG

    REPLACE NO. 1 HV SUPPLY STACK SUB-ASSEMBLY AND NO. 2 HV SUPPLY STACK SUB-ASSEMBLY. Refer to  REMOVAL [08/2020 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]
