Components [08/2021 - ]

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.

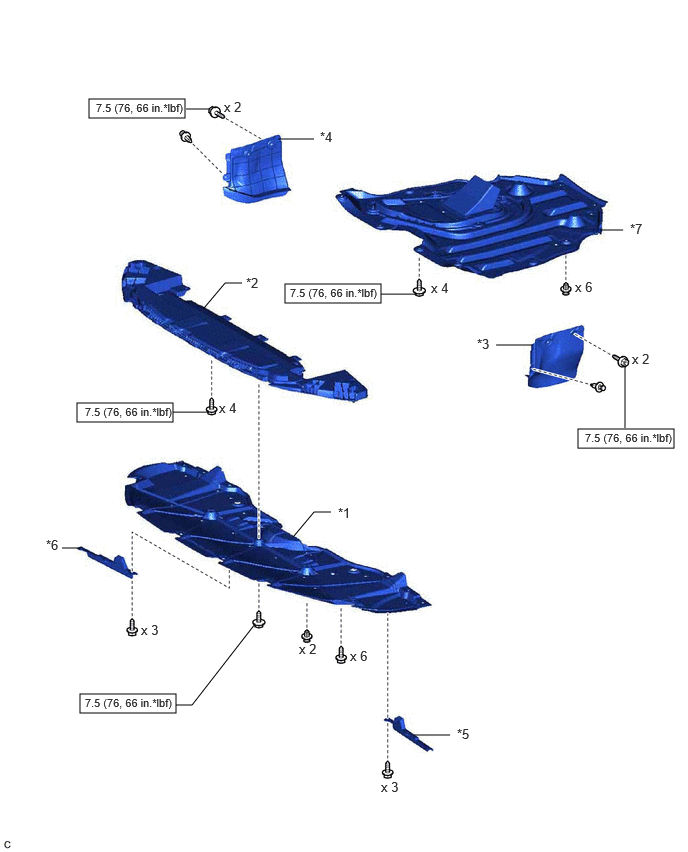

Fig 1: Engine Assembly Replacement Components With Torque Specifications [08/2021 - ] (1 Of 7)
GTY947106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 ENGINE UNDER COVER *2 FRONT LOWER BUMPER ABSORBER
*3 FRONT FENDER APRON SEAL LH *4 FRONT FENDER APRON SEAL RH
*5 FRONT WHEEL OPENING EXTENSION PAD LH *6 FRONT WHEEL OPENING EXTENSION PAD RH
*7 NO. 2 ENGINE UNDER COVER ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

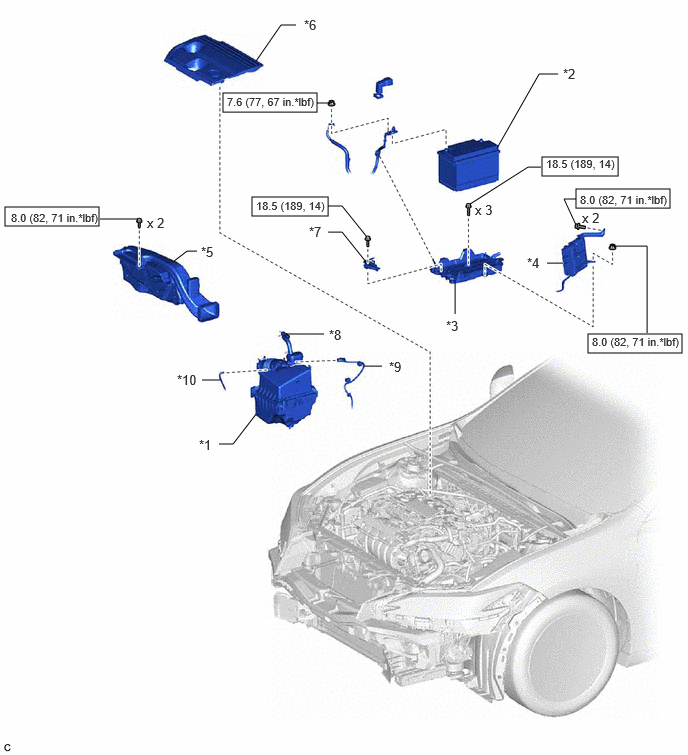

Fig 2: Engine Assembly Replacement Components With Torque Specifications [08/2021 - ] (2 Of 7)
GTY1084680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE *2 BATTERY
*3 BATTERY CLAMP SUB-ASSEMBLY *4 ECM
*5 INLET AIR CLEANER ASSEMBLY *6 NO. 1 ENGINE COVER SUB-ASSEMBLY
*7 NO. 2 BATTERY CLAMP *8 NO. 2 VENTILATION HOSE
*9 MASS AIR FLOW METER SUB-ASSEMBLY CONNECTOR *10 VACUUM HOSE
N*m (kgf*cm, ft.*lbf): Specified torque - -

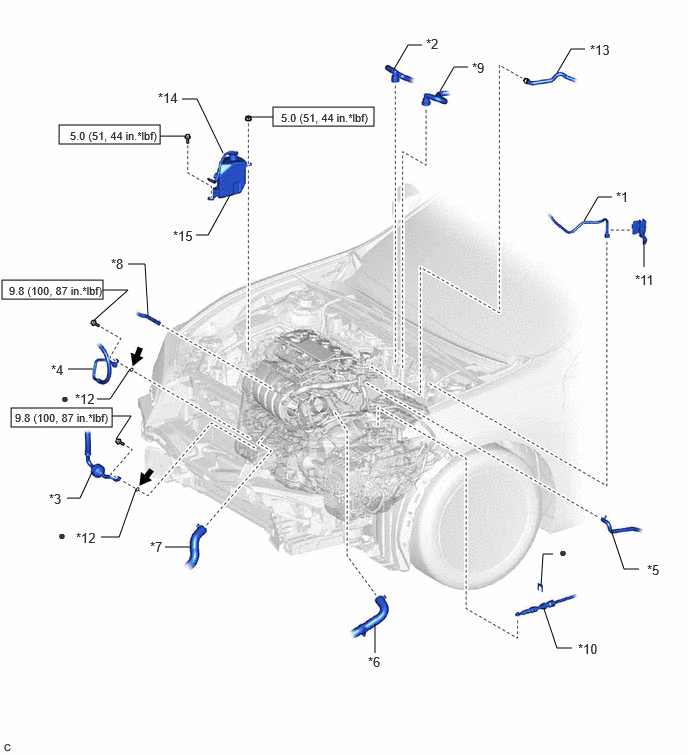

Fig 3: Engine Assembly Replacement Components With Torque Specifications [08/2021 - ] (3 Of 7)
GTY947572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FUEL TUBE SUB-ASSEMBLY *2 INLET HEATER WATER HOSE
*3 SUCTION HOSE *4 NO. 1 COOLER REFRIGERANT DISCHARGE HOSE
*5 NO. 1 FUEL VAPOR FEED HOSE *6 NO. 1 RADIATOR HOSE
*7 NO. 2 RADIATOR HOSE *8 NO. 5 WATER BY-PASS HOSE
*9 OUTLET HEATER WATER HOSE *10 TRANSMISSION CONTROL CABLE ASSEMBLY
*11 EFI FUEL PIPE CLAMP *12 O-RING
*13 UNION TO CHECK VALVE HOSE *14 NO. 6 WATER BY-PASS HOSE
*15 RADIATOR RESERVE TANK ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Compressor oil ND-OIL 12 or equivalent - -
Fig 4: Engine Assembly Replacement Components With Torque Specifications [08/2021 - ] (4 Of 7)
GTY814885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/ Suspension Tower Damper - -
*1 SUSPENSION TOWER DAMPER - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

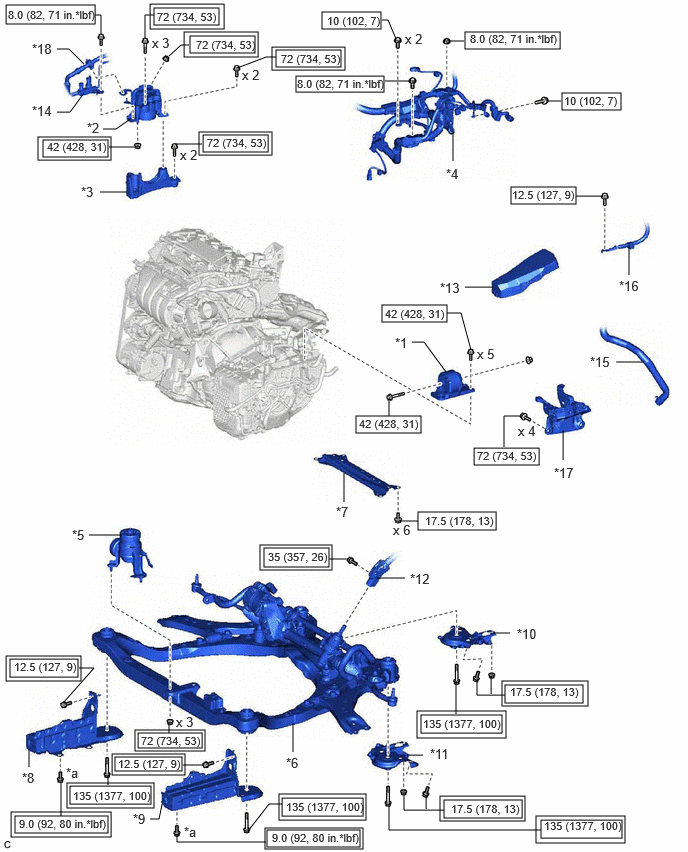

Fig 5: Engine Assembly Replacement Components With Torque Specifications [08/2021 - ] (5 Of 7)
GTY948513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REAR NO. 2 ENGINE MOUNTING INSULATOR *2 ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH
*3 ENGINE MOUNTING SPACER *4 WIRE HARNESS
*5 FRONT ENGINE MOUNTING INSULATOR *6 FRONT FRAME ASSEMBLY
*7 BODY MOUNTING PLATE *8 FRONT BUMPER EXTENSION SUB-ASSEMBLY RH
*9 FRONT BUMPER EXTENSION SUB-ASSEMBLY LH *10 FRONT SUSPENSION MEMBER BRACKET SUB-ASSEMBLY RH
*11 FRONT SUSPENSION MEMBER BRACKET SUB-ASSEMBLY LH *12 STEERING INTERMEDIATE SHAFT ASSEMBLY
*13 RELAY BLOCK COVER *14 AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY
*15 WATER BY-PASS HOSE ASSEMBLY *16 EARTH WIRE
*17 ENGINE MOUNTING BRACKET SUB-ASSEMBLY LH *18 SUCTION TUBE SUB-ASSEMBLY
*a w/o Suspension Tower Damper: x 2
w/ Suspension Tower Damper: x 1		 - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque

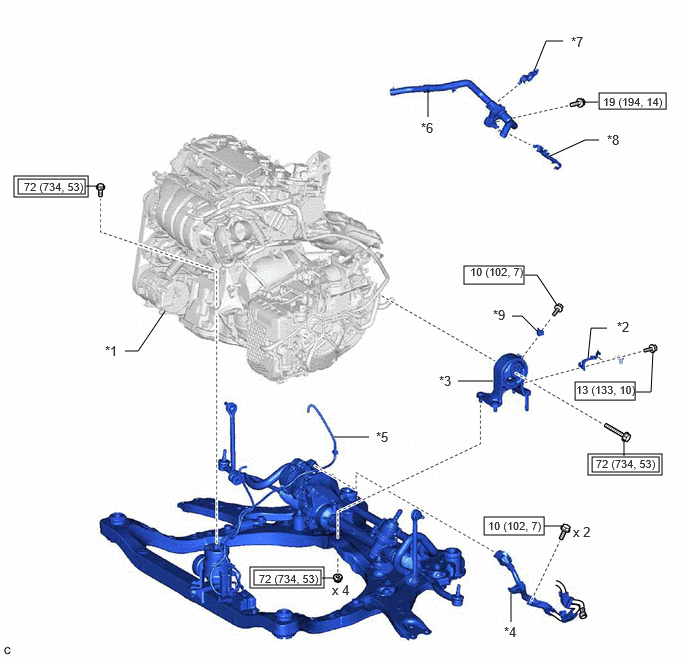

Fig 6: Engine Assembly Replacement Components With Torque Specifications [08/2021 - ] (6 Of 7)
GTY948712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE ASSEMBLY WITH TRANSAXLE *2 EXHAUST SENSOR CLAMP BRACKET
*3 REAR ENGINE MOUNTING INSULATOR *4 WIRE HARNESS
*5 VACUUM HOSE *6 FLOW SHUTTING VALVE (NO. 1 WATER BY-PASS HOSE)
*7 HOSE CLAMP *8 TRANSMISSION BREATHER CLAMP
*9 WIRING HARNESS CLAMP BRACKET - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque

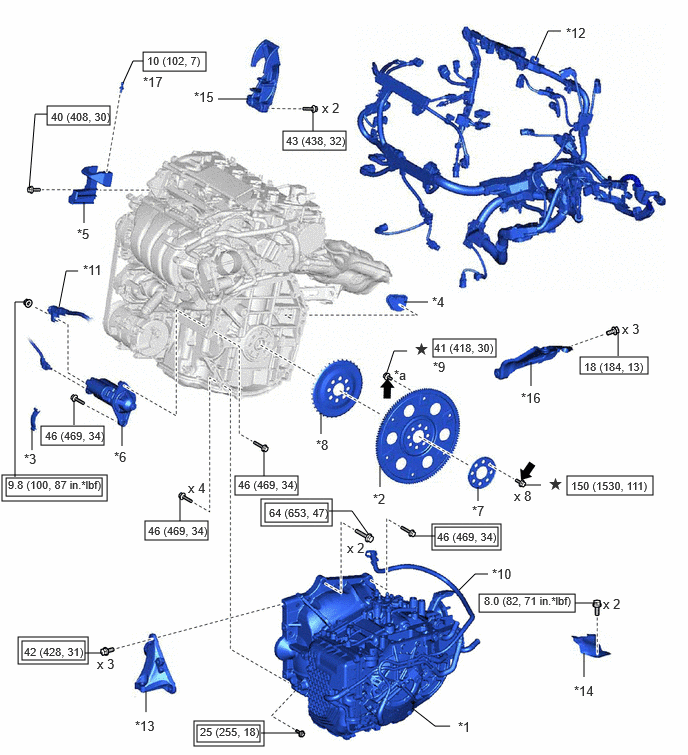

Fig 7: Engine Assembly Replacement Components With Torque Specifications [08/2021 - ] (7 Of 7)
GTY1084684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AUTOMATIC TRANSAXLE ASSEMBLY *2 DRIVE PLATE AND RING GEAR SUB-ASSEMBLY
*3 FLYWHEEL HOUSING SIDE COVER *4 FLYWHEEL HOUSING UNDER COVER
*5 FUEL DELIVERY GUARD *6 STARTER ASSEMBLY
*7 REAR DRIVE PLATE SPACER *8 NO. 1 CRANKSHAFT POSITION SENSOR PLATE
*9 DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT *10 BREATHER PLUG HOSE
*11 NO. 2 ENGINE WIRE *12 ENGINE WIRE
*13 FRONT ENGINE MOUNTING BRACKET *14 STEERING GEAR HEAT INSULATOR
*15 FUEL PUMP PROTECTOR *16 PROPELLER SHAFT HEAT INSULATOR
*17 BOLT - -
*a BLACK COLOR: x 1
SILVER COLOR: x 5		 - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
Adhesive 1324 * Precoated part
