Components [08/2020 - ]
WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

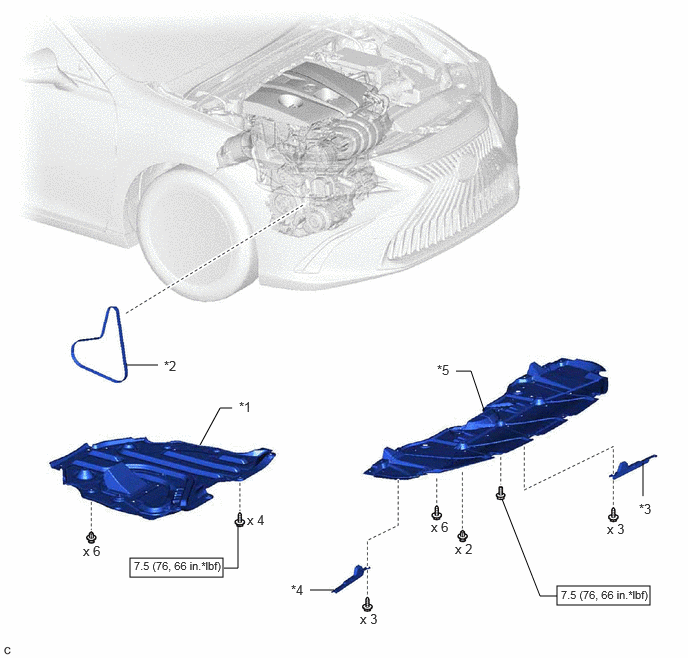

| *1 |
NO. 2 ENGINE UNDER COVER ASSEMBLY |
*2 |
V-RIBBED BELT |
| *3 |
FRONT WHEEL OPENING EXTENSION PAD LH |
*4 |
FRONT WHEEL OPENING EXTENSION PAD RH |
| *5 |
NO. 1 ENGINE UNDER COVER |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
