Components [08/2020 - ]
WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

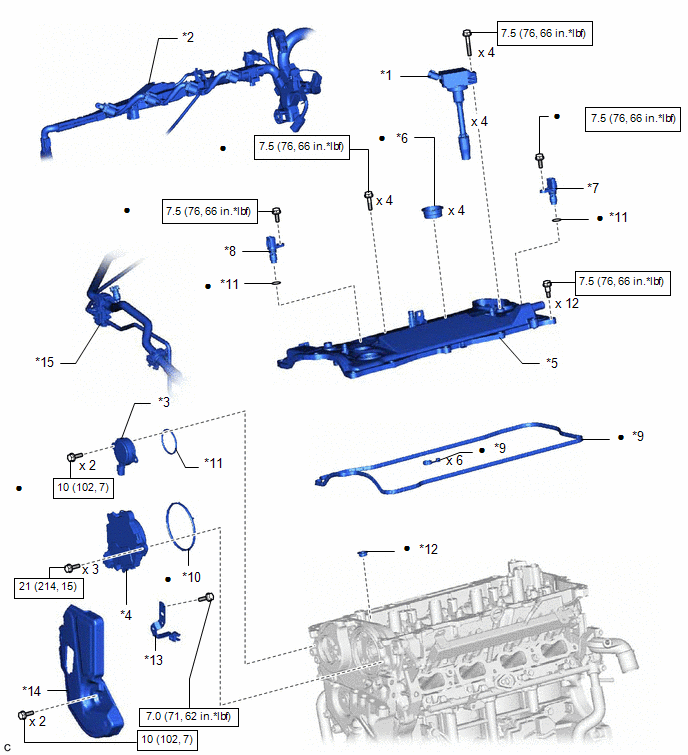

| *1 |
IGNITION COIL ASSEMBLY |
*2 |
ENGINE WIRE |
| *3 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY |
*4 |
CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY |
| *5 |
CYLINDER HEAD COVER SUB-ASSEMBLY |
*6 |
SPARK PLUG TUBE GASKET |
| *7 |
CAMSHAFT POSITION SENSOR (for Intake Side) |
*8 |
CAMSHAFT POSITION SENSOR (for Exhaust Side) |
| *9 |
CYLINDER HEAD COVER GASKET |
*10 |
CAM TIMING CONTROL MOTOR O-RING |
| *11 |
O-RING |
*12 |
CAMSHAFT BEARING CAP OIL HOLE GASKET |
| *13 |
NO. 3 BRAKE TUBE CLAMP |
*14 |
NO. 2 ENGINE COVER |
| *15 |
AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
| * |
Precoated part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

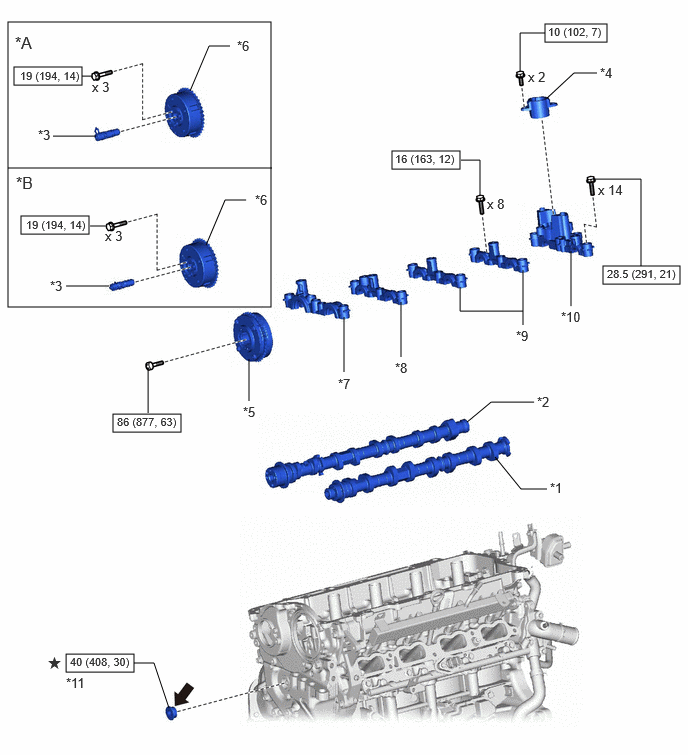

| *A |
Type A |
*B |
Type B |
| *1 |
CAMSHAFT |
*2 |
NO. 2 CAMSHAFT |
| *3 |
CAMSHAFT TIMING VALVE ASSEMBLY |
*4 |
FUEL PUMP LIFTER GUIDE |
| *5 |
CAMSHAFT TIMING GEAR ASSEMBLY |
*6 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY |
| *7 |
NO. 1 CAMSHAFT BEARING CAP |
*8 |
NO. 2 CAMSHAFT BEARING CAP |
| *9 |
NO. 3 CAMSHAFT BEARING CAP |
*10 |
NO. 4 CAMSHAFT BEARING CAP |
| *11 |
STRAIGHT SCREW PLUG |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
 |
Adhesive 1324 |
| * |
Precoated part |
- |
- |
