System Diagram [06/2018 - 08/2020]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

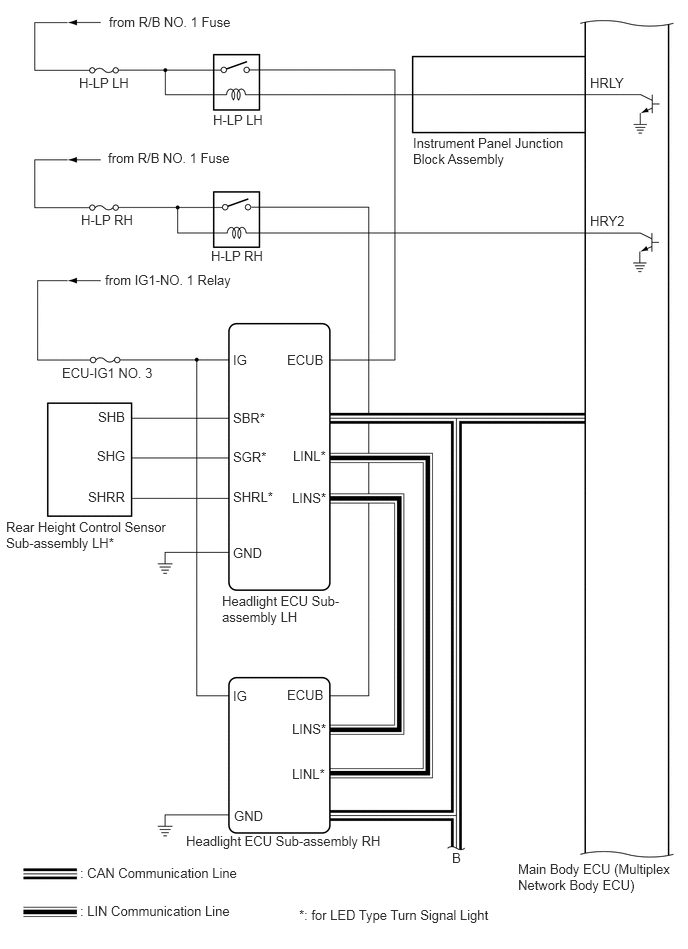

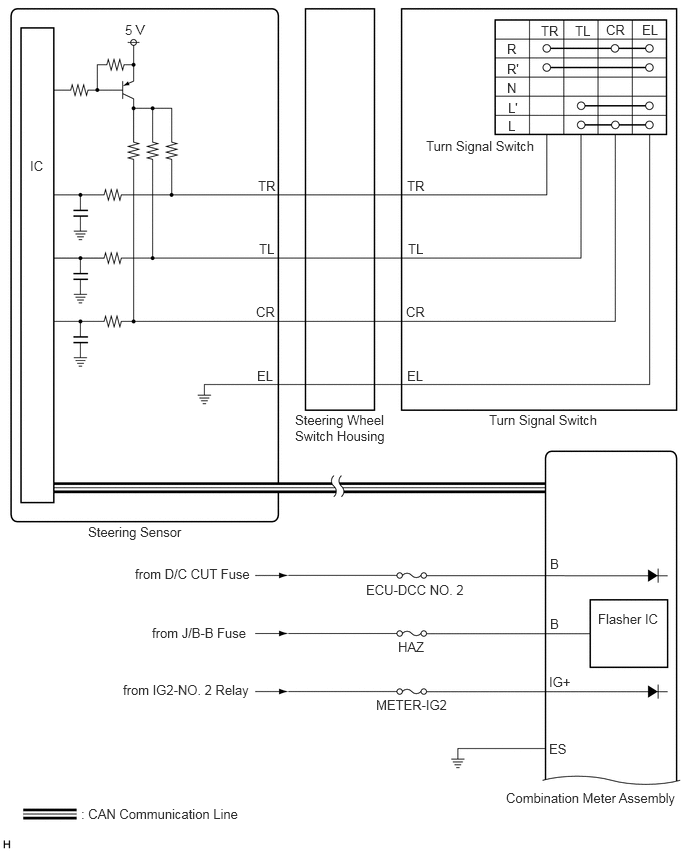

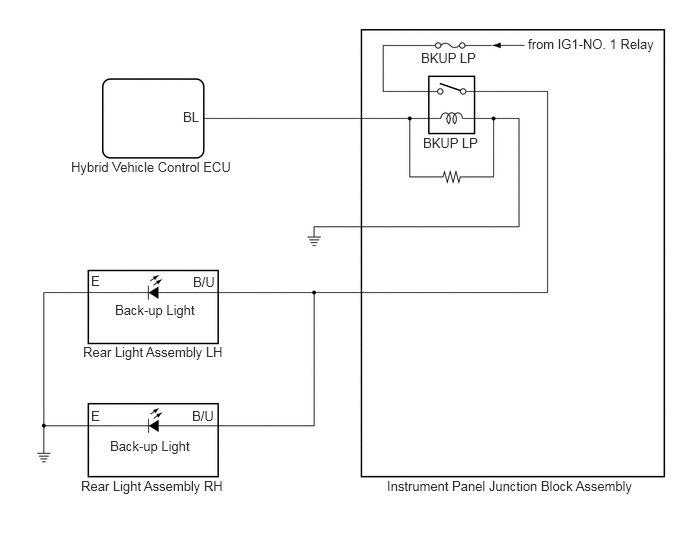

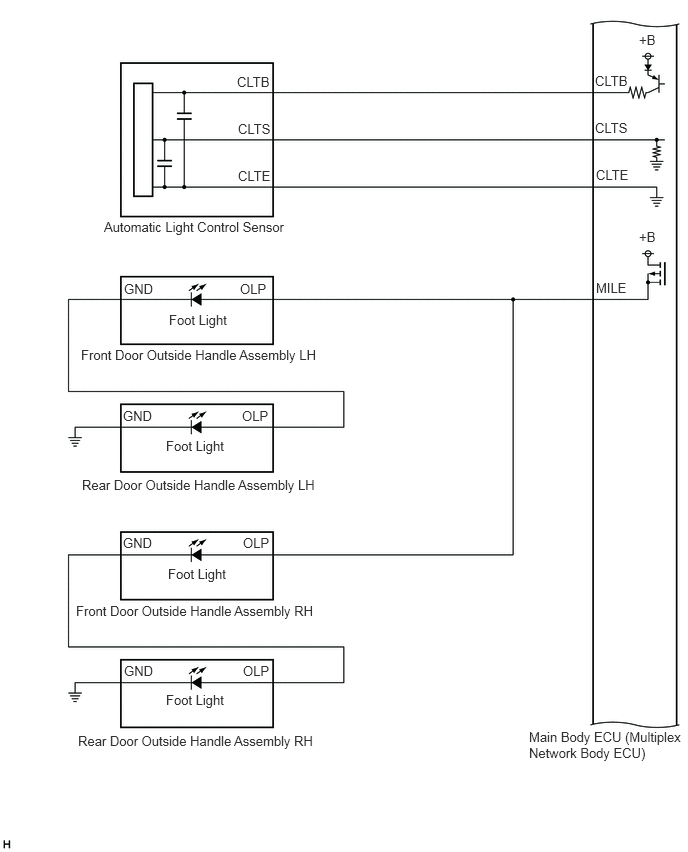

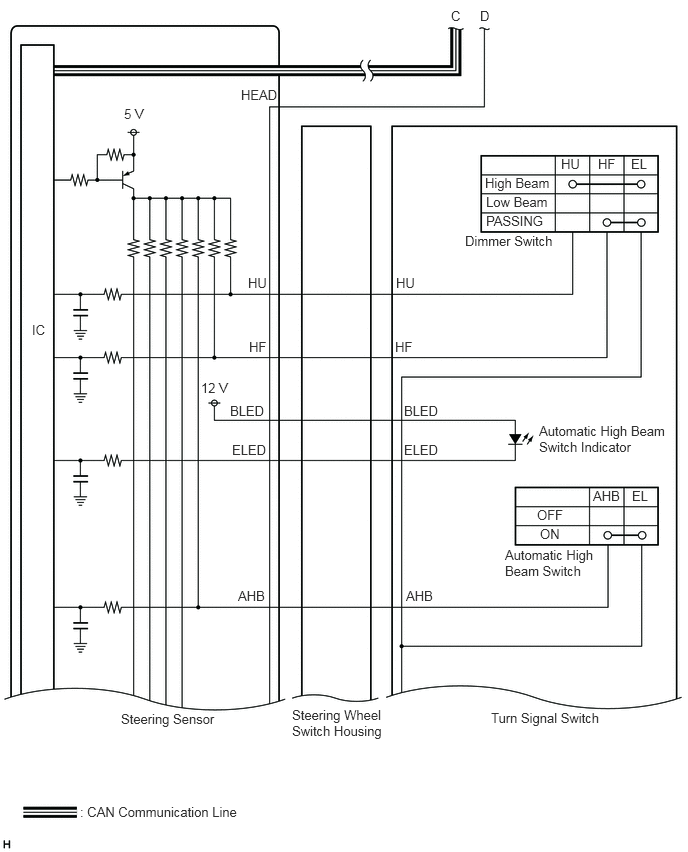

Fig 1: Lighting System Wiring Diagram (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

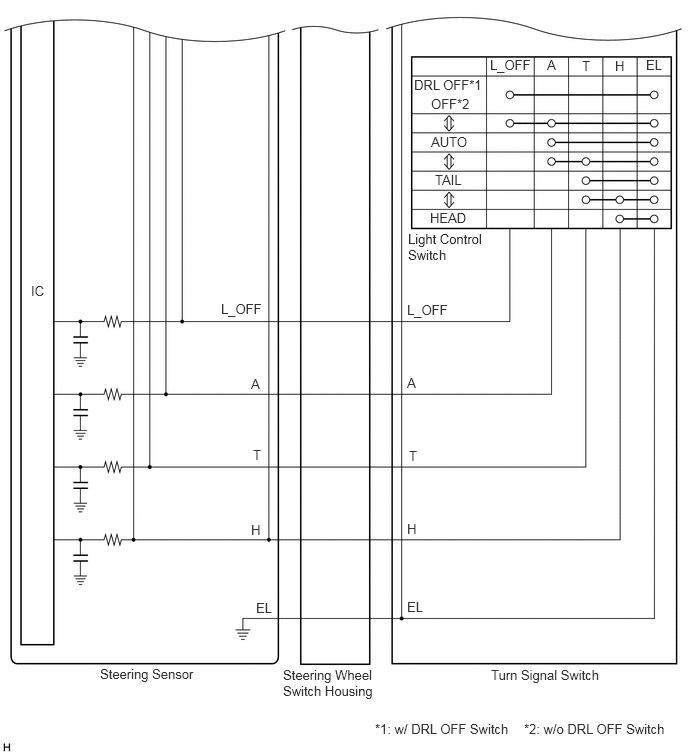

Fig 2: Lighting System Wiring Diagram (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

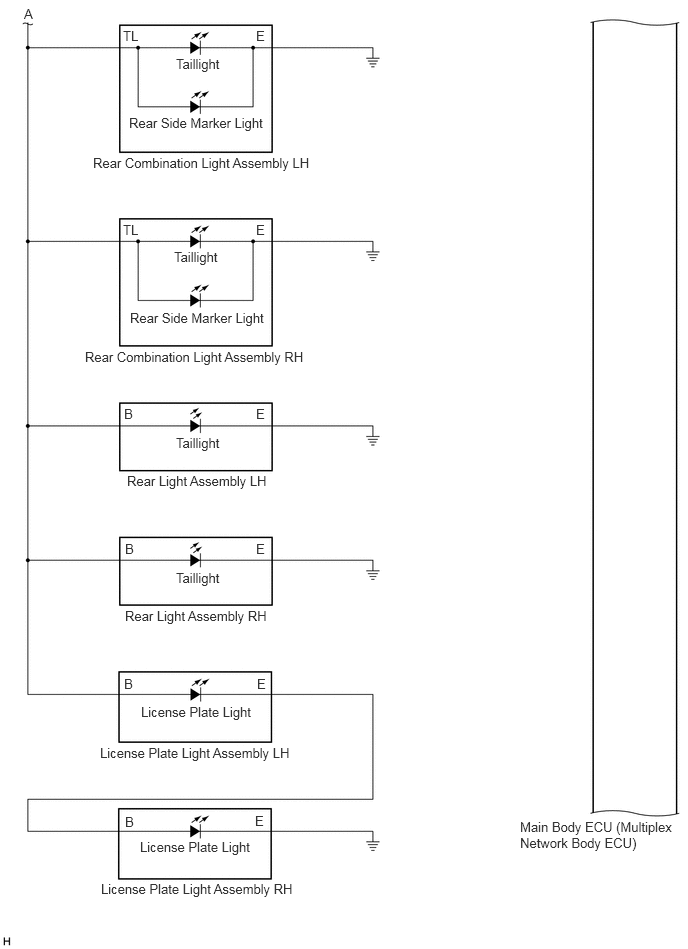

Fig 3: Lighting System Wiring Diagram (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

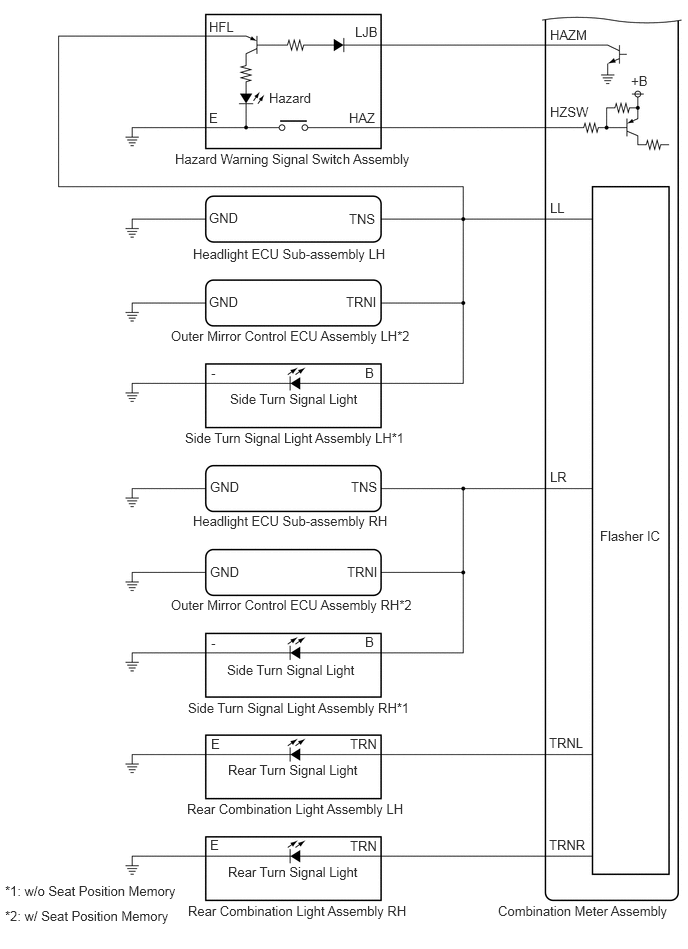

Fig 4: Lighting System Wiring Diagram (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

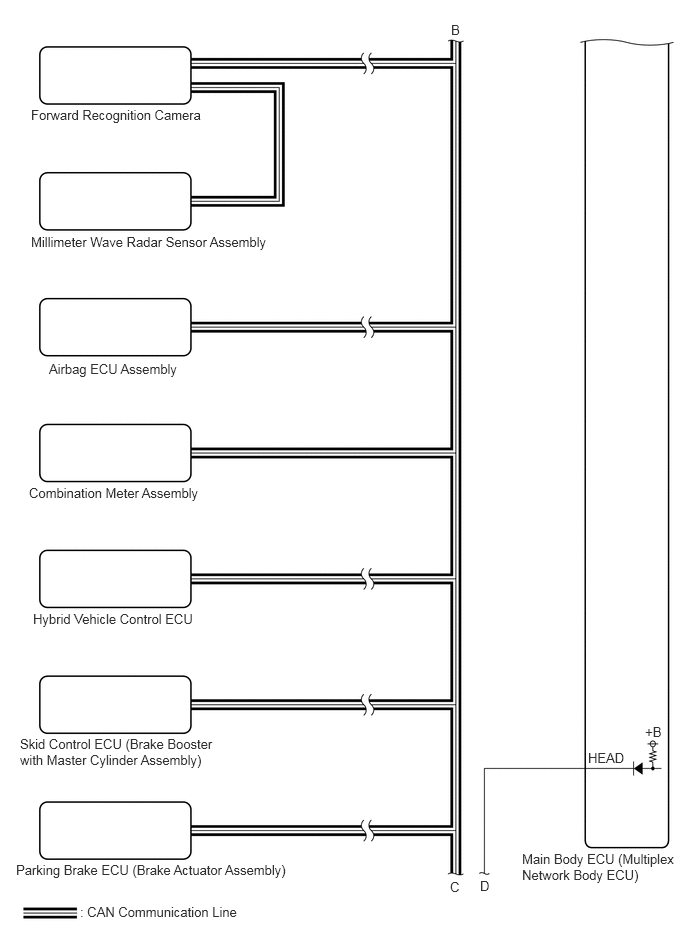

Fig 5: Lighting System Wiring Diagram (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

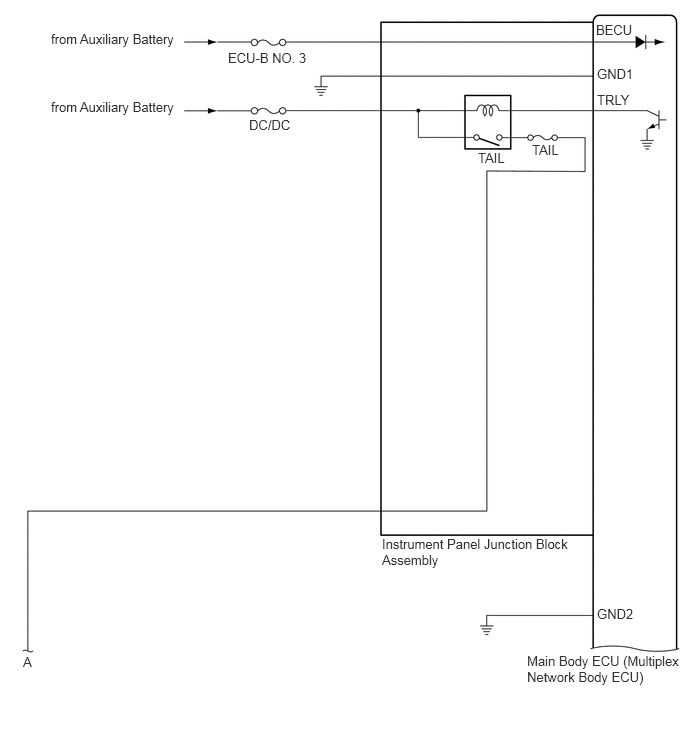

Fig 6: Lighting System Wiring Diagram (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

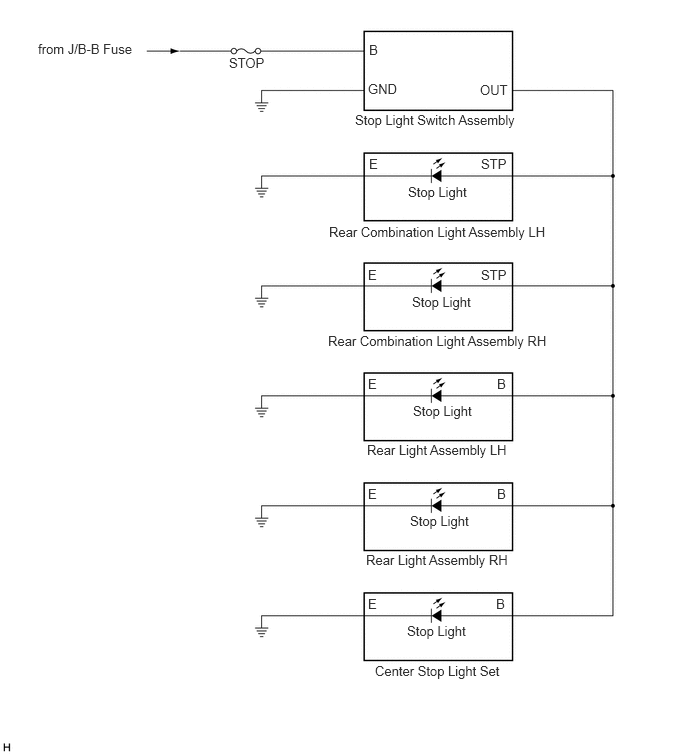

Fig 7: Lighting System Wiring Diagram (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Lighting System Wiring Diagram (8 Of 11)

Fig 9: Lighting System Wiring Diagram (9 Of 11)

Fig 10: Lighting System Wiring Diagram (10 Of 11)

Fig 11: Lighting System Wiring Diagram (11 Of 11)

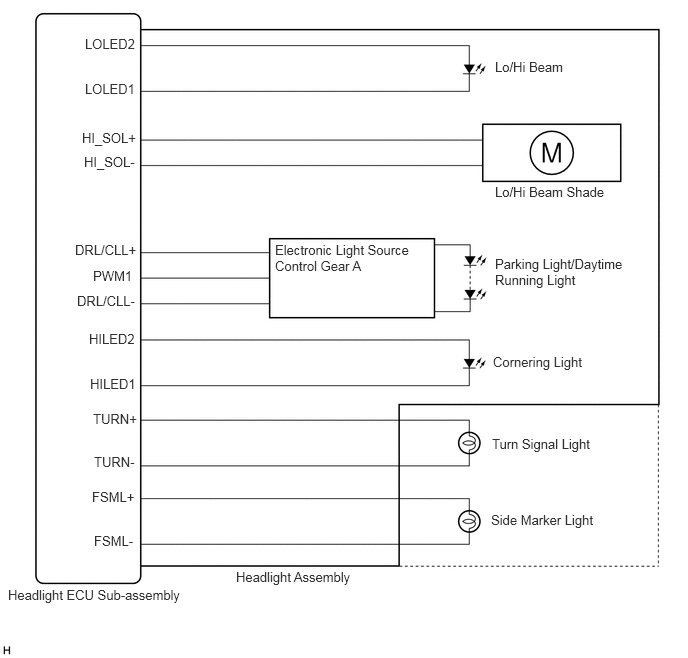

HEADLIGHT ASSEMBLY CIRCUIT (for LED Type Turn Signal Light)

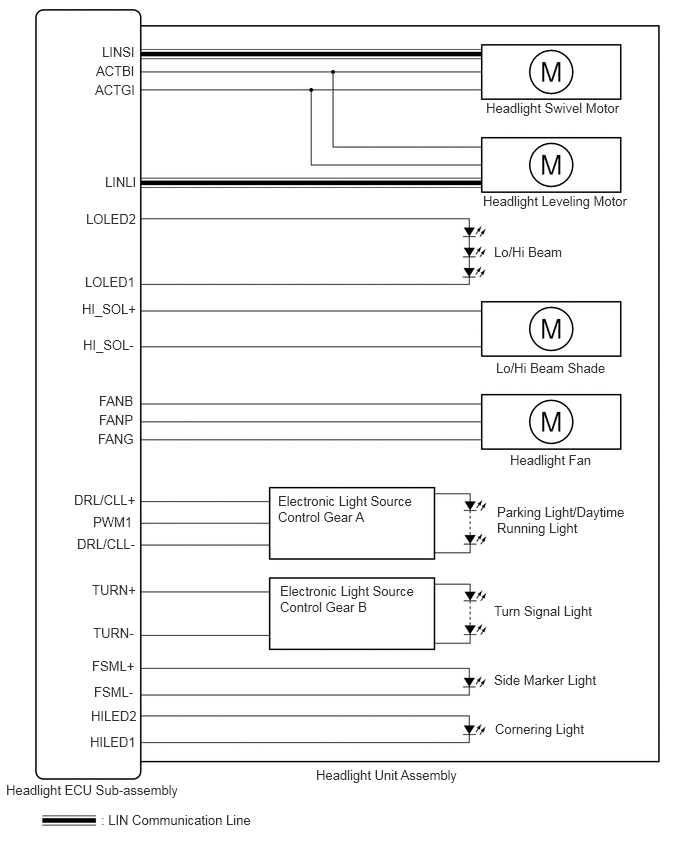

Fig 12: Headlight Assembly Circuit Diagram (for LED Type Turn Signal Light)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HEADLIGHT ASSEMBLY CIRCUIT (for Bulb Type Turn Signal Light) (for TMC Made)

Fig 13: Headlight Assembly Circuit Diagram (For Bulb Type Turn Signal Light) (For TMC Made)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HEADLIGHT ASSEMBLY CIRCUIT (for Bulb Type Turn Signal Light) (for TMMK Made)

Fig 14: Headlight Assembly Circuit Diagram (For Bulb Type Turn Signal Light) (For TMMK Made)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
