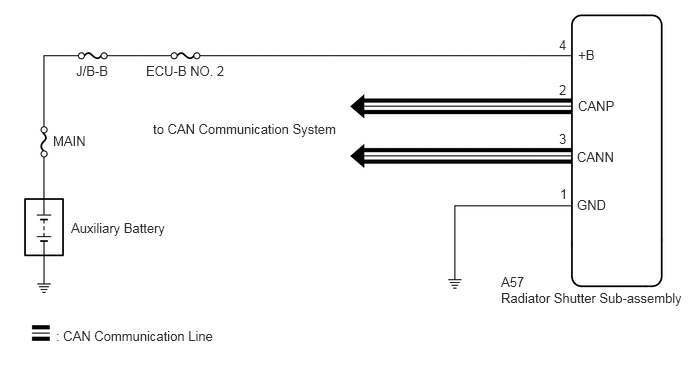

DTC P059F-73: Active Grille Air Shutter "A" Actuator Stuck Closed; DTC P05A0-72: Active Grille Air Shutter "A" Actuator Stuck Open [06/2018 - 08/2020]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
