Removal [06/2018 - 10/2019]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 8

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 7

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 9

  4. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 10

  5. REMOVE OIL PRESSURE SENSOR (OIL PRESSURE SENDER GAUGE ASSEMBLY)
    1. Disconnect the oil pressure sensor (oil pressure sender gauge assembly) connector.

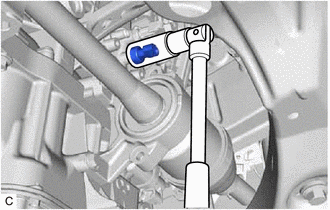

    2. Using a 27 mm deep socket wrench, remove the oil pressure sensor (oil pressure sender gauge assembly) from the cylinder block sub-assembly.
      GTY753716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
