Components [06/2018 - 10/2019]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

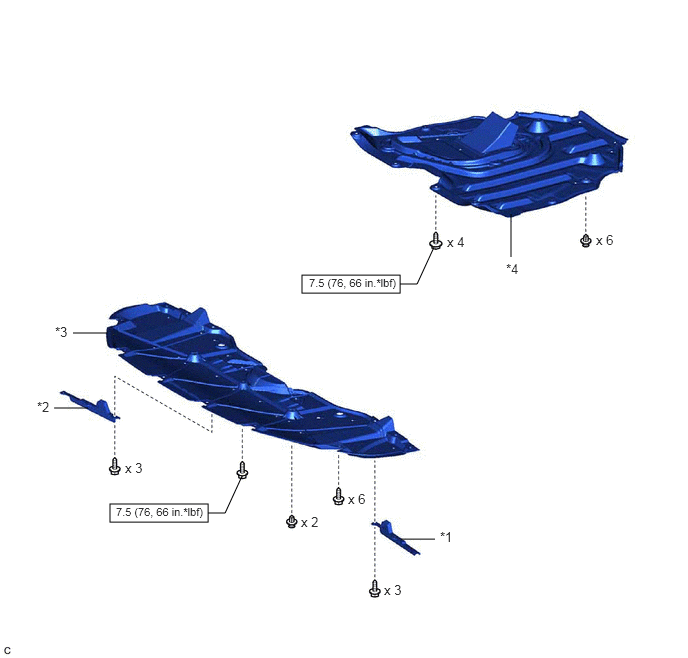

Fig 1: Oil Pressure Sensor Replacement Components With Torque Specifications [06/2018 - 10/2019] (1 Of 2)
| *1 | FRONT WHEEL OPENING EXTENSION PAD LH | *2 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *3 | NO. 1 ENGINE UNDER COVER | *4 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

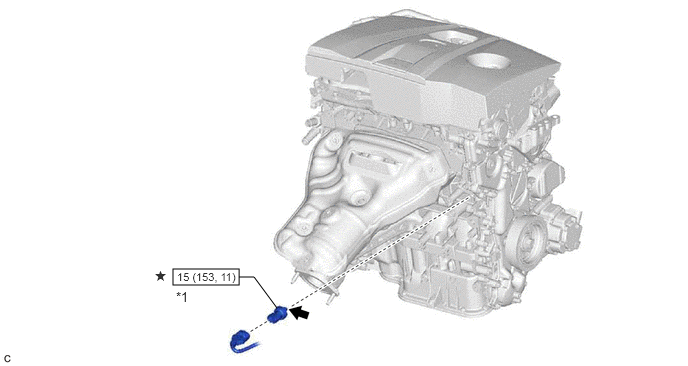

Fig 2: Oil Pressure Sensor Replacement Components With Torque Specifications [06/2018 - 10/2019] (2 Of 2)
| *1 | OIL PRESSURE SENSOR (OIL PRESSURE SENDER GAUGE ASSEMBLY) | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | Adhesive 1344 | ||
| * | Precoated part | - | - |
