Components [07/2019 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

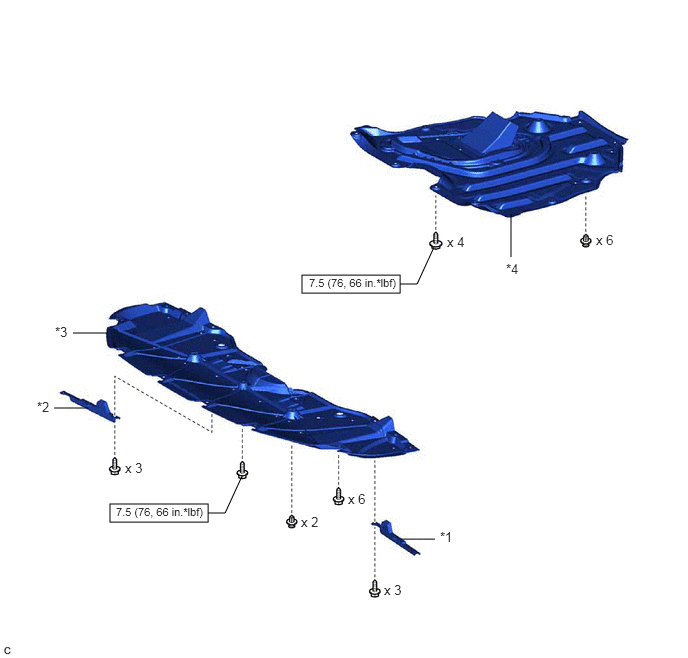

| *1 |
FRONT WHEEL OPENING EXTENSION PAD LH |
*2 |
FRONT WHEEL OPENING EXTENSION PAD RH |
| *3 |
NO. 1 ENGINE UNDER COVER |
*4 |
NO. 2 ENGINE UNDER COVER ASSEMBLY |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

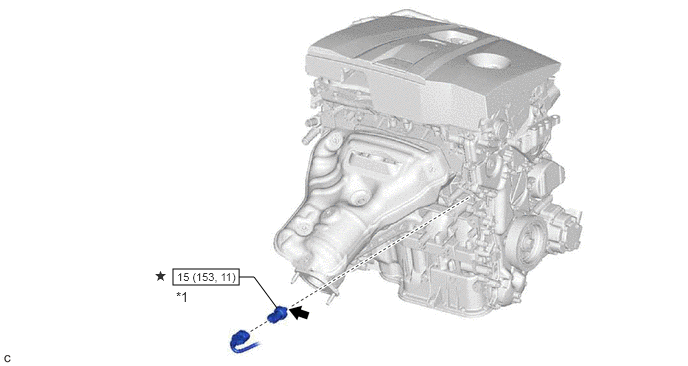

| *1 |
OIL PRESSURE AND TEMPERATURE SENSOR |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
 |
Adhesive 1344 |
| * |
Precoated part |
- |
- |
