Parts Location [08/2021 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

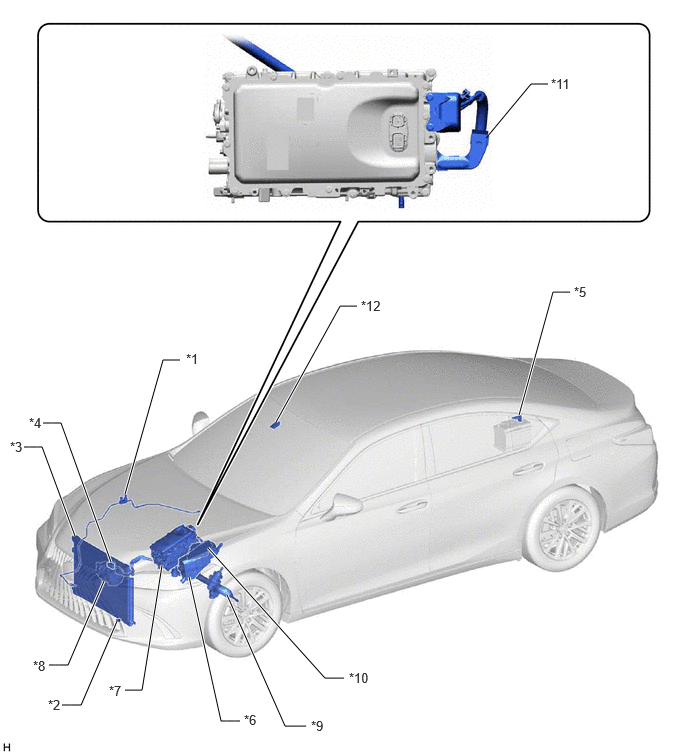

| *1 | AIR CONDITIONER PRESSURE SENSOR | *2 | THERMISTOR ASSEMBLY |
| *3 | COOLER CONDENSER ASSEMBLY | *4 | SMOG VENTILATION SENSOR |
| *5 | BATTERY STATE SENSOR ASSEMBLY | *6 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - HTR FUSE |
| *7 | INVERTER WITH CONVERTER ASSEMBLY | *8 | COMPRESSOR WITH MOTOR ASSEMBLY |
| *9 | POWER STEERING ECU (RACK AND PINION POWER STEERING GEAR ASSEMBLY) | *10 | ECM |
| *11 | HV AIR CONDITIONING WIRE | *12 | AIR CONDITIONING THERMISTOR ASSEMBLY |

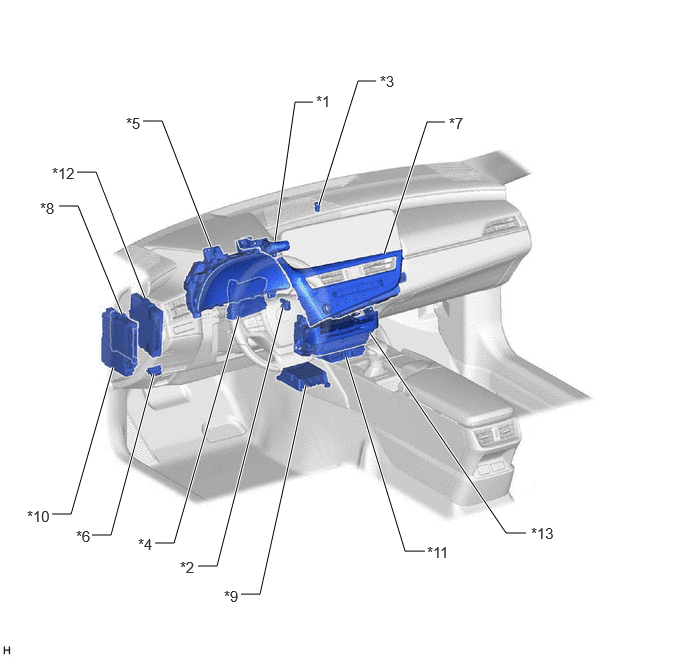

| *1 | ECO SWITCH ASSEMBLY (COMBINATION SWITCH ASSEMBLY) | *2 | COOLER (ROOM TEMP. SENSOR) THERMISTOR |
| *3 | AUTOMATIC LIGHT CONTROL SENSOR | *4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *5 | COMBINATION METER ASSEMBLY | *6 | DLC3 |
| *7 | AIR CONDITIONING CONTROL ASSEMBLY | *8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | AIRBAG ECU ASSEMBLY | *10 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE - ECU-IG1 NO. 3 FUSE - ECU-IG1 NO. 4 FUSE - ECU-ACC FUSE |
| *11 | DCM (TELEMATICS TRANSCEIVER) | *12 | HYBRID VEHICLE CONTROL ECU |
| *13 | RADIO RECEIVER ASSEMBLY | - | - |
| *1 | NO. 1 COOLER THERMISTOR | *2 | HEATER RADIATOR UNIT SUB-ASSEMBLY |
| *3 | AIR CONDITIONING RADIATOR ASSEMBLY | *4 | BLOWER ASSEMBLY |
| *5 | BLOWER MOTOR WITH FAN SUB-ASSEMBLY | *6 | COOLER EXPANSION VALVE |
| *7 | NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY | - | - |
| *1 | NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY | *2 | NO. 2 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY |
| *3 | NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY | *4 | AIR CONDITIONING HARNESS ASSEMBLY |
| *5 | NO. 3 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY | - | - |
