Installation [06/2018 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)
- Install a new gasket to the engine water pump assembly (water inlet housing).
HINT:
Be sure to clean the contact surfaces.
- Install the engine water pump assembly (water inlet housing) to the cylinder block assembly with the 4 bolts.
Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)
- Connect the engine water pump assembly (water inlet housing) connector.

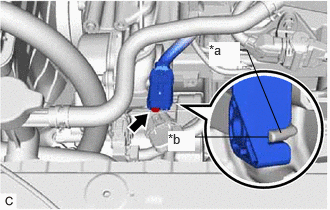

- Align the protrusion of the engine water pump assembly (water inlet housing) with the cutout in the sensor wire clamp.
*a Protrusion *b Cutout - Using an 8 mm socket wrench, connect the sensor wire to the engine water pump assembly (water inlet housing) with the bolt.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
- Connect the sensor wire connector.
- Install a new gasket to the engine water pump assembly (water inlet housing).
- INSTALL WATER INLET WITH THERMOSTAT SUB-ASSEMBLY
Refer to INSTALLATION [06/2018 - 08/2021] , or refer to INSTALLATION [08/2021 - ]
- INSTALL INTAKE MANIFOLD
Refer to INSTALLATION [06/2018 - 08/2021] , or refer to INSTALLATION [08/2021 - ]
