Components [06/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

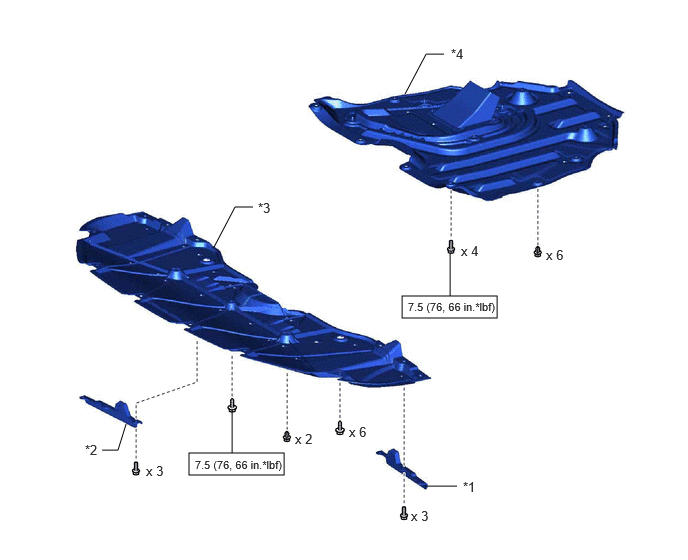

Fig 1: Radiator Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT WHEEL OPENING EXTENSION PAD LH	*2	FRONT WHEEL OPENING EXTENSION PAD RH
*3	NO. 1 ENGINE UNDER COVER	*4	NO. 2 ENGINE UNDER COVER ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

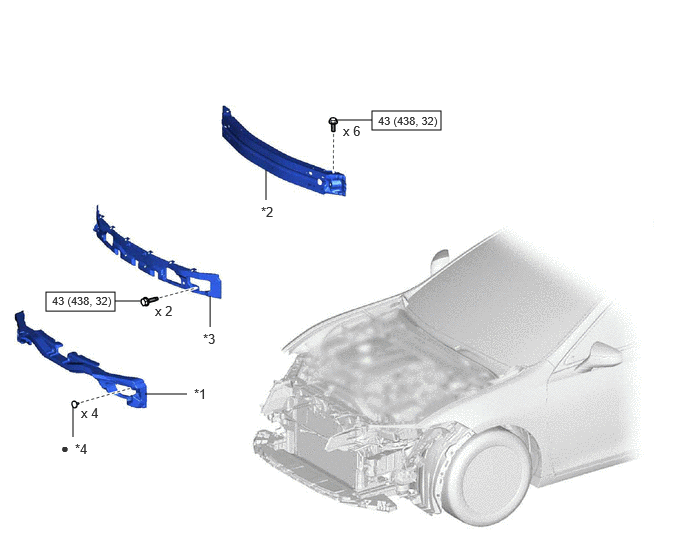

Fig 2: Radiator Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


*1	FRONT BUMPER ENERGY ABSORBER	*2	FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
*3	NO. 2 FRONT BUMPER MOUNTING BRACKET	*4	CLIP
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

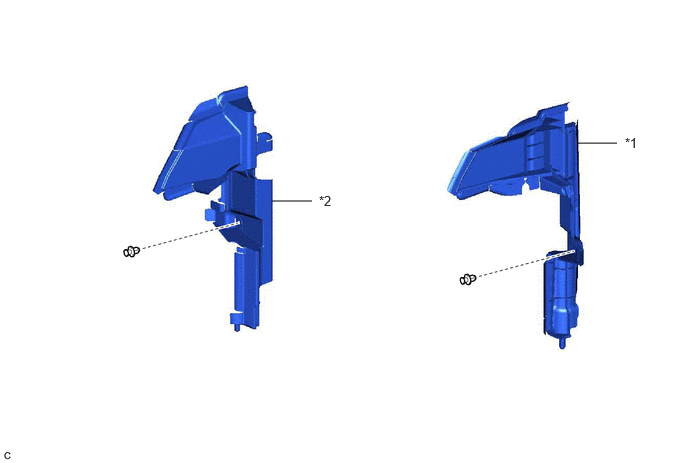

Fig 3: Radiator Replacement Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NO. 1 RADIATOR AIR GUIDE LH

NO. 1 RADIATOR AIR GUIDE RH

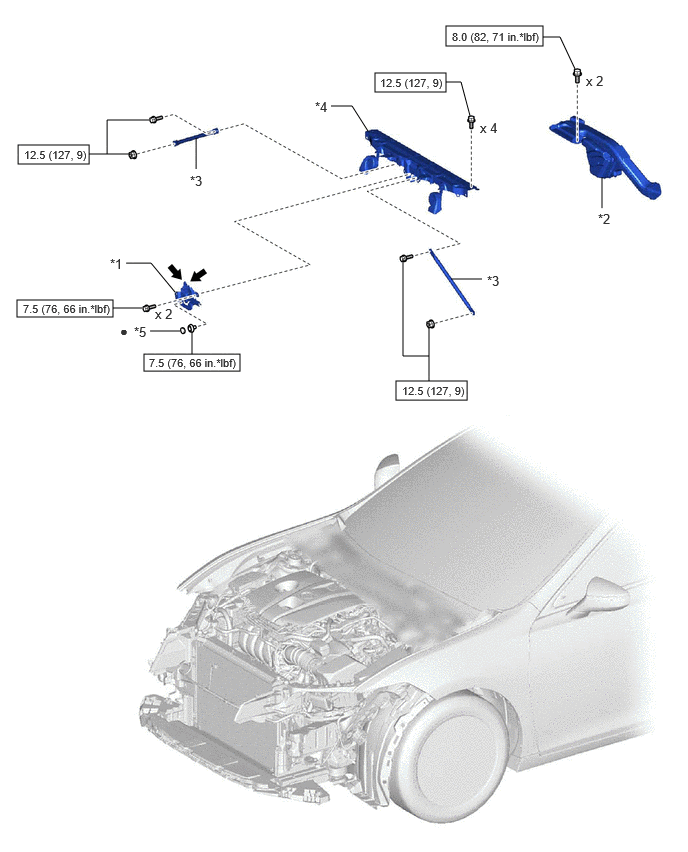

Fig 4: Radiator Replacement Components With Torque Specifications (4 Of 5)

*1	HOOD LOCK ASSEMBLY	*2	INLET AIR CLEANER ASSEMBLY
*3	UPPER RADIATOR MOUNTING BRACKET	*4	UPPER RADIATOR SUPPORT SUB-ASSEMBLY
*5	HOOD LOCK NUT CAP	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	MP grease	-	-

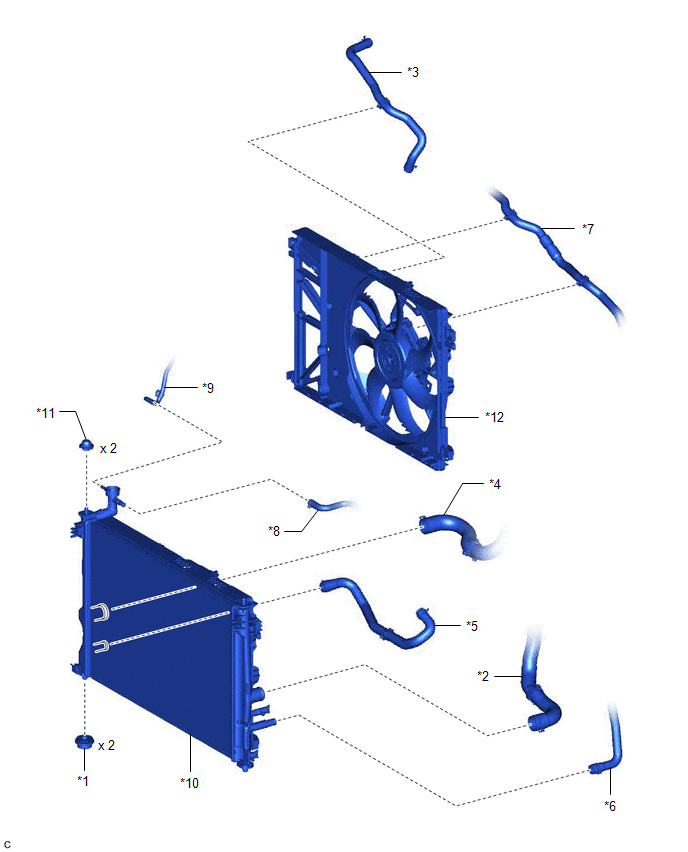

Fig 5: Radiator Replacement Components (5 Of 5)

*1	LOWER RADIATOR SUPPORT	*2	NO. 1 RADIATOR HOSE
*3	NO. 2 INVERTER COOLING HOSE	*4	NO. 2 RADIATOR HOSE
*5	NO. 3 INVERTER COOLING HOSE	*6	NO. 4 INVERTER COOLING HOSE
*7	NO. 5 INVERTER COOLING HOSE	*8	NO. 5 WATER BY-PASS HOSE
*9	NO. 6 WATER BY-PASS HOSE	*10	RADIATOR ASSEMBLY
*11	RADIATOR SUPPORT CUSHION	*12	FAN WITH MOTOR ASSEMBLY
