Components [06/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

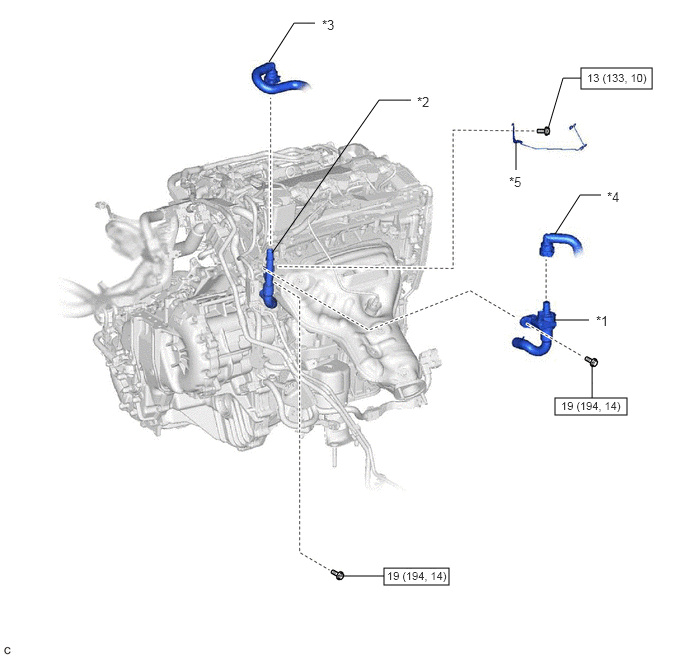

Fig 1: Flow Shutting Valve Replacement Components With Torque Specifications

*1	FLOW SHUTTING VALVE (WATER BY-PASS HOSE ASSEMBLY)	*2	NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY
*3	OUTLET HEATER HOSE	*4	INLET HEATER HOSE
*5	WIRE HARNESS CLAMP BRACKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
