Removal [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 18 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 18 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 18 [09/2022 - ]

  3. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 1 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 1 [09/2022 - ]

  4. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 6 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 6 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 6 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 6 [09/2022 - ]

  5. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
    1. Disconnect the mass air flow meter sub-assembly connector.

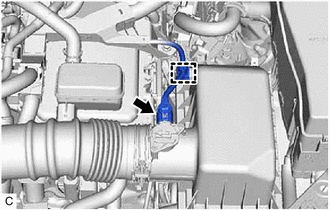

      GTY762846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the wire harness clamp.
    3. Slide the clip and disconnect the No. 2 ventilation hose from the cylinder head cover sub-assembly.

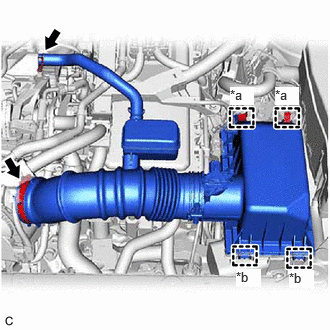

      GTY753845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Air Cleaner Cap Clamp
      *b Guide
    4. Disengage the 2 air cleaner cap clamps.
    5. Disengage the 2 guides to separate the air cleaner cap sub-assembly from the air cleaner case sub-assembly.
    6. Loosen the hose clamp and remove the air cleaner cap with air cleaner hose from the throttle body with motor assembly.
  6. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY
    1. Disconnect the throttle body with motor assembly connector.

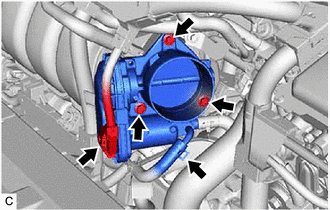

      GTY762844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the clip and disconnect the No. 5 water by-pass hose from the throttle body with motor assembly.
    3. Using an 8 mm socket wrench, remove the 3 bolts and separate the throttle body with motor assembly from the intake manifold.
    4. Slide the clip and disconnect the No. 6 water by-pass hose to remove the throttle body with motor assembly.
      NOTE:

      If the throttle body with motor assembly has been struck or dropped, replace it.

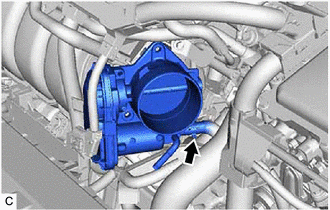

      GTY762842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE THROTTLE BODY GASKET
    1. Remove the throttle body gasket from the intake manifold.

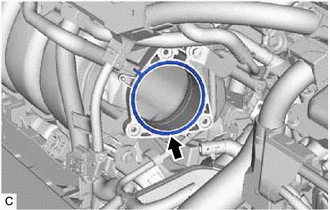

      GTY762841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
