Removal [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 18 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 18 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 18 [09/2022 - ]

  2. REMOVE IGNITION COIL ASSEMBLY

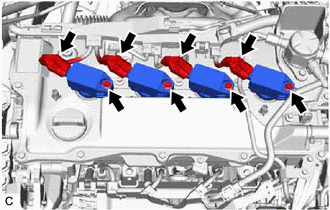

    1. Disconnect the 4 ignition coil assembly connectors.
      GTY762826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using an 8 mm socket wrench, remove the 4 bolts and 4 ignition coil assemblies from the cylinder head cover sub-assembly.
      NOTE:

      If an ignition coil assembly has been struck or dropped, replace it.

      HINT:

      Arrange the removed parts in the correct order.

  3. REMOVE SPARK PLUG

    Refer to PROCEDURE - Step 3
