Installation [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL NO. 2 ECM BRACKET
1. Install the No. 2 ECM bracket to the ECM with the 2 screws.
  Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)
INSTALL NO. 1 ECM BRACKET
1. Install the No. 1 ECM bracket to the ECM with the 2 screws.
  Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

INSTALL ECM

Install the ECM with the 2 nuts in the order shown in the illustration.
Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

NOTE:
If the ECM has been struck or dropped, replace it.

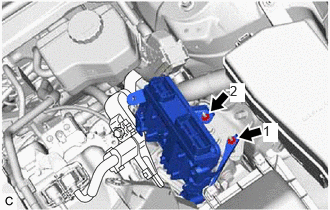

Fig 1: ECM Tightening Sequence
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

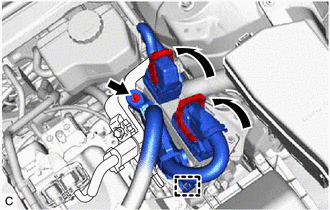

Engage the clamp.

Install the engine wire to the No. 2 ECM bracket with the bolt.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
Connect the 2 ECM connectors and rotate the 2 levers to lock them.
NOTE:
- When connecting the ECM connectors, make sure that the connecting parts of the ECM connectors are free of dirt, water and other foreign matter.
- Be sure to securely connect the ECM connectors.

CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 2
PERFORM INITIALIZATION
Refer to PRECAUTION [06/2018 - 08/2020] , or refer to PRECAUTION [08/2020 - 08/2021] , or refer to PRECAUTION [08/2021 - 09/2022] , or refer to PRECAUTION [09/2022 - ]
