Removal [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 18 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 18 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 18 [09/2022 - ]

  2. REMOVE AIR FUEL RATIO SENSOR
    WARNING:

    To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.

    GTY563663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the 3 wire harness clamps.

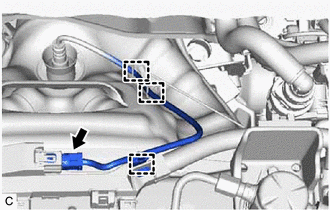

      GTY762817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the air fuel ratio sensor connector.

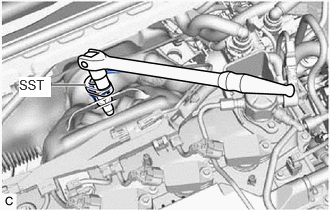

    3. Using SST, remove the air fuel ratio sensor from the exhaust manifold (TWC: Front Catalyst).
      • SST: 09224-00012
      NOTE:

      If the air fuel ratio sensor has been struck or dropped, replace it.

      GTY768980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
