DTC U11D0-87: Lost Local Communication with MET Missing Message; DTC U11D1-87: Lost Local Communication with HUD Missing Message; DTC U11D2-87: Lost Local Communication with Clock Missing Message; DTC U11D3-87: Lost Local Communication with Qi Missing Message [09/2022 - ]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 300h, 2024 Lexus ES 250, 2023 Lexus ES 350, and 2023 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

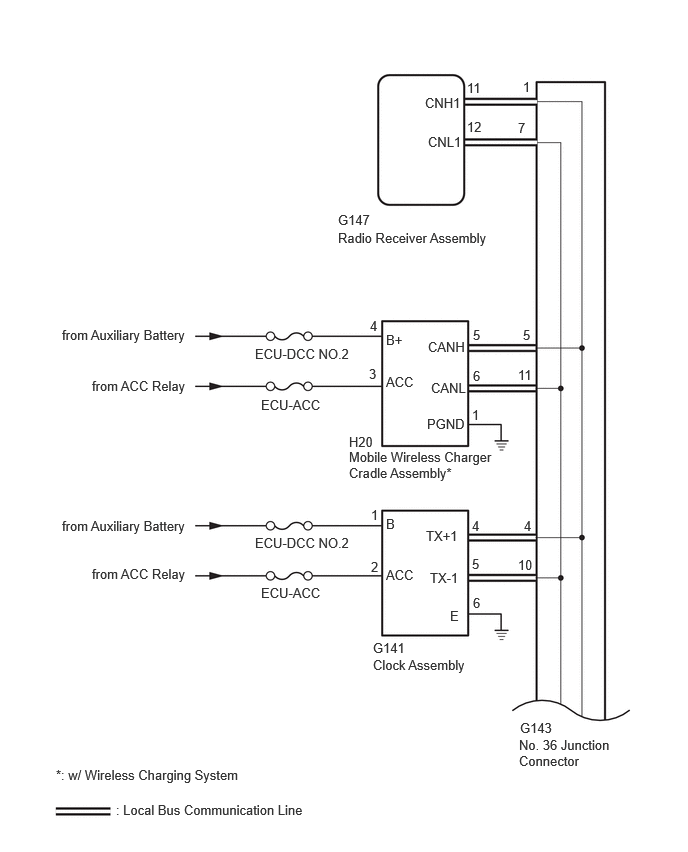

GTY1137124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

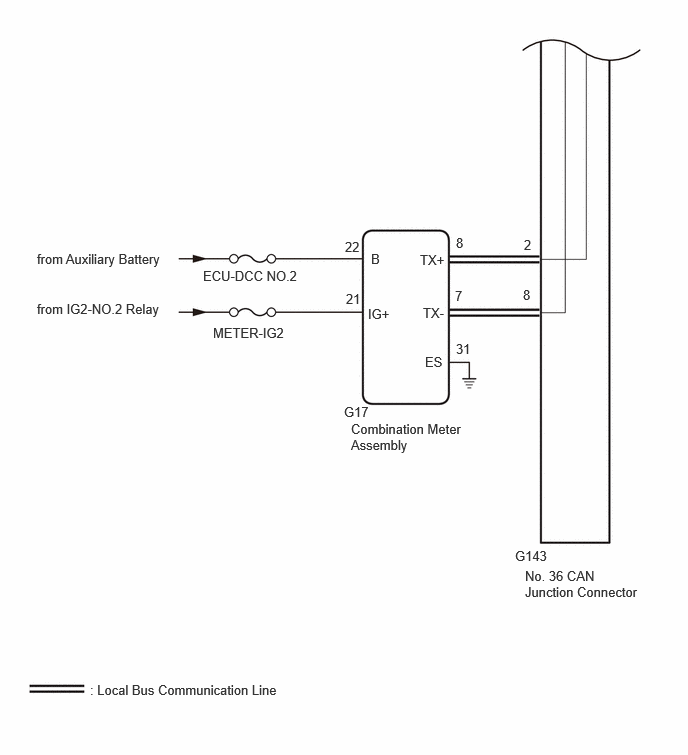

GTY1136176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
