DTC B15C3-71: Speaker Output Short Actuator Stuck [09/2022 - ]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 300h, 2024 Lexus ES 250, 2023 Lexus ES 350, and 2023 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

w/o "Mark Levinson" sound system

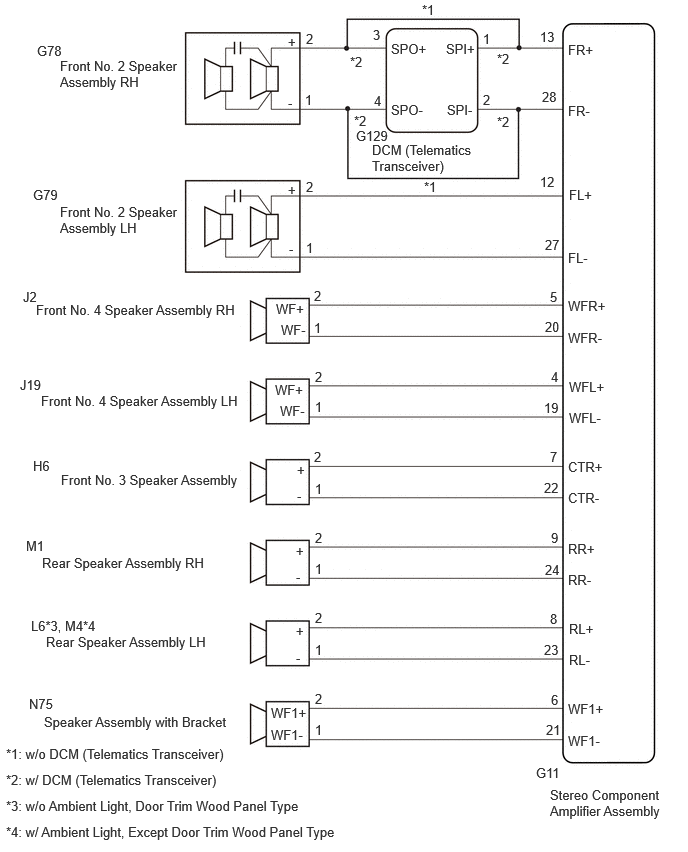

GTY1133937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ "Mark Levinson" sound system

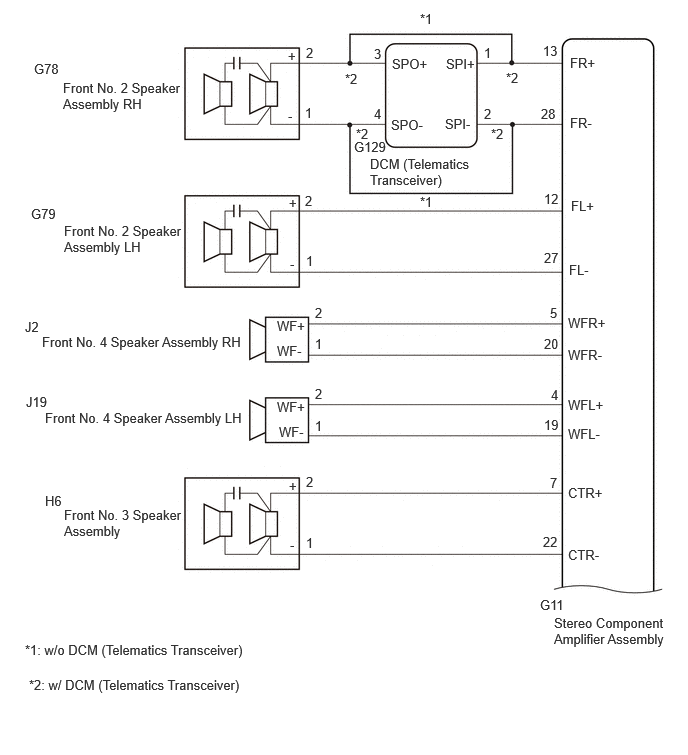

GTY1137597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

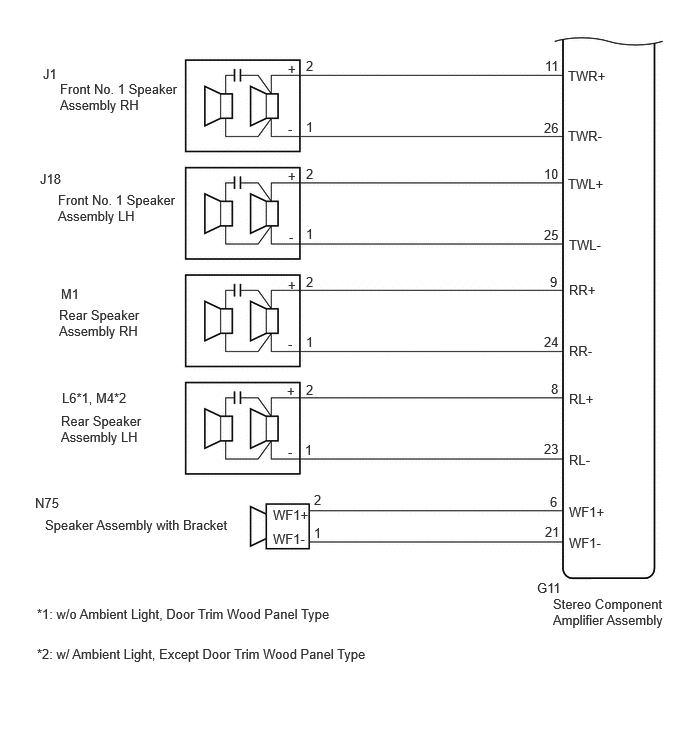

GTY1129184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
