DTC C1311: Open Circuit in Main Relay 1; DTC C1312: Short Circuit in Main Relay 1 [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. PERFORM ACTIVE TEST USING TECHSTREAM (MAIN RELAY)
    1. Select the Active Test on the Techstream.

      Refer to DATA LIST / ACTIVE TEST [06/2018 - ]

      Chassis > ABS/VSC/TRAC > Active Test

      Tester Display Measurement Item Control Range Diagnostic Note
      ECB Main Relay Main relay Relay ON/OFF ECB: Electronically Controlled Brake System

      Chassis > ABS/VSC/TRAC > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      ECB Main Relay Main relay operation request ON or OFF ON: Relay on
      OFF: Relay off      		 ECB: Electronically Controlled Brake System

      Chassis > ABS/VSC/TRAC > Active Test

      Active Test Display
      ECB Main Relay
      Data List Display
      ECB Main Relay
    2. Check that the condition of the main relay observed on the Techstream changes according to Techstream operation.

      Result

      Result Proceed to
      Main relay in the Data List turns ON/OFF using the Active Test. A
      Main relay in the Data List does not change using the Active Test. B

    Result:

    B

    See step  4

    Result:

    A

    See step  2

  2. CHECK HARNESS AND CONNECTOR (BS TERMINAL)
    1. Turn the power switch off.

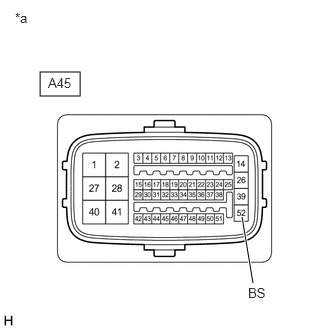

      GTY828104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Skid Control ECU (Brake Booster with Master Cylinder Assembly))
    2. Make sure that there is no looseness at the locking part and the connecting part of the connector.

      OK

      The connector is securely connected.

    3. Disconnect the A45 skid control ECU (brake booster with master cylinder assembly) connector.
    4. Check both the connector case and the terminals for deformation and corrosion.

      OK

      No deformation or corrosion.

    5. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      A45-52 (BS) - Body ground Always 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (BS CIRCUIT)

    Result:

    OK

    See step  3

  3. RECONFIRM DTC
    1. Reconnect the A45 skid control ECU (brake booster with master cylinder assembly) connector.
    2. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [06/2018 - ]

      Chassis > ABS/VSC/TRAC > Clear DTCs

    3. Turn the power switch off.
    4. Turn the power switch on (IG).
    5. Check if the same DTC is output.

      Refer to DTC CHECK / CLEAR [06/2018 - ]

      Chassis > ABS/VSC/TRAC > Trouble Codes

      Result

      Result Proceed to
      DTCs C1311 and C1312 are not output. A
      DTCs C1311 and/or C1312 are output. B

    Result:

    A

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [06/2018 - ]

    Result:

    B

    REPLACE BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]

  4. CHECK HARNESS AND CONNECTOR (+BI TERMINAL)
    1. Turn the power switch off.

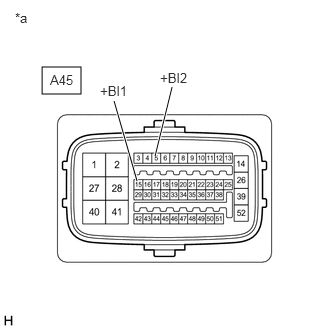

      GTY778870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Skid Control ECU (Brake Booster with Master Cylinder Assembly))
    2. Make sure that there is no looseness at the locking part and the connecting part of the connector.

      OK

      The connector is securely connected.

    3. Disconnect the A45 skid control ECU (brake booster with master cylinder assembly) connector.
    4. Check both the connector case and the terminals for deformation and corrosion.

      OK

      No deformation or corrosion.

    5. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      A45-15 (+BI1) - Body ground Always 11 to 14 V
      A45-5 (+BI2) - Body ground Always 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (+BI CIRCUIT)

    Result:

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (BS TERMINAL)
    1. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      A45-52 (BS) - Body ground Always 11 to 14 V
      GTY828104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Skid Control ECU (Brake Booster with Master Cylinder Assembly))

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (BS CIRCUIT)
