Parts Location [09/2022 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 300h, 2024 Lexus ES 250, 2023 Lexus ES 350, and 2023 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

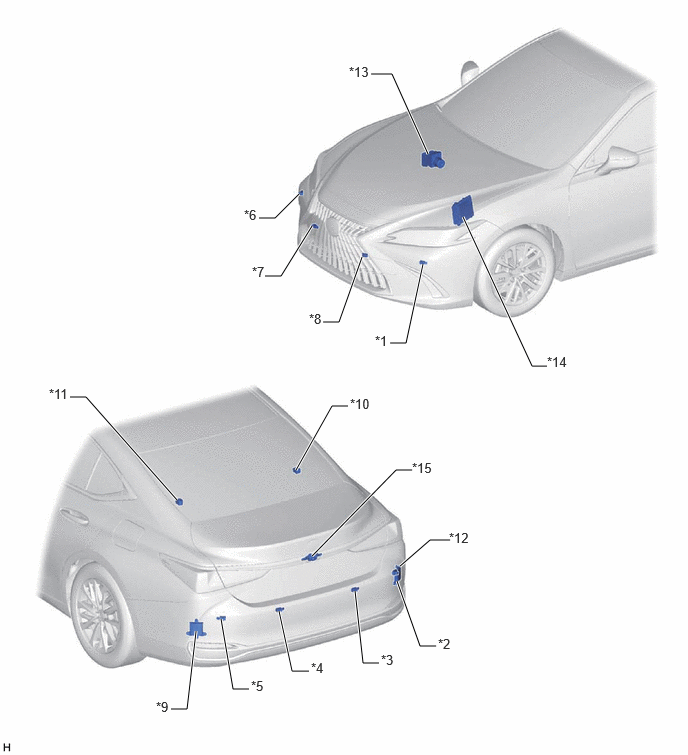

for Gasoline Model
| *1 | FRONT CORNER ULTRASONIC SENSOR LH | *2 | REAR CORNER ULTRASONIC SENSOR RH |
| *3 | REAR CENTER ULTRASONIC SENSOR RH | *4 | REAR CENTER ULTRASONIC SENSOR LH |
| *5 | REAR CORNER ULTRASONIC SENSOR LH | *6 | FRONT CORNER ULTRASONIC SENSOR RH |
| *7 | FRONT CENTER ULTRASONIC SENSOR RH | *8 | FRONT CENTER ULTRASONIC SENSOR LH |
| *9 | BLIND SPOT MONITOR SENSOR LH (A) | *10 | NO. 2 CLEARANCE WARNING BUZZER |
| *11 | RCTA BUZZER (BLIND SPOT MONITOR BUZZER) | *12 | BLIND SPOT MONITOR SENSOR RH (B) |
| *13 | SKID CONTROL ECU ASSEMBLY | *14 | ECM |
| *15 | REAR TELEVISION CAMERA ASSEMBLY | - | - |

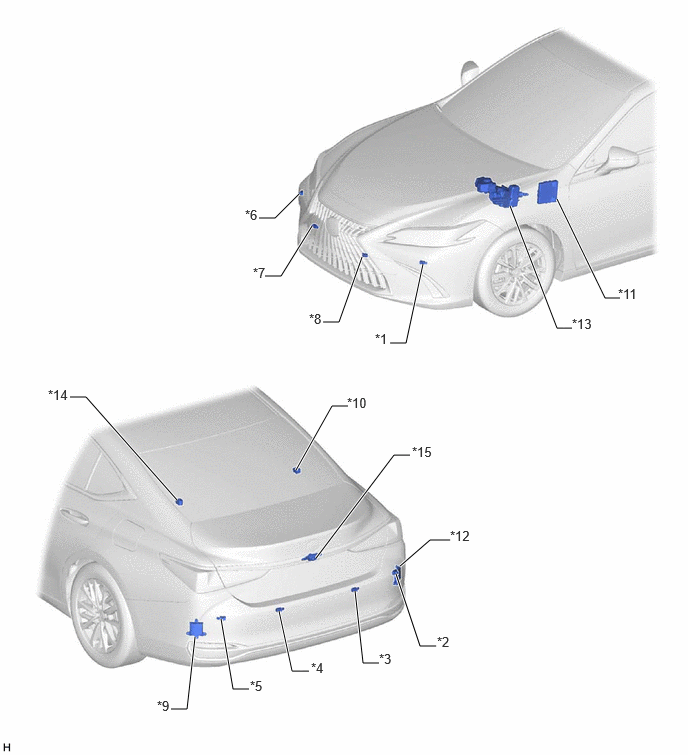

for HV Model
| *1 | FRONT CORNER ULTRASONIC SENSOR LH | *2 | REAR CORNER ULTRASONIC SENSOR RH |
| *3 | REAR CENTER ULTRASONIC SENSOR RH | *4 | REAR CENTER ULTRASONIC SENSOR LH |
| *5 | REAR CORNER ULTRASONIC SENSOR LH | *6 | FRONT CORNER ULTRASONIC SENSOR RH |
| *7 | FRONT CENTER ULTRASONIC SENSOR RH | *8 | FRONT CENTER ULTRASONIC SENSOR LH |
| *9 | BLIND SPOT MONITOR SENSOR LH (A) | *10 | NO. 2 CLEARANCE WARNING BUZZER |
| *11 | HYBRID VEHICLE CONTROL ECU ASSEMBLY | *12 | BLIND SPOT MONITOR SENSOR RH (B) |
| *13 | SKID CONTROL ECU ASSEMBLY | *14 | RCTA BUZZER (BLIND SPOT MONITOR BUZZER) |
| *15 | REAR TELEVISION CAMERA ASSEMBLY | - | - |
| *A | w/ Headup Display System | *B | w/ Rear Camera Detection Function |

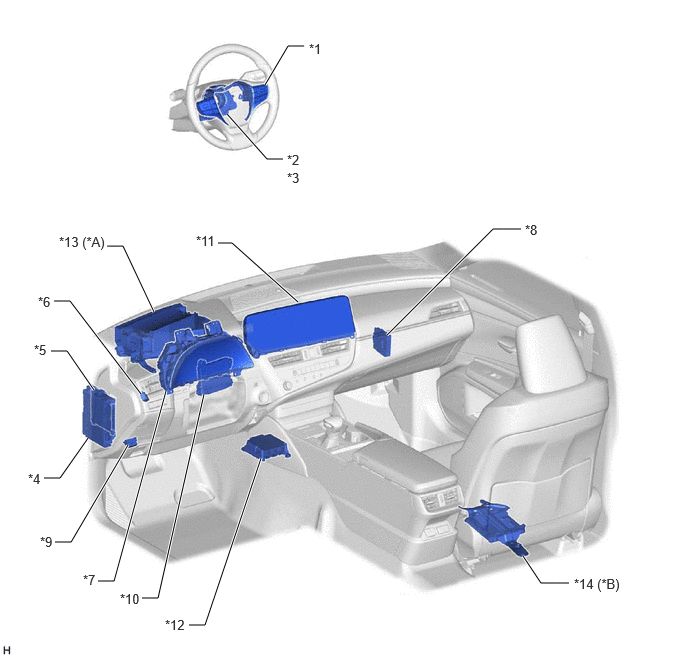

| *1 | STEERING PAD SWITCH ASSEMBLY | *2 | SPIRAL CABLE SUB-ASSEMBLY |
| *3 | STEERING SENSOR | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 4 FUSE |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | NO. 1 CLEARANCE WARNING BUZZER |
| *7 | COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY - CLEARANCE SONAR OFF INDICATOR - RCTA OFF INDICATOR |
*8 | CLEARANCE WARNING ECU ASSEMBLY |
| *9 | DLC3 | *10 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *11 | MULTI-DISPLAY ASSEMBLY | *12 | YAW RATE AND ACCELERATION SENSOR |
| *13 | HEADUP DISPLAY (METER MIRROR SUB-ASSEMBLY) | *14 | PARKING ASSIST ECU |
