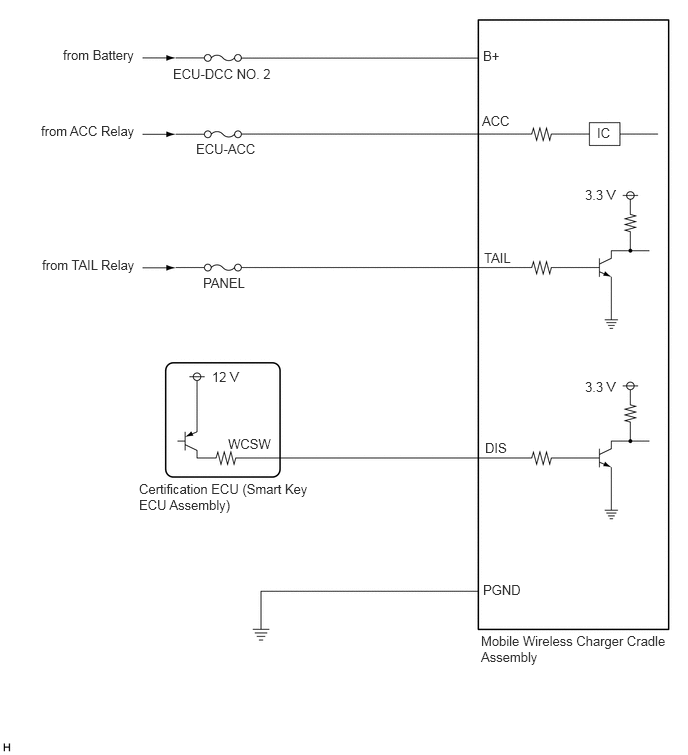

Home >> Lexus >> 2019 >> ES 350 Luxury >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wireless Charging System (Except Hybrid) - Diagnostics & Circuit Tests >> WIRELESS CHARGING SYSTEM (for Gasoline Model) >> System Diagram [06/2018 - 09/2022] >> System Diagram [06/2018 - 09/2022]
