Components [06/2018 - ]

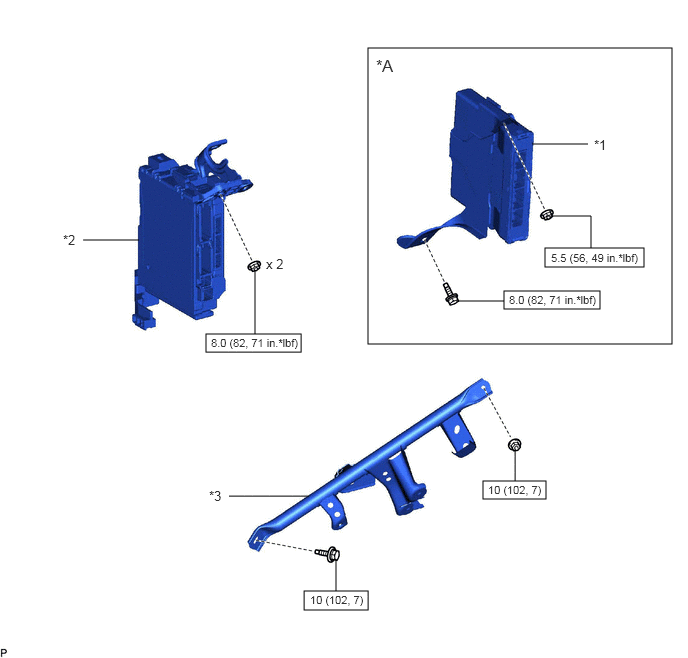

Fig 1: Main Body ECU Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for HV Model	-	-
*1	HYBRID VEHICLE CONTROL ECU	*2	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU
*3	NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

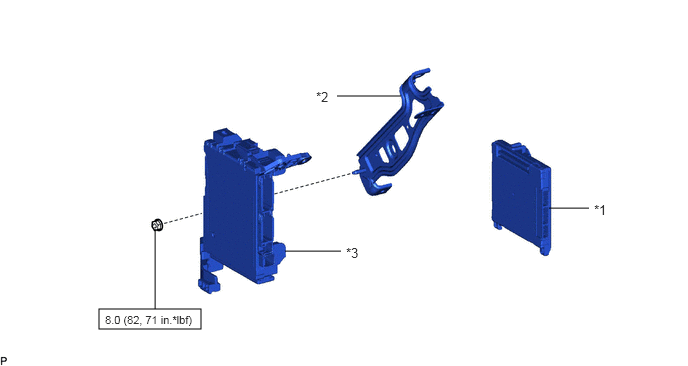

Fig 2: Main Body ECU Replacement Components With Torque Specifications (2 Of 2)

*1	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*2	WIRING HARNESS CLAMP BRACKET
*3	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
