Removal [06/2018 - ]: Procedure

  1. REMOVE REAR SEAT CUSHION ASSEMBLY (for HV Model)

    Refer to PROCEDURE - Step 3 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 3 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 3 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 3 [09/2022 - ]

  2. REMOVE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)

    Refer to PROCEDURE - Step 4 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 4 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 4 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 4 [09/2022 - ]

  3. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 5 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 5 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 5 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 5 [09/2022 - ]

  4. REMOVE NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY
    1. for HV Model:

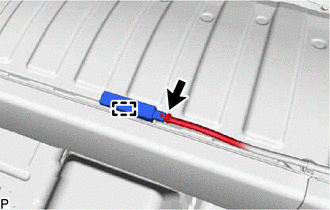

      GTY807789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector.
      2. Disengage the clamp to remove the No. 2 indoor electrical key antenna assembly.
        NOTE:

        Be careful when removing the No. 2 indoor electrical key antenna assembly. If the No. 2 indoor electrical key antenna assembly is dropped, replace it with a new one.

    2. for Gasoline Model:

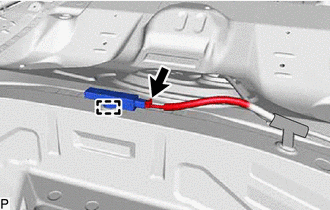

      GTY807788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector.
      2. Disengage the clamp to remove the No. 2 indoor electrical key antenna assembly.
        NOTE:

        Be careful when removing the No. 2 indoor electrical key antenna assembly. If the No. 2 indoor electrical key antenna assembly is dropped, replace it with a new one.
