Components [08/2021 - ]

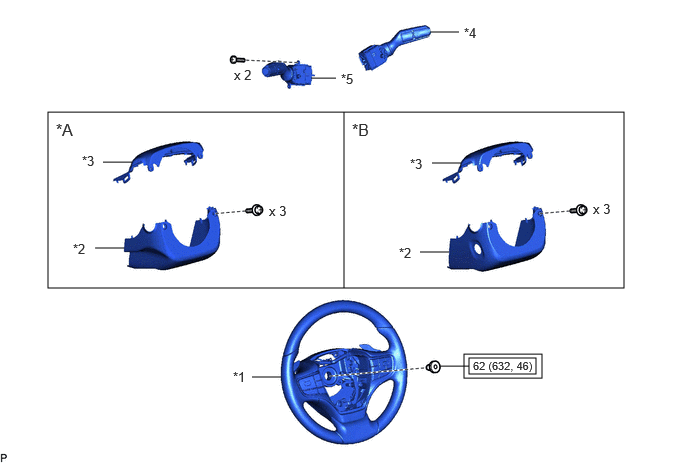

Fig 1: Instrument Panel Safety Pad Replacement Components With Torque Specifications [08/2021 - ] (1 Of 10)
| *A | for Manual Tilt and Manual Telescopic Steering Column | *B | for Power Tilt and Power Telescopic Steering Column |
| *1 | STEERING WHEEL ASSEMBLY | *2 | LOWER STEERING COLUMN COVER SUB-ASSEMBLY |
| *3 | UPPER STEERING COLUMN COVER | *4 | WINDSHIELD WIPER SWITCH ASSEMBLY |
| *5 | TURN SIGNAL SWITCH | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

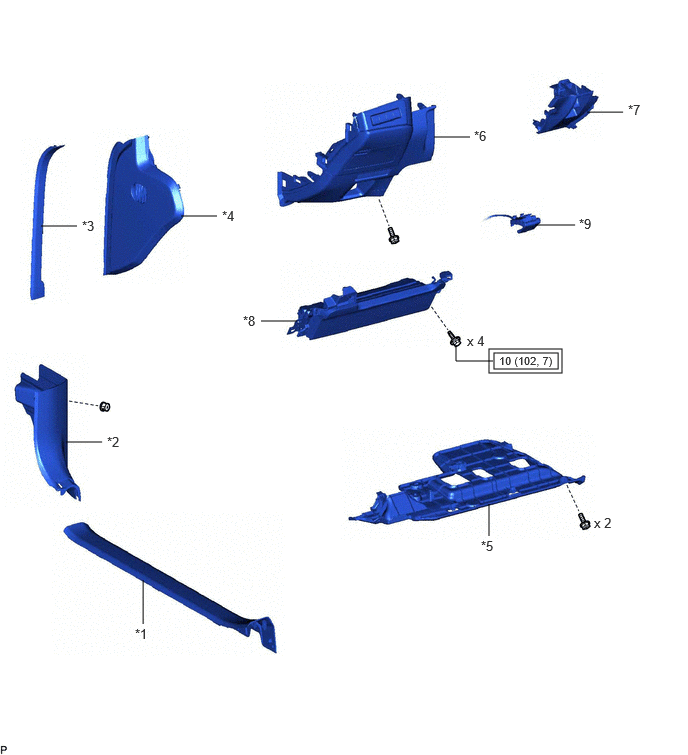

Fig 2: Instrument Panel Safety Pad Replacement Components With Torque Specifications [08/2021 - ] (2 Of 10)
| *1 | FRONT DOOR SCUFF PLATE LH | *2 | COWL SIDE TRIM BOARD LH |
| *3 | FRONT DOOR OPENING TRIM COVER LH | *4 | INSTRUMENT SIDE PANEL LH |
| *5 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | *6 | LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY |
| *7 | LOWER INSTRUMENT PANEL | *8 | LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY |
| *9 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

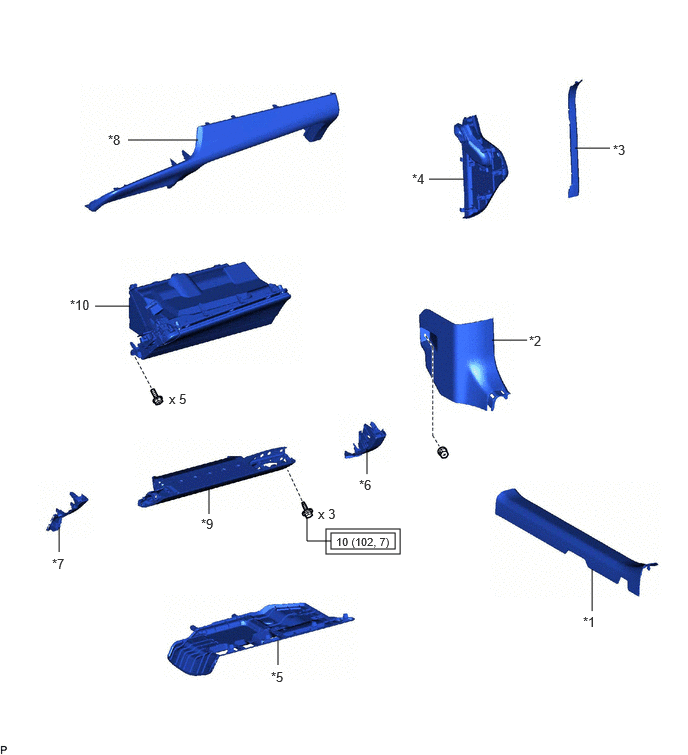

Fig 3: Instrument Panel Safety Pad Replacement Components With Torque Specifications [08/2021 - ] (3 Of 10)
| *1 | FRONT DOOR SCUFF PLATE RH | *2 | COWL SIDE TRIM BOARD RH |
| *3 | FRONT DOOR OPENING TRIM COVER RH | *4 | INSTRUMENT SIDE PANEL RH |
| *5 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | *6 | LOWER INSTRUMENT FINISH SUB PANEL |
| *7 | LOWER INSTRUMENT PANEL LH | *8 | LOWER INSTRUMENT PANEL SUB-ASSEMBLY |
| *9 | LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY | *10 | GLOVE COMPARTMENT DOOR ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

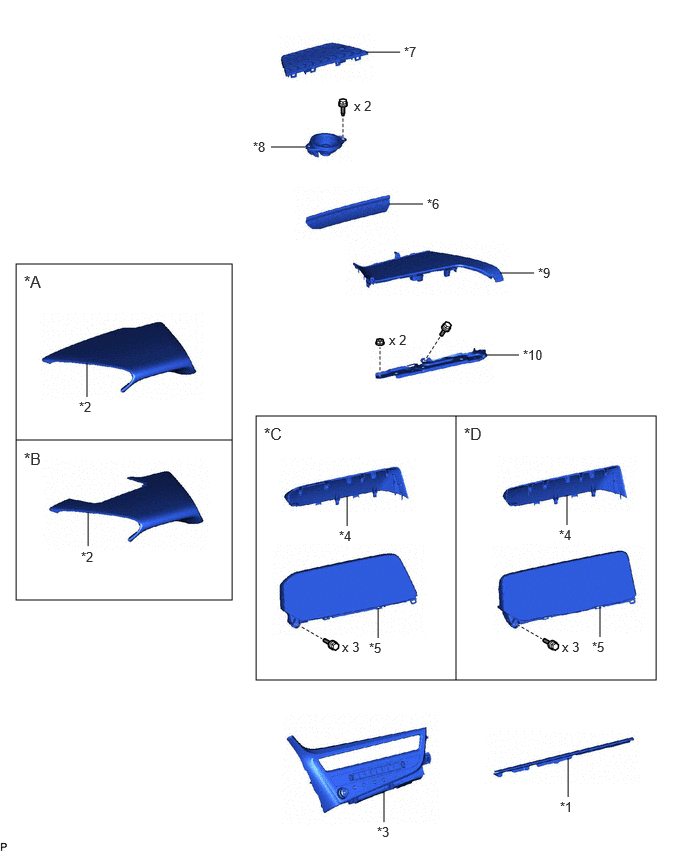

| *A | w/o Headup Display | *B | w/ Headup Display |
| *C | for 8 Inch Display | *D | for 12.3 Inch Display |
| *1 | NO. 2 INSTRUMENT CLUSTER MOULDING | *2 | INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY |
| *3 | AIR CONDITIONING CONTROL ASSEMBLY | *4 | INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY |
| *5 | MULTI-DISPLAY ASSEMBLY WITH CLOCK | *6 | NO. 3 INSTRUMENT CLUSTER FINISH PANEL GARNISH |
| *7 | NO. 1 SPEAKER OPENING COVER ASSEMBLY | *8 | FRONT NO. 3 SPEAKER ASSEMBLY |
| *9 | UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY | *10 | CENTER INSTRUMENT PANEL REINFORCEMENT SUB-ASSEMBLY |
| *1 | NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH | *2 | INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY |
| *3 | COMBINATION METER ASSEMBLY | *4 | FRONT PILLAR GARNISH ASSEMBLY LH |
| *5 | NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY | *6 | FRONT NO. 2 SPEAKER ASSEMBLY |
| *7 | CLIP | *8 | FRONT PILLAR GARNISH CLIP |
| • | Non-reusable part | - | - |

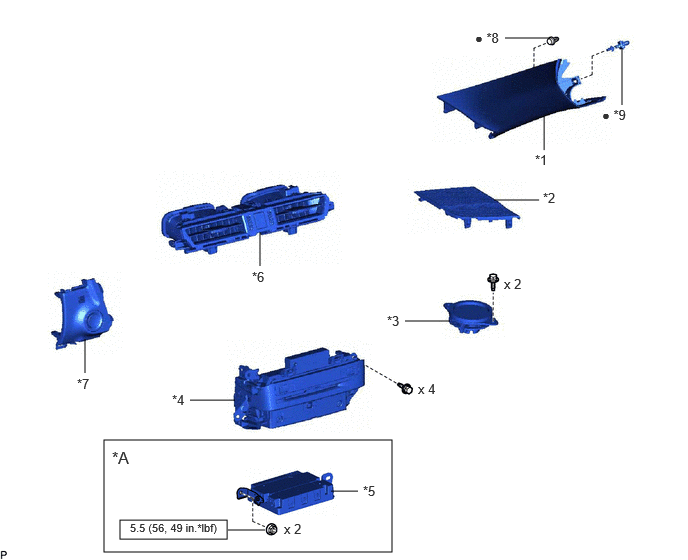

Fig 6: Instrument Panel Safety Pad Replacement Components With Torque Specifications [08/2021 - ] (6 Of 10)
| *A | w/ Manual (SOS) Switch | - | - |
| *1 | FRONT PILLAR GARNISH ASSEMBLY RH | *2 | NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY |
| *3 | FRONT NO. 2 SPEAKER ASSEMBLY | *4 | RADIO RECEIVER ASSEMBLY WITH SWITCH |
| *5 | DCM (TELEMATICS TRANSCEIVER) WITH BRACKET | *6 | NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY |
| *7 | SWITCH BASE | *8 | CLIP |
| *9 | FRONT PILLAR GARNISH CLIP | - | - |
| N*m (kgf*cm, ft.*lbf) : Specified torque | • | Non-reusable part |

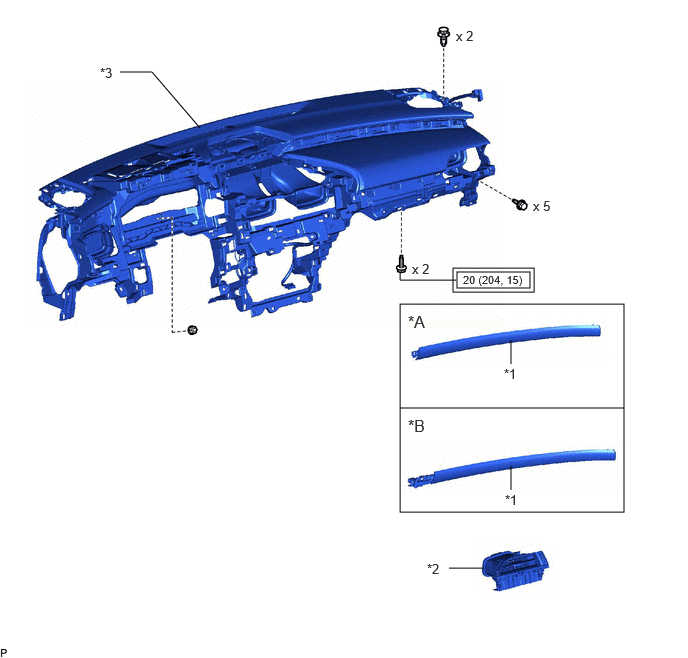

Fig 7: Instrument Panel Safety Pad Replacement Components With Torque Specifications [08/2021 - ] (7 Of 10)
| *A | w/o Ambient Light | *B | w/ Ambient Light |
| *1 | NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH | *2 | NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY |
| *3 | INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
| *1 | DEFROSTER NOZZLE ASSEMBLY | *2 | NO. 1 HEATER TO REGISTER DUCT |
| *3 | NO. 2 HEATER TO REGISTER DUCT | *4 | NO. 2 SIDE DEFROSTER NOZZLE DUCT |
| *5 | NO. 3 HEATER TO REGISTER DUCT | - | - |
| *1 | INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY | *2 | ANTENNA CORD SUB-ASSEMBLY |
| *3 | NAVIGATION ANTENNA ASSEMBLY WITH BRACKET | *4 | NO. 3 INSTRUMENT PANEL WIRE |

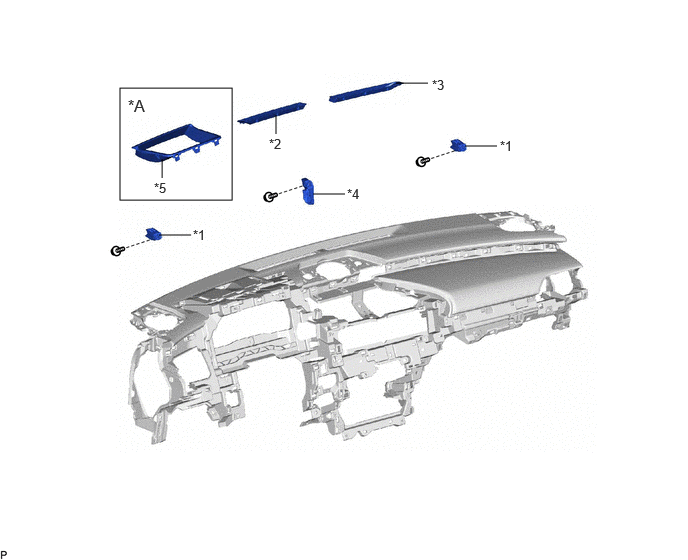

| *A | w/ Headup Display | - | - |
| *1 | NO. 1 INSTRUMENT PANEL PIN | *2 | NO. 1 DEFROSTER NOZZLE GARNISH |
| *3 | NO. 2 DEFROSTER NOZZLE GARNISH | *4 | NO. 5 INSTRUMENT PANEL SAFETY PAD RETAINER |
| *5 | INSTRUMENT CLUSTER FINISH PANEL END | - | - |
