Removal [08/2019 - ]: Procedure

  1. REMOVE REAR CONSOLE UPPER PANEL
    1. Disengage the 3 clips and 2 claws in the direction indicated by the arrow (1).
      GTY951191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull the rear console upper panel in the direction indicated by the arrow (2) to disengage the guide.
    3. Disconnect the connector to remove the rear console upper panel.
  2. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL
    1. Apply protective tape to the area shown in the illustration.
      GTY951193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Disengage the 7 clips to remove the lower No. 2 instrument panel finish panel as shown in the illustration.
      GTY951122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
  3. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
    NOTE:

    Make sure to perform this procedure carefully, otherwise the lower No. 1 instrument panel finish panel may be damaged.

    1. Apply protective tape to the area shown in the illustration.
      GTY641286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Disengage the 2 clips as shown in the illustration.
      GTY950421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
    3. Disengage the clip as shown in the illustration.
      GTY951278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
    4. Disengage the clip as shown in the illustration.
      GTY950757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction

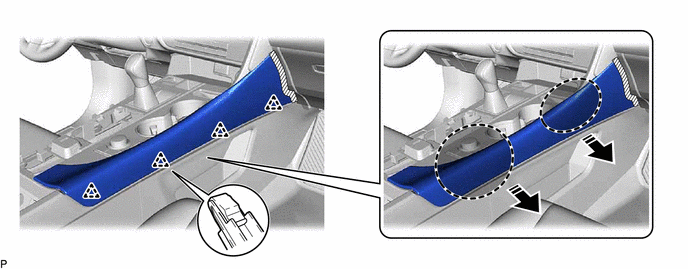

    5. Disengage the 4 clips to remove the lower No. 1 instrument panel finish panel as shown in the illustration.
      GTY951297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
  4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Disengage the claw and disconnect the shift hole cover sub-assembly as shown in the illustration.
      GTY950185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Turn the shift lever knob sub-assembly counterclockwise and remove it.
      GTY950709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT
    1. Apply protective tape to the areas shown in the illustration.
      GTY950248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Disengage the 2 clips as shown in the illustration.
      GTY951004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
    3. Disengage the 4 claws and 5 clips to remove the instrument cluster finish panel ornament as shown in the illustration.
      GTY950368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Order of Removal
  6. REMOVE CONSOLE PANEL SUB-ASSEMBLY
    1. Disengage the clamp.
      GTY950064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Move the shift lever to N.
    3. Remove the 2 screws.
      GTY950345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 4 clips and 5 guides as shown in the illustration.
      GTY950960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    5. Disconnect each connector to remove the console panel sub-assembly.
  7. REMOVE INSTRUMENT PANEL CUP HOLDER ASSEMBLY
    1. Remove the 6 screws and instrument panel cup holder assembly.
      GTY950062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY
    1. Using a moulding remover B, disengage the clip as shown in the illustration.
      GTY951390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Moulding Remover B Here
      Remove in this Direction
    2. Using a moulding remover B, disengage the clip as shown in the illustration.
      GTY950808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Moulding Remover B Here
      Remove in this Direction
    3. Disengage the 4 clips and 4 claws as shown in the illustration.
      GTY950928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
    4. Disconnect each connector.
    5. Disconnect each connector to remove the console rear end panel sub-assembly.
  9. REMOVE CONSOLE BOX ASSEMBLY
    1. Disengage the clamp.
      GTY660555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
      GTY660545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connector.
    4. Remove the 4 bolts and 2 screws.
      GTY660551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect each connector.
    6. Pull the console box assembly as shown in the illustration to disengage the 6 guides and remove the console box assembly.
      GTY674363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
