Reassembly [10/2015 - 03/2018]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [10/2015 - 08/2016] , or refer to PRECAUTION [08/2016 - 12/2017] , or refer to PRECAUTION [12/2017 - 03/2018]

  2. INSTALL REAR DOOR NO. 3 WEATHERSTRIP
    1. Clean the rear door panel.
    2. Remove the release paper from a new rear door No. 3 weatherstrip.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

    3. Engage the claw and install the rear door No. 3 weatherstrip.
      GTY647064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
  3. INSTALL REAR DOOR PANEL PROTECTOR
    1. Clean the surface of the rear door panel.
      1. Remove any remaining double-sided tape from the rear door panel.
      2. Wipe off any adhesive residue with cleaner.
    2. Remove the release paper from a new rear door panel protector.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

    3. Engage the 5 clips and attach the double-sided tape as shown in the illustration.

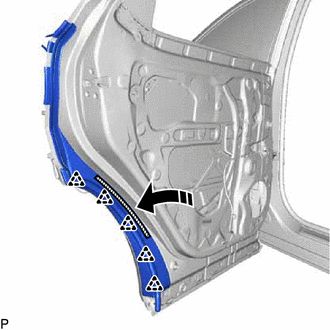

      GTY811797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      Double-sided Tape
      NOTE:

      Make sure to firmly press the double-sided tape portion of the rear door panel protector to securely attach it.

    4. Temporarily install the rear door panel protector as shown in the illustration.

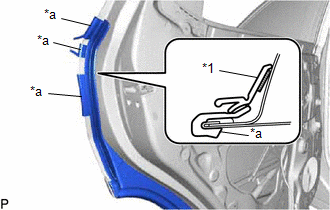

      GTY818834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Double-sided Tape
      *1 Rear Door Panel Protector
    5. Remove the release paper from the rear door panel protector.
      NOTE:

      Make sure that each positioning tab is not moved out of place when removing the release paper.

    6. While holding each positioning tab so that the rear door panel protector does not move, press the double-sided tape portion of the rear door panel protector to attach it.

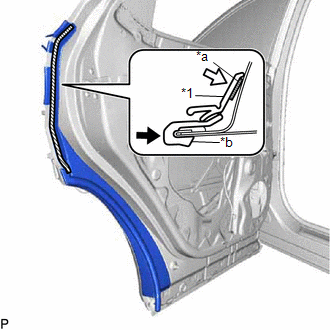

      GTY824276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Double-sided Tape
      *b Positioning Tab
      *1 Rear Door Panel Protector
      Press
      Attach
    7. While pressing the rear door panel protector as shown in the illustration, remove each positioning tab from the rear door panel protector.

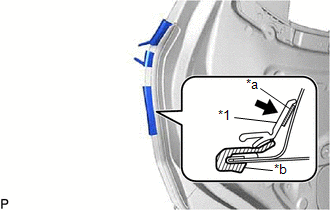

      GTY778891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Double-sided Tape
      *b Positioning Tab
      *1 Rear Door Panel Protector
      Press

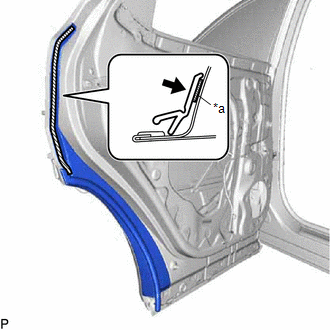

    8. Firmly press the double-sided tape to securely attach it and install the rear door panel protector as shown in the illustration.
      GTY829173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Double-sided Tape
      Press
  4. INSTALL REAR DOOR LOWER OUTSIDE MOLDING SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  5. INSTALL REAR DOOR OUTSIDE MOLDING SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  6. REPAIR INSTRUCTION

    Refer to PROCEDURE - Step 1

  7. INSTALL REAR INNER BLACK OUT TAPE

    Refer to PROCEDURE - Step 2

  8. INSTALL REAR DOOR OUTSIDE STRIPE

    Refer to PROCEDURE - Step 3

  9. INSTALL REAR DOOR LOWER OUTSIDE STRIPE

    Refer to PROCEDURE - Step 5

  10. INSTALL REAR DOOR REAR WINDOW FRAME MOLDING

    Refer to PROCEDURE - Step 1

  11. INSTALL REAR DOOR UPPER WINDOW FRAME MOLDING

    Refer to PROCEDURE - Step 2

  12. INSTALL REAR DOOR WINDOW FRAME MOLDING SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  13. INSTALL REAR DOOR BELT MOLDING ASSEMBLY

    Refer to PROCEDURE - Step 1

  14. INSTALL REAR DOOR PANEL CUSHION
    1. Engage the claw to install the rear door panel cushion.
      GTY623307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY
    1. Apply MP grease to the sliding parts of the rear door outside handle frame sub-assembly.

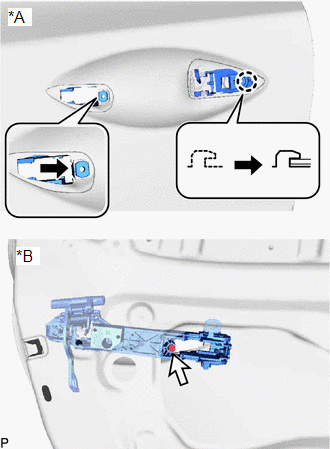

    2. Engage the claw as shown in the illustration.
      GTY676253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Outside
      *B Inside
    3. Using a T30 "TORX" socket wrench, install the rear door outside handle frame sub-assembly with the screw.

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

  16. INSTALL REAR DOOR REAR OUTSIDE HANDLE PAD

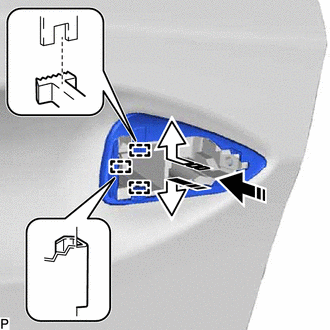

    1. Engage the 3 guides as shown in the illustration.
      GTY676017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
    2. Engage the claw to install the rear door rear outside handle pad.
      GTY623504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL REAR DOOR FRONT OUTSIDE HANDLE PAD
    1. Engage the 3 claws to install the rear door front outside handle pad.
      GTY623502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL REAR DOOR OUTSIDE HANDLE COVER
    1. Engage the claw.
      GTY623321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a T30 "TORX" socket wrench, install the rear door outside handle cover with the screw.

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

  19. INSTALL REAR DOOR OUTSIDE HANDLE ASSEMBLY
    1. Insert the front end of the rear door outside handle assembly into the rear door outside handle frame sub-assembly.

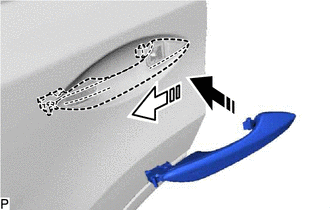

      GTY633624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
    2. Insert the rear end of the rear door outside handle assembly into the rear door outside handle frame sub-assembly, then slide the rear door outside handle assembly toward the front of the vehicle to install it.
    3. Move the lever as shown in the illustration and engage the 2 claws to lock the rear door outside handle assembly.

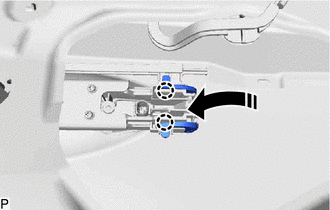

      GTY662201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Engage in this Direction
    4. Connect the connector.

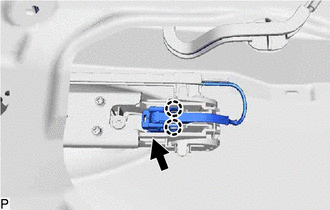

      GTY649290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Engage the 2 claws.
  20. INSTALL REAR DOOR LOCK ASSEMBLY

    Refer to PROCEDURE - Step 5

  21. INSTALL REAR DOOR WINDOW REGULATOR ASSEMBLY
    1. Apply MP grease to the sliding parts of the rear door window regulator assembly.
    2. Temporarily install the temporary bolt to the rear door window regulator assembly.
    3. Temporarily install the rear door window regulator assembly with the 5 bolts.
      GTY658432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Temporary Bolt
    4. Tighten the temporary bolt and 5 bolts to install the rear door window regulator assembly.

      HINT:

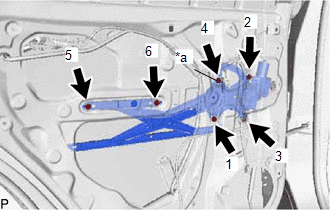

      Tighten the bolts in the order shown in the illustration.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    5. Engage the 2 claws to install the rear door No. 2 service hole cover.
      GTY649281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL REAR DOOR FRAME GARNISH
    1. Engage the 3 claws to install the rear door frame garnish.
      GTY680617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL REAR DOOR GLASS SUB-ASSEMBLY
    1. Connect the rear power window regulator switch assembly.
    2. Connect the cable to the negative (-) auxiliary battery terminal.
    3. Turn the power switch on (IG).
    4. Move the rear door window regulator assembly so that the door glass bolt holes can be seen.
    5. Turn the power switch off.
    6. Disconnect the cable from the negative (-) auxiliary battery terminal.
    7. Disconnect the rear power window regulator switch assembly.
    8. Insert the rear door glass sub-assembly into the rear door panel as shown in the illustration.

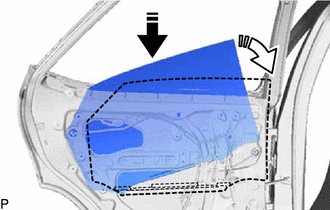

      GTY649072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
    9. Install the rear door glass sub-assembly with the 2 bolts.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      GTY623327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Install the hole plug.
      GTY623524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL REAR DOOR REAR GUIDE SEAL
    1. Install the rear door rear guide seal with the 2 screws.
      GTY623332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY
    1. Install the rear door window division bar sub-assembly with the 2 bolts and 2 screws.

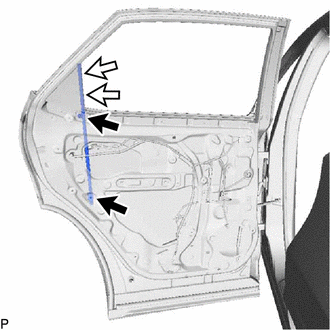

      GTY629442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut

      Bolt

      Torque: 6.2 N*m (63 kgf*cm, 55 in.*lbf)

  26. INSTALL REAR DOOR GLASS RUN
    1. Install the rear door glass run.
      GTY623428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL REAR DOOR FRONT BELT SEAL
    1. Install a new rear door front belt seal.
      GTY674900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL REAR DOOR WEATHERSTRIP
    1. Clean the rear door panel sub-assembly.
    2. Remove the release paper from a new rear door weatherstrip.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

    3. Engage the 25 clips to install the rear door weatherstrip.
      GTY617424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Double-sided Tape
  29. INSTALL CURTAIN HOOK (w/ Rear Door Sunshade)

    HINT:

    Use the same procedure for both curtain hooks.

    1. Engage the 2 claws to install the curtain hook.
      GTY639036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the pin as shown in the illustration.

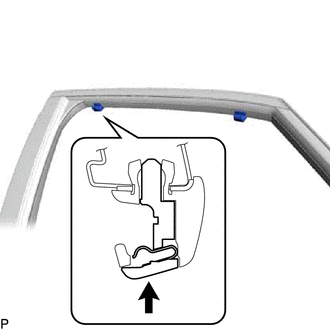

      GTY649364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL REAR DOOR CHECK ASSEMBLY
    1. Apply MP grease to the sliding parts of the rear door check assembly.
    2. Clean the bolt hole in the vehicle body.
    3. Clean the threads of the bolt.
    4. Apply adhesive to the threads of the bolt.

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

    5. Install the rear door check assembly with the 2 nuts and bolt.
      GTY669514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Nut
      Bolt

      Bolt

      Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)

      Nut

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  31. INSTALL REAR DOOR SERVICE HOLE COVER
    1. Engage the 9 clips to install the rear door service hole cover.
      GTY623439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the clamp.
    3. Connect the connector.
  32. INSTALL REAR DOOR NO. 2 TRIM BRACKET
    1. Install the rear door No. 2 trim bracket with the 2 screws.
      GTY623438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL REAR NO. 2 SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 2

  34. INSTALL REAR SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 1

  35. INSTALL REAR DOOR INNER GLASS WEATHERSTRIP
    1. Install the rear door inner glass weatherstrip as shown in the illustration.

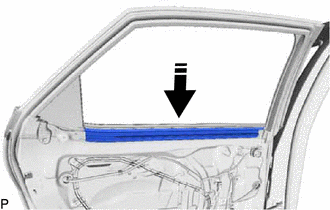

      GTY674218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  36. INSTALL REAR DOOR LOCK CONTROL KNOB BEZEL
    1. Engage the 2 claws to install the rear door lock control knob bezel as shown in the illustration.

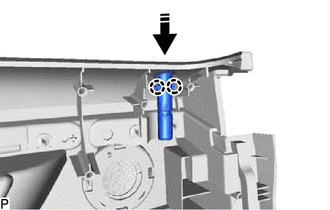

      GTY624051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  37. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY
    1. Engage the 2 claws as shown in the illustration to connect the rear door inside locking cable assembly to the rear door trim board sub-assembly.

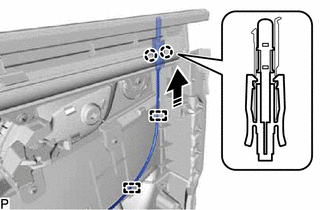

      GTY672591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Engage the 2 clamps.
    3. Connect the rear door lock remote control cable assembly to the rear door inside handle sub-assembly as shown in the illustration.

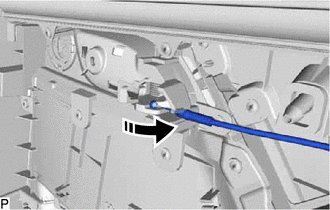

      GTY685639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    4. Connect each connector.
    5. w/o Rear Door Sunshade:
      1. Engage the 4 claws and guide.
        GTY617631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. w/ Rear Door Sunshade:
      1. Engage the 2 claws and guide.
        GTY617632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Engage the 10 clips to install the rear door trim board sub-assembly.
      GTY617628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Install the 3 screws.
      GTY649302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 3

  39. INSTALL REAR DOOR ARMREST COVER
    1. Install the rear door armrest cover.
      GTY623454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL
    1. Connect the connector.
    2. Engage the 2 claws to install the rear power window regulator switch assembly with rear door upper armrest base panel.

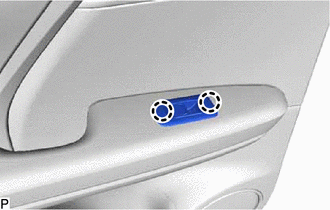

      GTY649292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG
    1. Engage the 3 claws to install the rear door inside handle bezel plug.

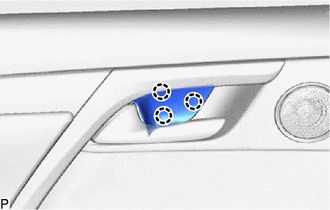

      GTY649289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  43. INSTALL REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 54 [10/2015 - 12/2017] , or refer to PROCEDURE - Step 53 [12/2017 - ]

  44. INSTALL DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 56 [10/2015 - 12/2017] , or refer to PROCEDURE - Step 55 [12/2017 - ]

  45. INITIALIZE POWER WINDOW CONTROL SYSTEM

    Refer to INITIALIZATION [10/2015 - ]

  46. INSPECT POWER WINDOW OPERATION

    Refer to OPERATION CHECK [10/2015 - ]
