Removal [03/2018 - ]: Procedure

  1. REMOVE BACK WINDOW UPPER PANEL TRIM (w/o Rear No. 2 Seat)

    See step  [03/2018 - 08/2019], or see step  [08/2019 - ]

  2. REMOVE BACK WINDOW UPPER PANEL TRIM (w/ Rear No. 2 Seat)

    See step  [03/2018 - 08/2019], or see step  [08/2019 - ]

  3. REMOVE BACK DOOR TRIM COVER LH (w/o Rear No. 2 Seat)

    See step  [03/2018 - 08/2019], or see step  [08/2019 - ]

  4. REMOVE BACK DOOR TRIM COVER LH (w/ Rear No. 2 Seat)

    See step  [03/2018 - 08/2019], or see step  [08/2019 - ]

  5. REMOVE BACK DOOR TRIM COVER RH

    HINT:

    Use the same procedure as for the LH side.

  6. REMOVE BACK DOOR LOCK COVER (w/o Rear No. 2 Seat)

    See step  [03/2018 - 08/2019], or see step  [08/2019 - ]

  7. REMOVE BACK DOOR LOCK COVER (w/ Rear No. 2 Seat)

    See step  [03/2018 - 08/2019], or see step  [08/2019 - ]

  8. REMOVE BACK DOOR TRIM BASE

    See step  [03/2018 - 08/2019], or see step  [08/2019 - ]

  9. REMOVE DOOR PULL HANDLE

    See step  [03/2018 - 08/2019], or see step  [08/2019 - ]

  10. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 3 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 3 [08/2019 - ]

  11. REMOVE BACK DOOR TRIM PANEL ASSEMBLY (w/o Rear No. 2 Seat)

    See step  [03/2018 - 08/2019], or see step  [08/2019 - ]

  12. REMOVE BACK DOOR TRIM PANEL ASSEMBLY (w/ Rear No. 2 Seat)

    See step  [03/2018 - 08/2019], or see step  [08/2019 - ]

  13. REMOVE POWER BACK DOOR WARNING BUZZER
    1. Disconnect the connector.

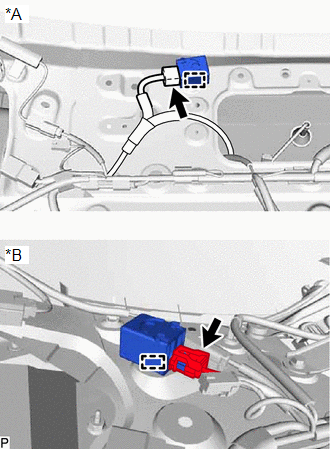

      GTY790046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Rear No. 2 Seat
      *B w/ Rear No. 2 Seat
    2. Disengage the clamp to remove the power back door warning buzzer.
