Components [10/2015 - 08/2016]

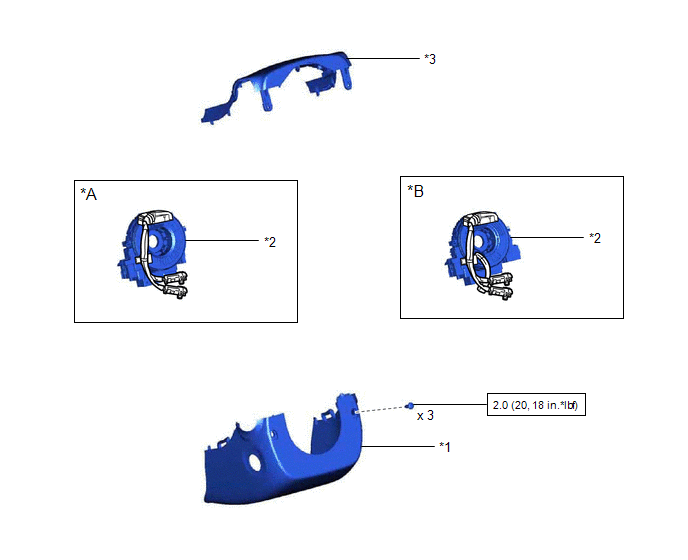

Fig 1: Spiral Cable Replacement Components With Torque Specification [10/2015 - 08/2016] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/o Heated Steering Wheel System and Pre-collision System	*B	w/ Heated Steering Wheel System or Pre-collision System
*1	LOWER STEERING COLUMN COVER	*2	SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
*3	UPPER STEERING COLUMN COVER	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

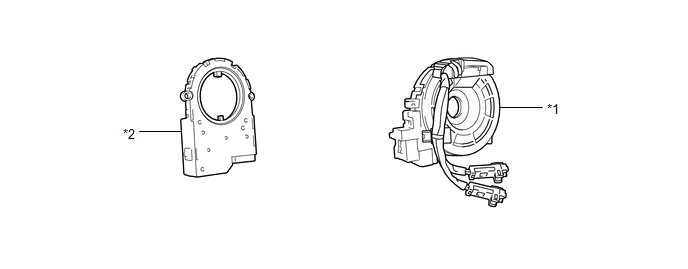

Fig 2: Spiral Cable Replacement Components [10/2015 - 08/2016] (2 Of 2)

SPIRAL CABLE SUB-ASSEMBLY

STEERING SENSOR
