Components [08/2016 - ]

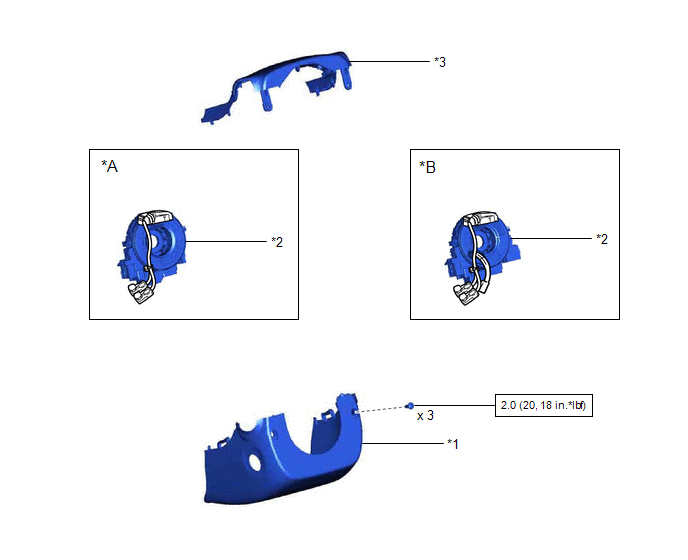

Fig 1: Spiral Cable Replacement Components With Torque Specifications [08/2016 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Heated Steering Wheel System and Pre-collision System	*B	w/ Heated Steering Wheel System or Pre-collision System
*1	LOWER STEERING COLUMN COVER	*2	SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
*3	UPPER STEERING COLUMN COVER	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

Fig 2: Spiral Cable Replacement Components [08/2016 - ] (2 Of 2)

SPIRAL CABLE SUB-ASSEMBLY

STEERING SENSOR
