Removal [08/2016 - 08/2019]: Procedure

  1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    Refer to PROCEDURE - Step 1 [10/2015 - 03/2018] , or refer to PROCEDURE - Step 1 [03/2018 - 08/2019]

  2. REMOVE SERVICE PLUG GRIP

    Refer to REMOVAL [08/2016 - 12/2017] , or refer to REMOVAL [12/2017 - 03/2018] , or refer to REMOVAL [03/2018 - 08/2019]

  3. CHECK TERMINAL VOLTAGE
    1. Remove the air cleaner assembly with air cleaner hose.

      Refer to REMOVAL [10/2015 - ]

    2. Remove the No. 3 inverter bracket.

      Refer to PROCEDURE - Step 6 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 6 [12/2017 - 08/2019]

    3. Remove the No. 6 inverter bracket.

      Refer to PROCEDURE - Step 7 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 7 [12/2017 - 08/2019]

    4. Remove the inverter terminal cover.

      Refer to PROCEDURE - Step 10 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 10 [12/2017 - 08/2019]

    5. Check the terminal voltage.

      Refer to PROCEDURE - Step 11 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 11 [12/2017 - 08/2019]

    6. Install the inverter terminal cover.

      Refer to PROCEDURE - Step 16

    7. Install the No. 6 inverter bracket.

      Refer to PROCEDURE - Step 19

    8. Install the No. 3 inverter bracket.

      Refer to PROCEDURE - Step 20

    9. Install the air cleaner assembly with air cleaner hose.

      Refer to INSTALLATION [10/2015 - ]

  4. REMOVE RADIATOR ASSEMBLY

    Refer to REMOVAL [08/2016 - ]

  5. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY
    1. Remove the bolt and disconnect the discharge hose sub-assembly from the compressor with motor assembly.

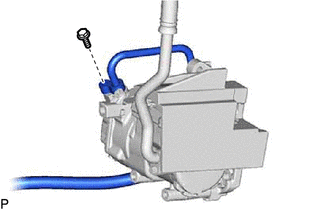

      GTY655565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the discharge hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

  6. DISCONNECT SUCTION HOSE SUB-ASSEMBLY
    1. Remove the bolt and disconnect the suction hose sub-assembly from the compressor with motor assembly.

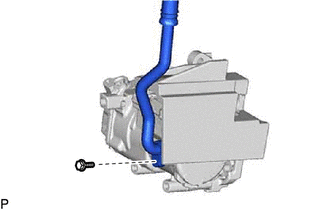

      GTY655563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the suction hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

  7. REMOVE COMPRESSOR WITH MOTOR ASSEMBLY
    1. Remove the bolt and disconnect the bracket.

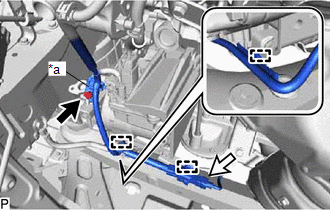

      GTY635100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bracket
    2. Disconnect the connector.
    3. Disengage the 3 clamps.
    4. Using a screwdriver, slide the green-colored lock of the connector (A) as shown in the illustration to release it and disconnect the connector.

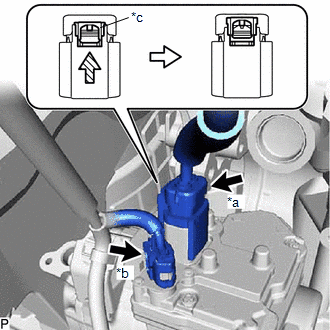

      GTY631849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Connector (A)
      *b Connector (B)
      *c Green-colored Lock
      WARNING:

      Make sure to wear insulating gloves.

      NOTE:

      Insulate the disconnected terminals and connector with insulating tape.

    5. Disconnect the connector (B).
    6. Remove the 3 bolts and disconnect the bracket.

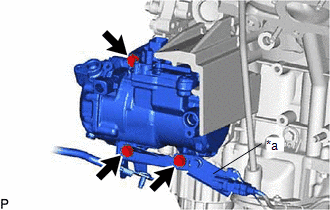

      GTY616759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bracket
    7. Remove the compressor with motor assembly.
