Removal [03/2018 - 08/2019]: Procedure
- PRECAUTION NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Refer to PRECAUTION [03/2018 - 08/2019]
- REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)
Refer to PROCEDURE - Step 2
- REMOVE REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)
Refer to PROCEDURE - Step 4
- REMOVE REAR NO. 4 FLOOR BOARD (w/ Rear No. 2 Seat)
Refer to PROCEDURE - Step 3
- REMOVE BATTERY SERVICE HOLE COVER (w/ Rear No. 2 Seat)
Refer to PROCEDURE - Step 4
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [03/2018 - 08/2019]
- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 23
- REMOVE INJECTOR DRIVER

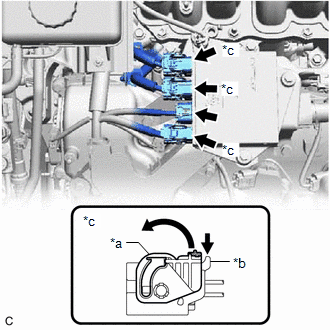

- Push the lock and move the lock lever of each injector driver connector (with lock) as shown in the illustration and disconnect the 3 injector driver connectors (with lock).
*a Lock Lever *b Lock *c Injector Driver Connector (with Lock) - Disconnect the injector driver connector.

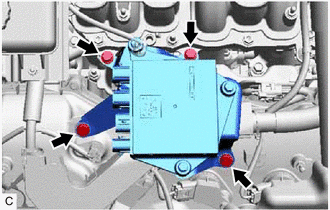

- Remove the 4 bolts and injector driver from the intake manifold and cylinder head cover sub-assembly LH.NOTE:
Be careful not to drop or strike the injector driver.
- Push the lock and move the lock lever of each injector driver connector (with lock) as shown in the illustration and disconnect the 3 injector driver connectors (with lock).
