Removal [08/2016 - 08/2019]: Procedure

  1. REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

    Refer to REMOVAL [08/2016 - 08/2019]

  2. REMOVE V-RIBBED BELT

    Refer to PROCEDURE - Step 3

  3. REMOVE WATER PUMP PULLEY
    1. Using a screwdriver or equivalent with its tip wrapped in protective tape, hold the water pump pulley.
      GTY948837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Hold
      *c Turn
    2. Remove the 4 bolts and water pump pulley.
  4. REMOVE ENGINE WATER PUMP ASSEMBLY

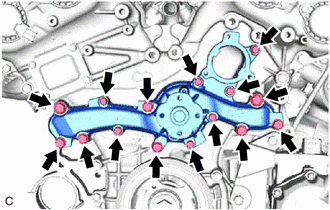

    1. Remove the 15 bolts, engine water pump assembly and water pump gasket.
      GTY668739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
