Installation [10/2015 - ]: Procedure

  1. INSTALL FOLD SEAT SWITCH ASSEMBLY (for Luggage Compartment)
    1. Connect the connector.
    2. Engage the 4 claws to install the fold seat switch assembly.

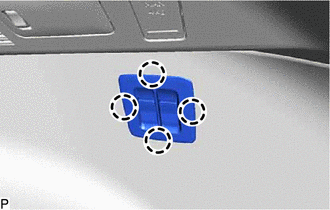

      GTY659750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR POWER SEAT SWITCH RH (for 60/40 Split Seat Type RH Side)
    1. Engage the 2 claws to install the rear power seat switch RH as shown in the illustration.

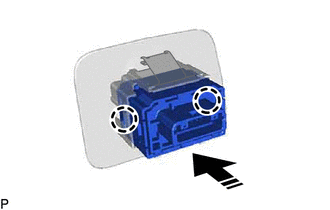

      GTY670037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. INSTALL POWER SEAT SWITCH ASSEMBLY (for 60/40 Split Seat Type RH Side)
    1. Connect the connector.
    2. Engage the 2 claws to install the power seat switch assembly as shown in the illustration.

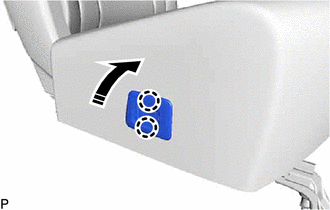

      GTY618783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  4. INSTALL REAR POWER SEAT SWITCH LH (for 60/40 Split Seat Type LH Side)

    HINT:

    Use the same procedure as for the RH side.

  5. INSTALL POWER SEAT SWITCH ASSEMBLY (for 60/40 Split Seat Type LH Side)

    HINT:

    Use the same procedure as for the RH side.
