Removal [08/2019 - ]: Procedure

  1. REMOVE HEADLIGHT WASHER COVER LH

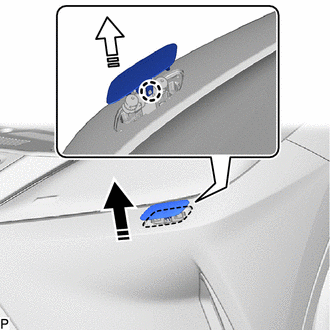

    1. Disengage the claw as indicated by the arrows, in the order shown in the illustration to remove the headlight washer cover LH.
      GTY961137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  2. REMOVE HEADLIGHT WASHER COVER RH

    HINT:

    Use the same procedure as for the LH side.
