Removal [03/2018 - 08/2019]: Procedure

  1. REMOVE REAR NO. 2 SEAT ASSEMBLY

    Refer to REMOVAL [03/2018 - ]

  2. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 13

  3. REMOVE REAR DOOR INSIDE SCUFF PLATE

    Refer to PROCEDURE - Step 14

  4. REMOVE REAR SEAT OUTER TRACK BRACKET COVER LH (for LH Side)

    Refer to PROCEDURE - Step 8

  5. REMOVE REAR SEAT OUTER TRACK BRACKET COVER RH (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 9

  6. REMOVE FRONT DECK SIDE TRIM COVER

    Refer to PROCEDURE - Step 27

  7. REMOVE REAR SEAT SIDE GARNISH

    Refer to PROCEDURE - Step 28

  8. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for LH Side)

    Refer to PROCEDURE - Step 26

  9. REMOVE ROPE HOOK ASSEMBLY (for LH Side)

    Refer to PROCEDURE - Step 30

  10. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for LH Side)

    Refer to PROCEDURE - Step 1

  11. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for RH Side)

    Refer to PROCEDURE - Step 34

  12. REMOVE ROPE HOOK ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  13. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 2

  14. REMOVE NO. 2 AIR CONDITIONING CONTROL ASSEMBLY (for LH Side)

    Refer to PROCEDURE - Step 1

  15. REMOVE COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR (for LH Side)

    Refer to PROCEDURE - Step 1

  16. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 34

  17. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 43

  18. REMOVE REAR LIGHT COVER

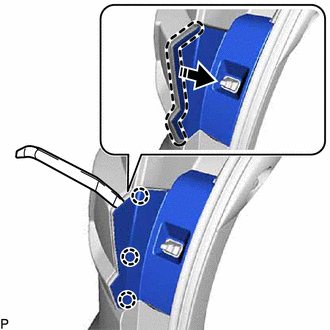

    1. Using a molding remover, disengage the 3 claws as shown in the illustration.
      GTY611718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Molding Remover Here
      Remove in this Direction

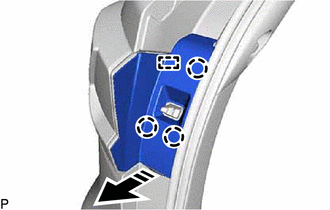

    2. Disengage the 3 claws and guide to remove the rear light cover as shown in the illustration.
      GTY826696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  19. REMOVE REAR COMBINATION LIGHT ASSEMBLY

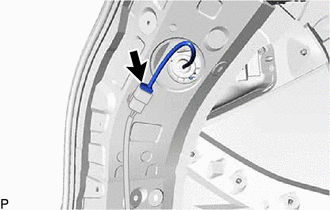

    1. Disconnect the connector.
      GTY834919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

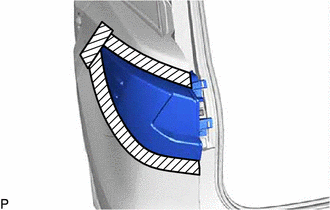

    2. Apply protective tape around the rear combination light assembly as shown in the illustration.
      GTY813511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

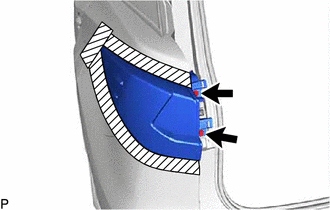

    3. Remove the 2 screws.
      GTY810030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

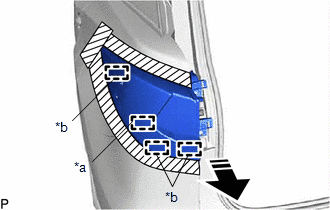

    4. Pull the rear combination light assembly toward the rear of the vehicle as shown in the illustration to disengage the pin and 3 guides and separate the rear combination light assembly.
      NOTE:

      To prevent the rear combination light assembly from falling when disengaging the pin, lightly hold the rear combination light assembly.

      GTY776240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin
      *b Guide
      Remove in this Direction

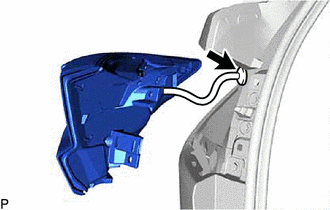

    5. Disengage the grommet to remove the rear combination light assembly.
      GTY810029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
