Parts Location [08/2019 - ]: Illustration

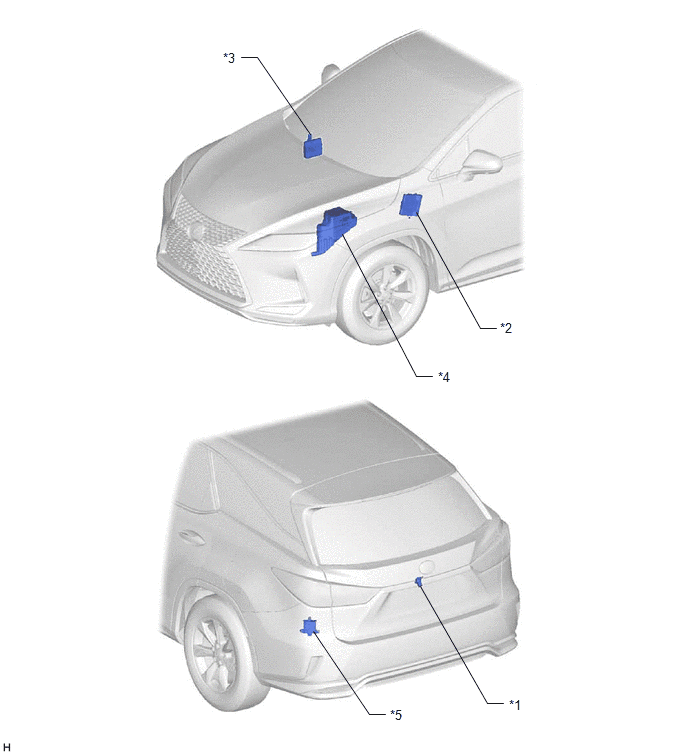

w/o Rear No. 2 Seat

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR TELEVISION CAMERA ASSEMBLY	*2	HYBRID VEHICLE CONTROL ECU ASSEMBLY
*3	SKID CONTROL ECU ASSEMBLY	*4	ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 5 FUSE
*5	BLIND SPOT MONITOR SENSOR LH (MASTER) (w/ Blind Spot Monitor System)	-	-

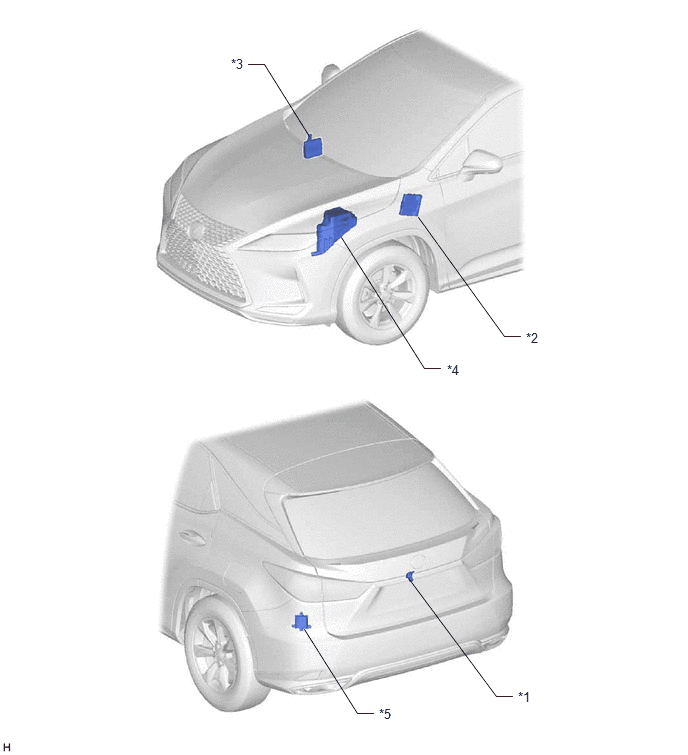

w/ Rear No. 2 Seat

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR TELEVISION CAMERA ASSEMBLY	*2	HYBRID VEHICLE CONTROL ECU ASSEMBLY
*3	SKID CONTROL ECU ASSEMBLY	*4	ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 5 FUSE
*5	BLIND SPOT MONITOR SENSOR LH (MASTER) (w/ Blind Spot Monitor System)	-	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

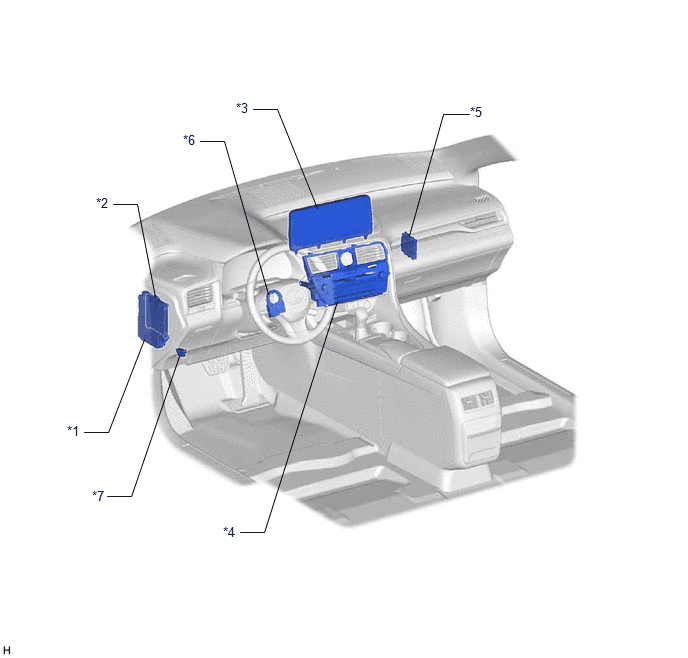

*1	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-DCC NO. 1 FUSE - BKUP LP RELAY	*2	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3	MULTI-DISPLAY ASSEMBLY	*4	RADIO RECEIVER ASSEMBLY
*5	CLEARANCE WARNING ECU ASSEMBLY	*6	STEERING SENSOR
*7	DLC3	-	-
