DTC B15C3: Speaker Output Short [03/2018 - 08/2019]: Wiring Diagram

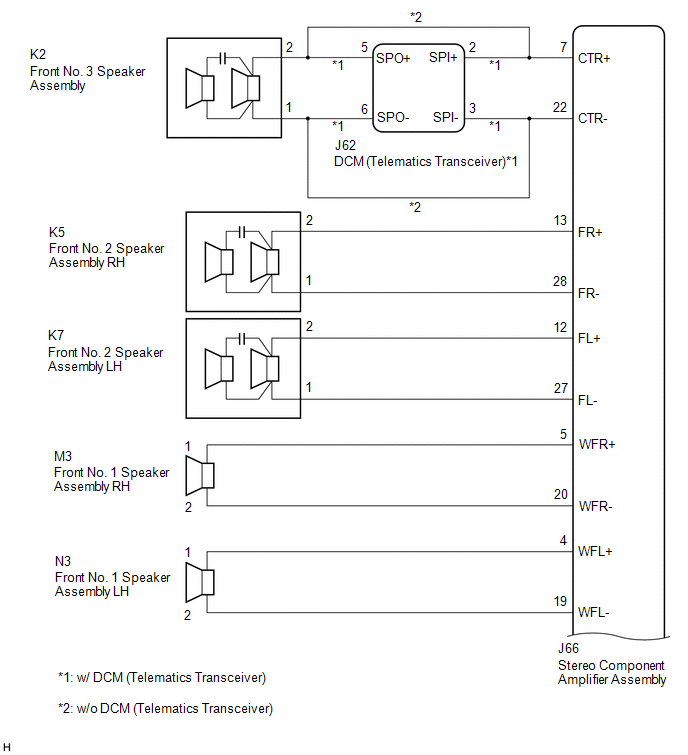

for 9 Speakers

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

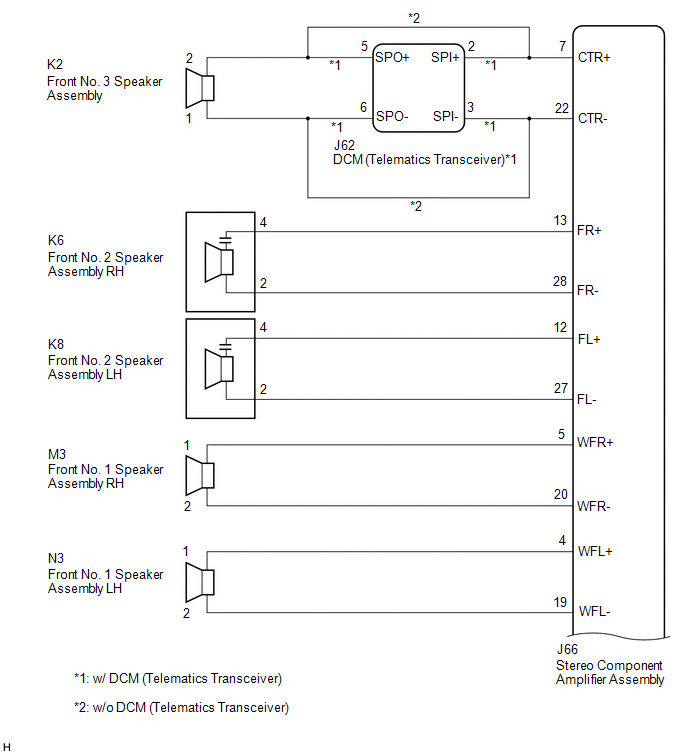

for 12 Speakers

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

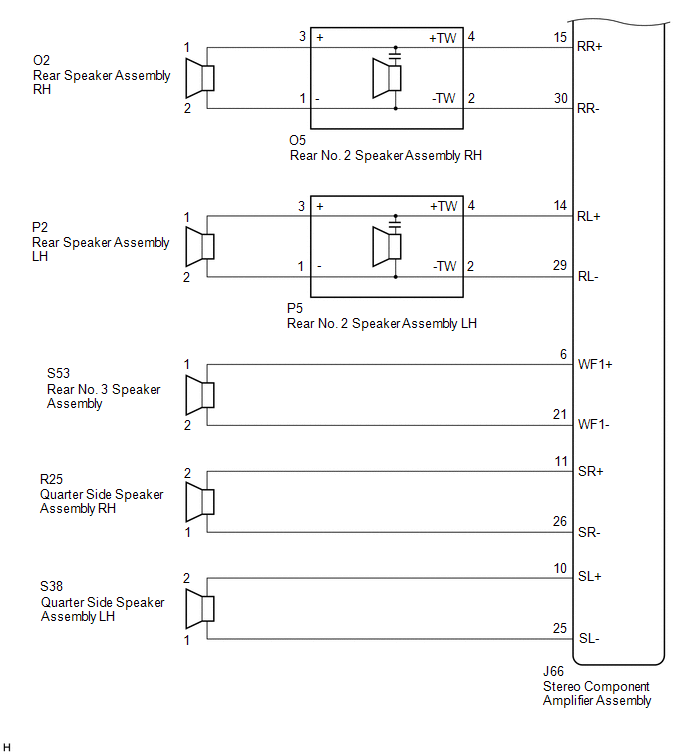

for 12 Speakers without Rear No. 2 Seat

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

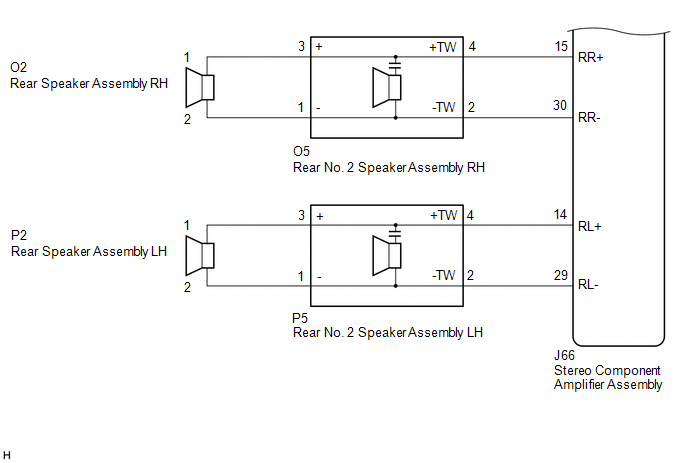

for 12 Speakers with Rear No. 2 Seat

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

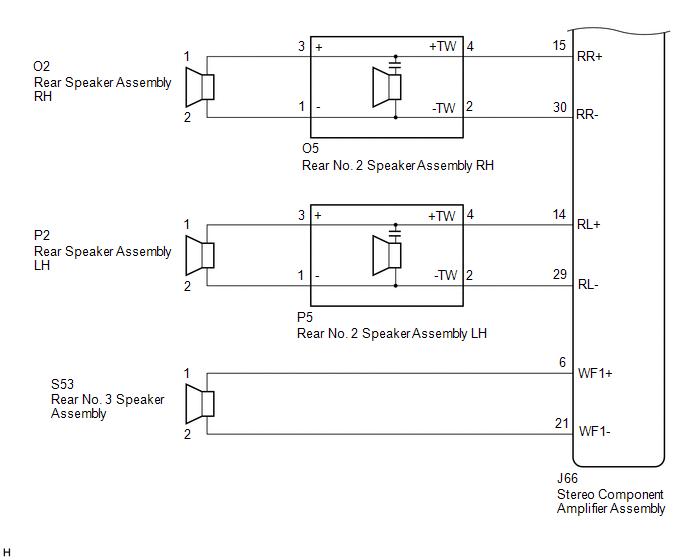

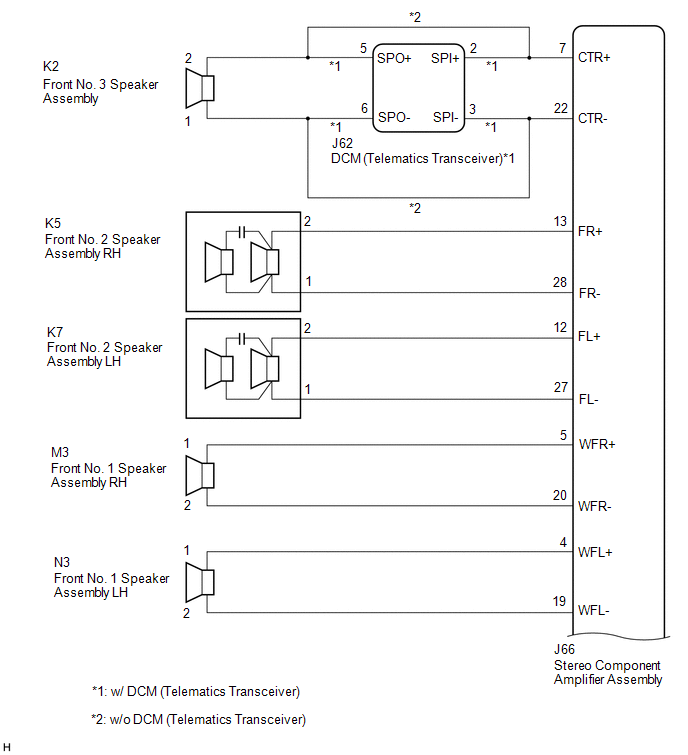

for 15 Speakers

for 15 Speakers without Rear No. 2 Seat

for 15 Speakers with Rear No. 2 Seat
