Removal [10/2015 - ]: Procedure

  1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 5 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 5 [08/2016 - 03/2018] , or refer to PROCEDURE - Step 7 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 7 [08/2019 - ]

  2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL

    Refer to PROCEDURE - Step 6 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 6 [08/2016 - 03/2018] , or refer to PROCEDURE - Step 8 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 8 [08/2019 - ]

  3. REMOVE REAR DOOR ARMREST COVER

    Refer to PROCEDURE - Step 7 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 7 [08/2016 - 03/2018] , or refer to PROCEDURE - Step 9 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 9 [08/2019 - ]

  4. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  5. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 9 [08/2016 - 03/2018] , or refer to PROCEDURE - Step 11 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 11 [08/2019 - ]

  6. REMOVE REAR SPEAKER ASSEMBLY
    NOTE:

    Do not touch the speaker cone.

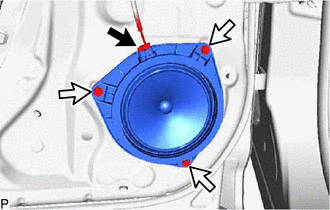

    1. Disconnect the connector.
      GTY645915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 screws.

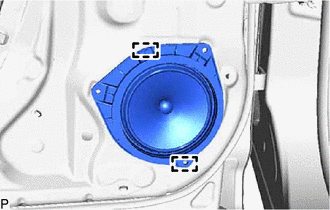

    3. Disengage the 2 guides to remove the rear speaker assembly.
      GTY645913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR NO. 2 SPEAKER ASSEMBLY
    NOTE:

    Do not touch the speaker cone.

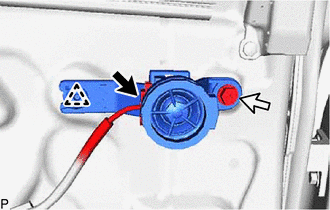

    1. Disconnect the connector.
      GTY645912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the screw.
    3. Disengage the clip to remove the rear No. 2 speaker assembly.
