Parts Location [10/2015 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

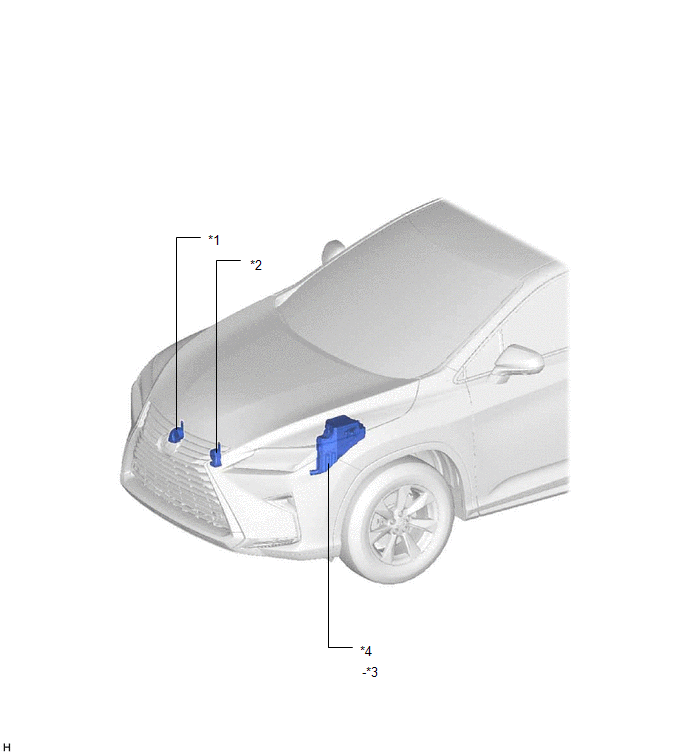

*1	HIGH PITCHED HORN ASSEMBLY	*2	LOW PITCHED HORN ASSEMBLY
*3	HORN RELAY	*4	ENGINE ROOM RELAY BLOCK - HORN FUSE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

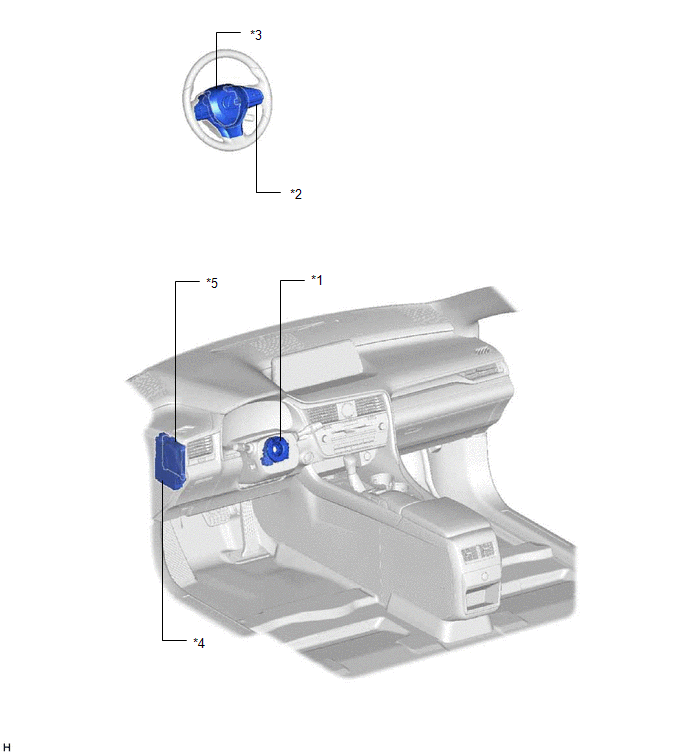

*1	SPIRAL CABLE SUB-ASSEMBLY	*2	STEERING PAD SWITCH ASSEMBLY
*3	HORN BUTTON ASSEMBLY	*4	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
*5	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	-	-
