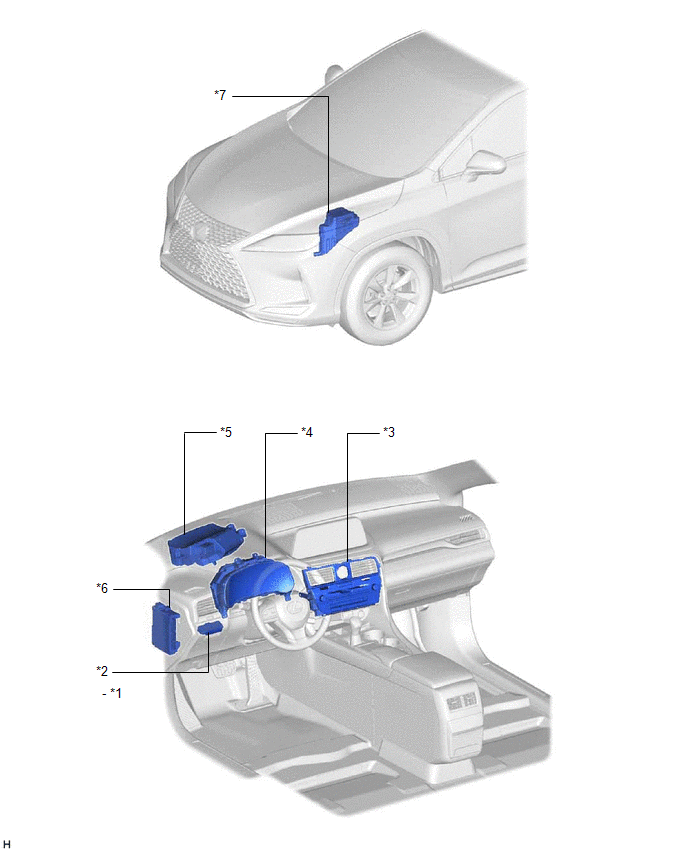

Parts Location [08/2019 - ]: Illustration
| *1 | HEADUP DISPLAY SWITCH ASSEMBLY | *2 | INTEGRATION CONTROL AND PANEL ASSEMBLY |
| *3 | RADIO RECEIVER ASSEMBLY | *4 | COMBINATION METER ASSEMBLY |
| *5 | HEADUP DISPLAY (METER MIRROR SUB-ASSEMBLY) | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-DCC NO. 2 FUSE |
| *7 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 8 FUSE |
- | - |
