Parts Location [10/2015 - 08/2019]: Illustration

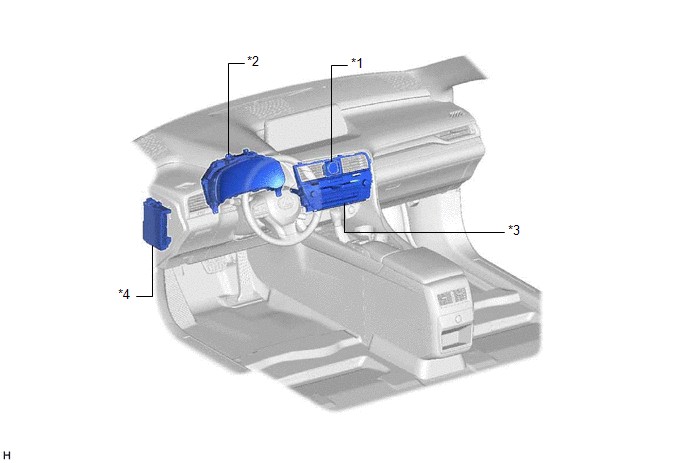

GTY663144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CLOCK ASSEMBLY *2 COMBINATION METER ASSEMBLY
*3 RADIO RECEIVER ASSEMBLY *4 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-DCC NO. 2 FUSE
- ECU-ACC FUSE
- PANEL FUSE
