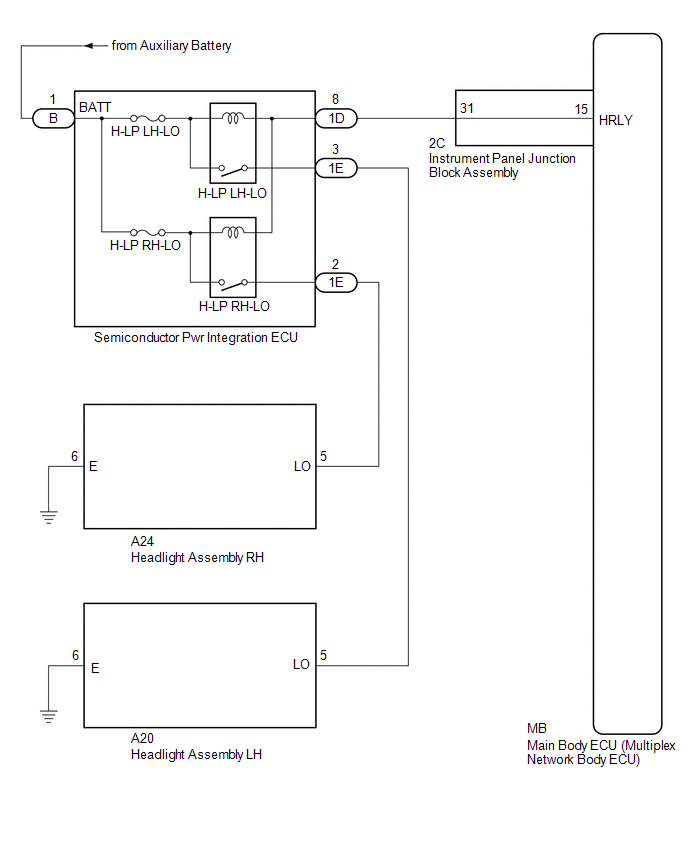

Low Beam Headlight Circuit [10/2015 - 08/2019]: Wiring Diagram

GTY664968

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
