Components [10/2015 - ]

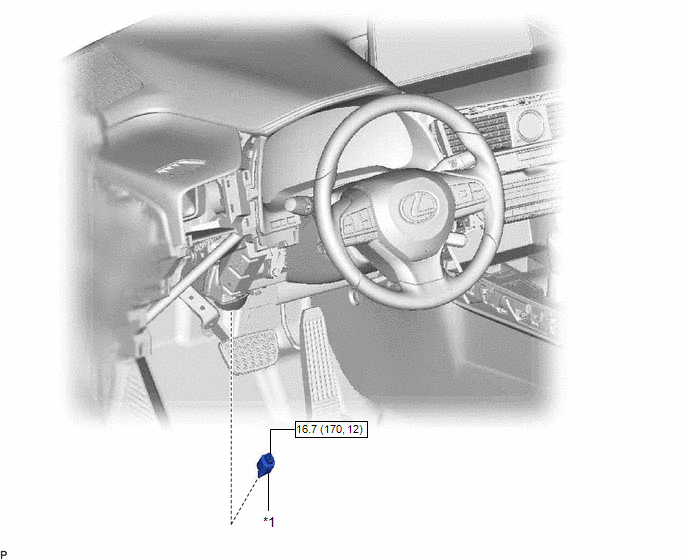

Fig 1: Stop Light Switch Replacement Components With Torque Specifications
GTY678435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 STOP LIGHT SWITCH ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
