Headlight Ecu
>>
Components [08/2019 - ]
Components [08/2019 - ]

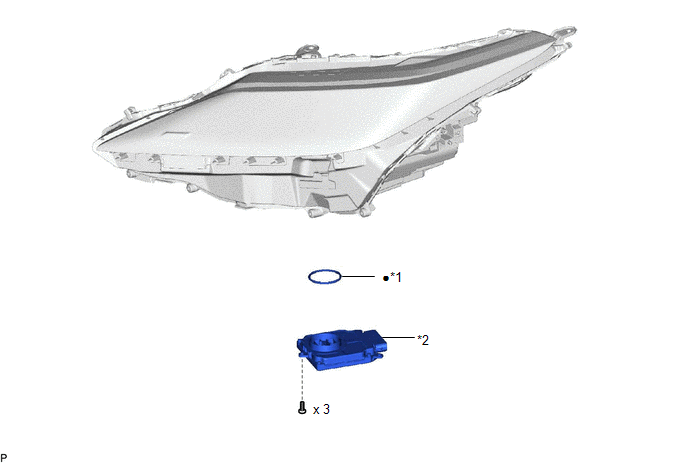

Fig 1: Headlight ECU Replacement Components [08/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
HEADLIGHT GASKET
*2
NO. 1 HEADLIGHT ECU SUB-ASSEMBLY
•
Non-reusable part
-
-
